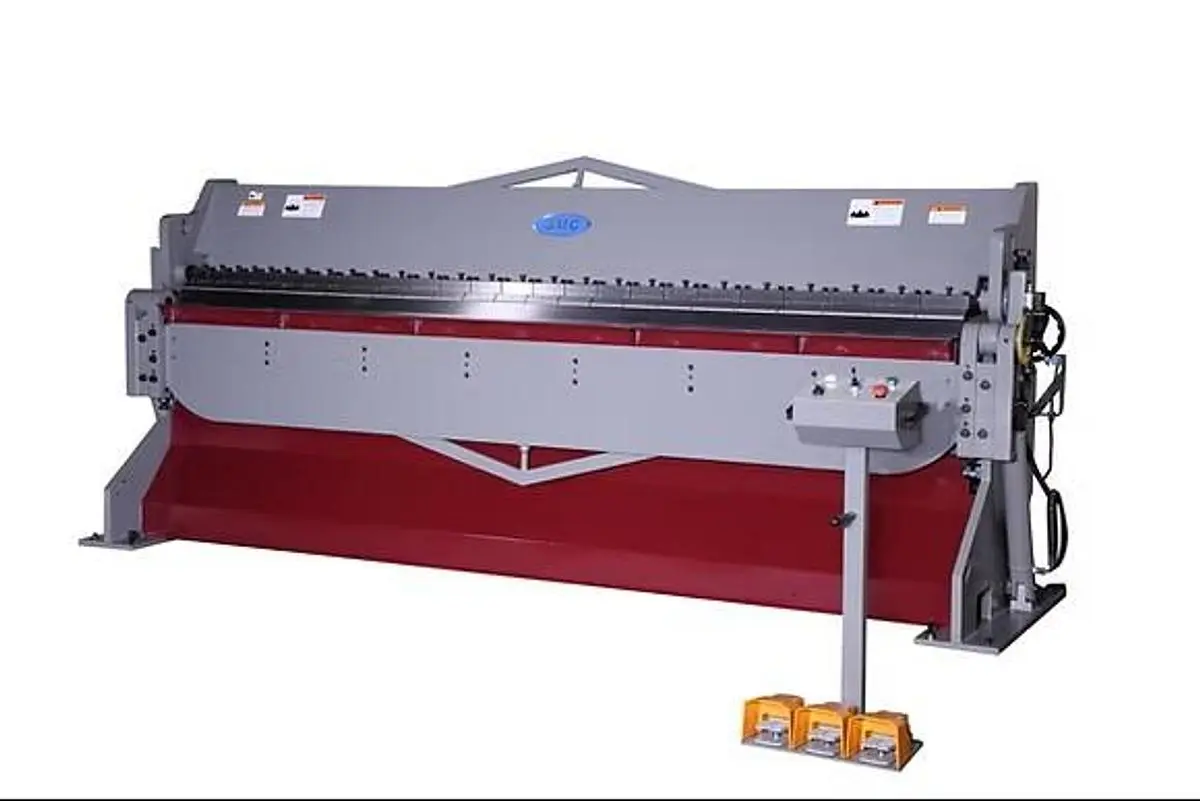

NEW GMC MACHINE TOOLS HSB-1014
Specs
Bending Capacity: 14 Ga. (mild steel), 16 Ga. (stainless steel), 10 Ga (soft aluminum)
Max Bending Length: 120"
Open Hem max thickness: 22 Ga.
Close hem max thickness: 28 Ga.
Min Material Thickness: 26 Ga.
Finger Length: 10' 1"
Bend Degree: 135
Large Beam Opening: 3"
Manual Back Gauge: 26"
Oil Tank Capacity: 17 Gal.
Electrical: 220VAC, 20A (optional 440VAC, 10A)
Main Motor: 5 HP, 3 Phase
Weight (approx): 6,850 lbs.
Overall Dimensions: 142 x 46 x 66"H
Equipped With
Standard Features:
Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece

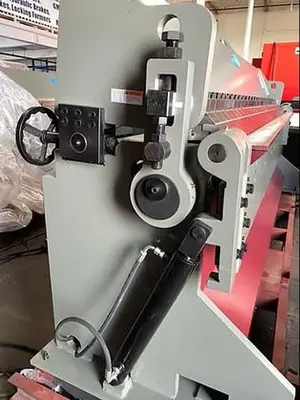

26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Germany Rexroth Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement

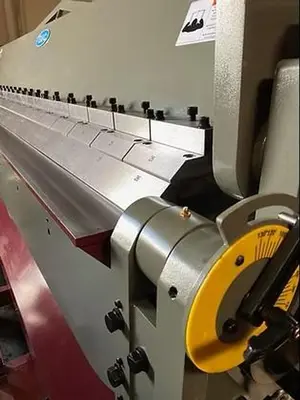

Comes with one 10’ straight finger installed
One set of assorted fingers 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs (boxed)

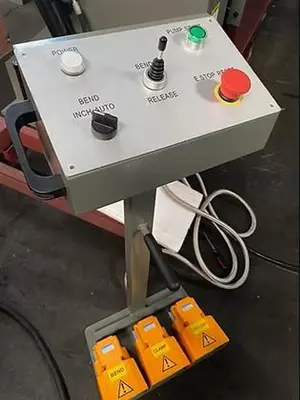

Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts
Standard Equipment:
26” manual back gauge with one side handwheel operation

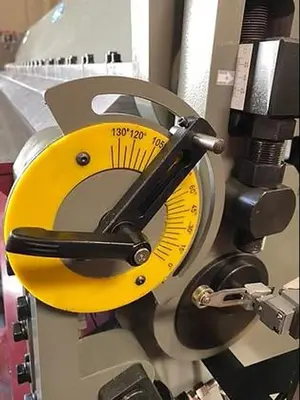

Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mod
