| Spindle Size | 4" | 101.6 mm |
| X-Horiz Tvl of Table | 63" | 1,600.2 mm |
| Y-Vert Tvl of Head | 44" | 1,117.6 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,120 RPM | 1,120 RPM |
| Table-W | 49.2" | 1,249.7 mm |
| Table-L | 49.2" | 1,249.7 mm |
| Spindle Tvl. | 35.43" | 899.92 mm |
| Dimensions | 234″ x 118″ x 118″ High | 234″ x 118″ x 118″ High |
| Weight | 30,905 lbs. Approx. | 30,905 lbs. Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
3.94″ Spindle Diameter
Heavy Table Load Capacities
Gear Head Spindle for Powerful Torque

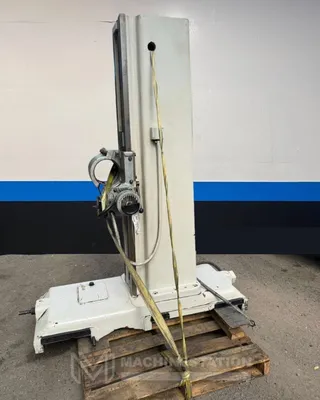

Note: Machine is dismantled and Ready to be loaded on the Truck
Travels:
X Axis (Table Traverse Travel): 63.00″
Y Axis (Headstock Vertical Travel): 44.09″
Z Axis (Table Longitudinal Travel): 49.21″
W Axis (Spindle Stroke): 27.6″
Feed Rates:
Feeds For Boring – 32 Stages: 0.0008 – 0.47 inch/rev.
Feeds For Milling – 18 Stages: 0.71 – 35.43 inch/min
Rapid Travese (Spindle Stroke, Headstock and Trable): 110.24 inch/min

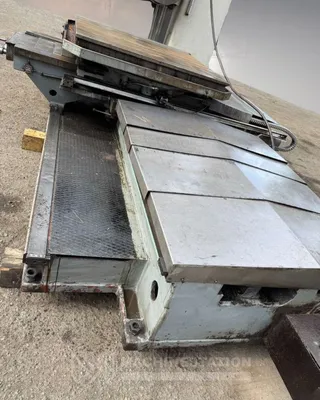

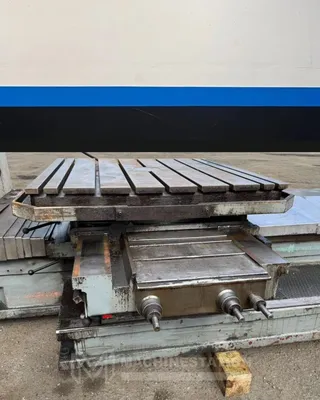

Rotary Table:
Length: 49.21″
Width: 49.21″
Max Weight on Table: 6,624 lbs
Indexing: 1 Degree
Spindle:
Spindle Diameter: 3.94″
Spindle Range: 7.1 – 1,120 RPM
Spindle Taper: 50
Power: 15 HP

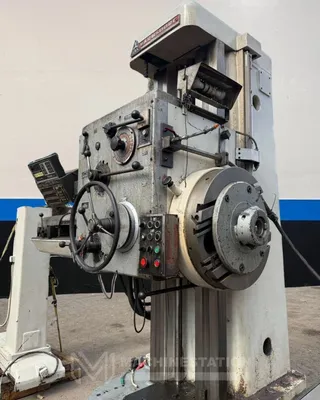

Facing Head:
Daimeter: 23.62″
Slide Travel: 8.26″
Facing Diameter Max: 35.43″
Speed Range: 7.1 – 224 RPM
General:
Power: 66FLA / 205-220v / 3-Phase
Machine Dimensions: 234″ x 118″ x 118″ High
Machine Weight: 30,905 lbs. Approx.
4th Axis Rotary Table
Facing Chuck
Tailstock
DRO
