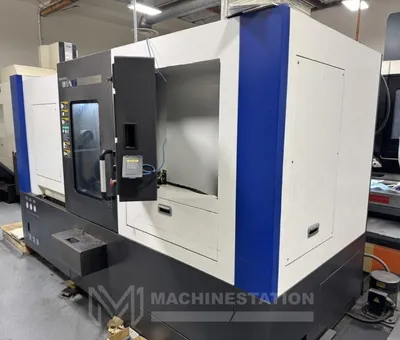

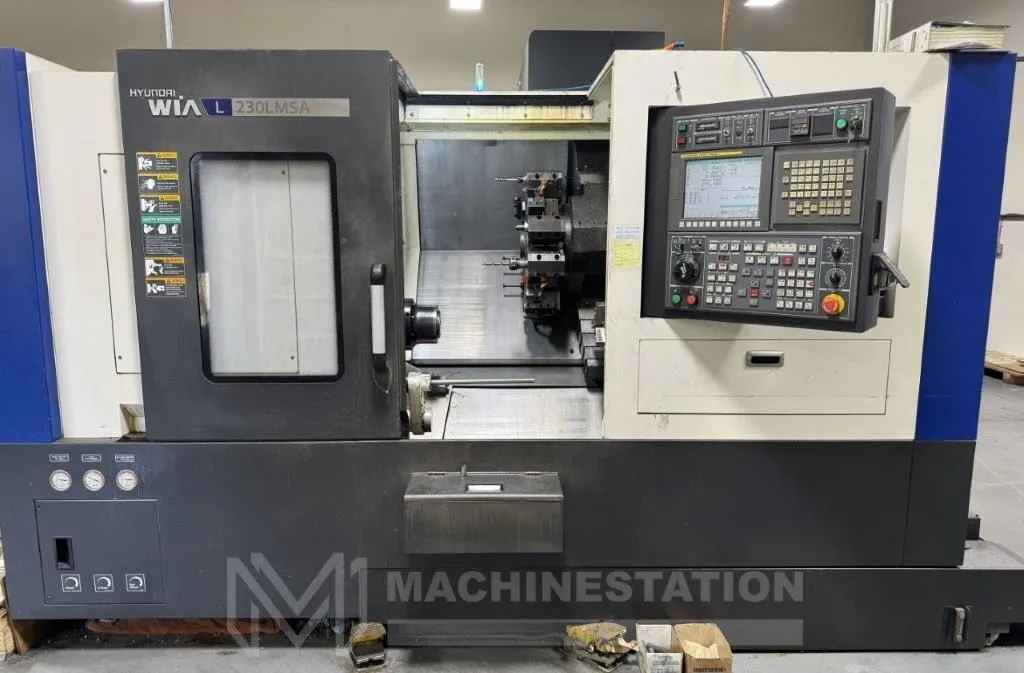

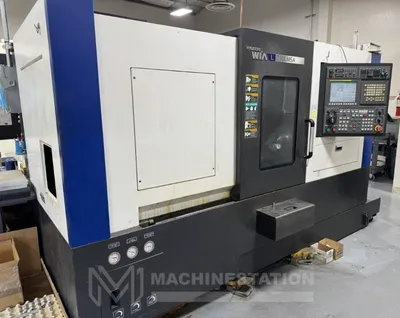

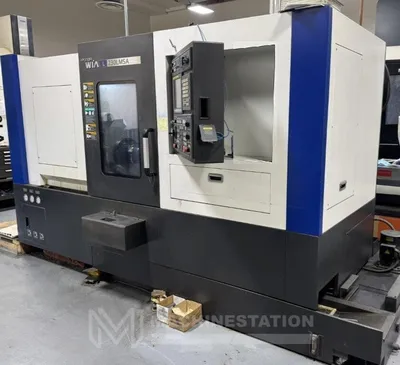

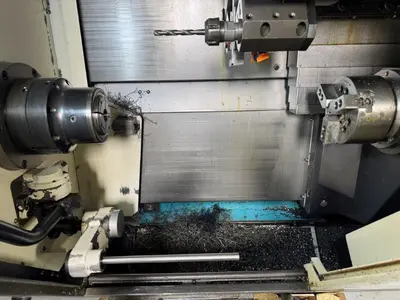

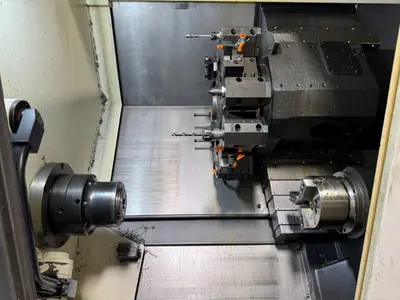

USED 2012 HYUNDAI WIA L230LMSA
Overview
Specifications
| Swing | 23.6" | 599.44 mm |
|---|---|---|
| Machining Length | 20.5" | 520.7 mm |
| # Axis | 4 | 4 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.6 mm | 0.1024" |
| Power | 20 hp | 14.9 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 12.2" | 309.88 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC (Fanuc i series CNC Control) | CNC (Fanuc i series CNC Control) |
| Dimensions | 133.5″ x 66.3″ x 73.3″ High | 133.5″ x 66.3″ x 73.3″ High |
| Weight | 10,360 lbs Approx. | 10,360 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

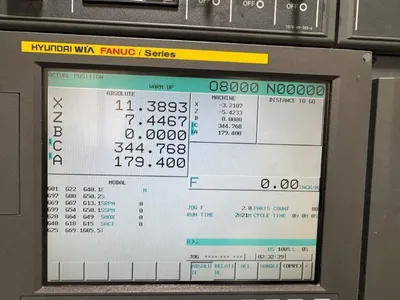

Fanuc i Series CNC Control
4,736 Hours Cutting Time
12 Station Live Tool Turret
Rigid Tapping
Coolant System
Capacity:
Max Turning Diameter: 12.2″
Max Turning Length: 20.5″
Swing Over Cross Slide: 14.0″
Swing Over Bed: 23.6″
Max Bar Capacity: 2.6″ (Main) / 1.7″ (Sub)
Travels:
X Axis Travel: 8.7″
Z Axis Travel: 22.0″
ZB Axis Travel (Sub Spindle): 23.2″
C Axis (Both Spindles): 360 Degree (0.001)
Rapid Traverse Rate X / Z / ZB Axis: 1417 / 1417 / 1181 IPM
Main Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.1″
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP
Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.1″
Spindle Speed: 5000 RPM
Spindle Motor: 7.5 HP

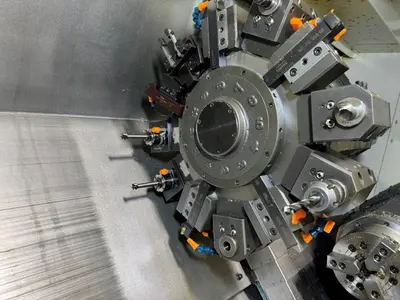

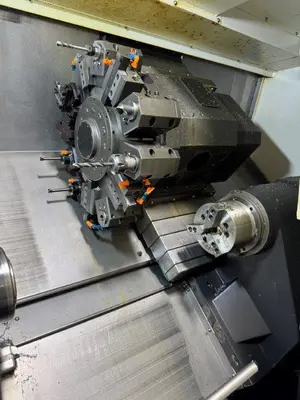

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.2 Second
Rotary Tool Speed: 5000 RPM
Rotary Tool Motor: 5 HP
Turret Type: BMT55
General:
Power Source: AC 220 V / Three Phase / 60 Hz
Power Requirement: 27 kva
Overall Dimensions: 133.5″ x 66.3″ x 73.3″ High
Weight: 10,360 lbs Approx.
Equipped With

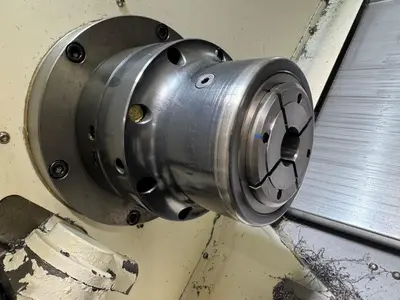

S26 Collet Chuck Equipped on Main Spindle

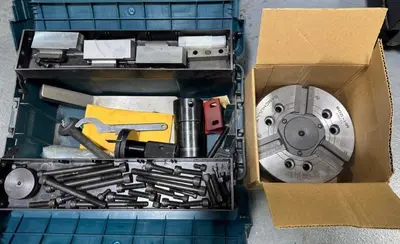

8″ 3-Jaw Samchully MH-208 Chuck For Main Spindle (Extra Chuck)

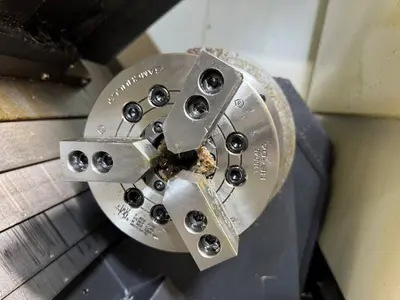

6″ 3-Jaw Samchully HS-06 Chuck Equipped on Sub Spindle

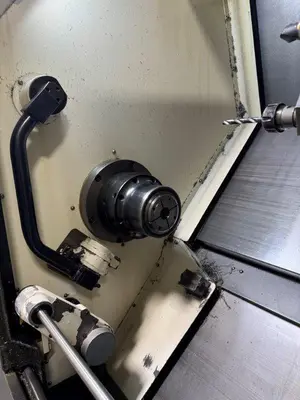

16C Collet Chuck For Sub Spindle (Extra Chuck)
Servo Controlled C Axis on Both Spindles
Tool Presetter
Parts Catcher
Foot Switches
(5) Live Tool Holders
