JOHNFORD HT-60-2D – 2004

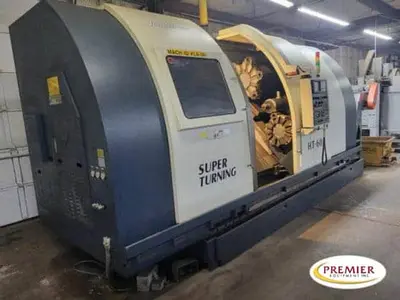

JOHNFORD HT60-2D Twin Turret CNC Lathe

Max Swing Way Covers 28.7″

Max Swing Over Cross Slide 23.6

Max Distance Between Centers 59″

Standard Chuck Size 24″

Cross Travel (X-Axis)(X2-Axis) 12.6″

Longitudinal Travel (Z1-Axis,Z2-Axis) 59″

Rapid Traverse Rates 590 IPM

Number of Turrets 2

Tool Positions 24 Total

Spindle Bore 6″

Bar Capacity 5.5″

Spindle Nose A2-15

Spindle Speed Range (Maximum) 1200 RPM

Spindle Horsepower 37 HP

Approximate Dimension 118″ x 230″

Approximate Height 115″

Approximate Machine Weight 44,300 LBS

Fanuc 18T CNC Control

24″ 3-Jaw Power Chuck

RS-232 Port

12 Position Upper Turret

12 Position Lower Turret

Programmable Hydraulic Tailstock

Belt-Type Chip Conveyor

Coolant System
