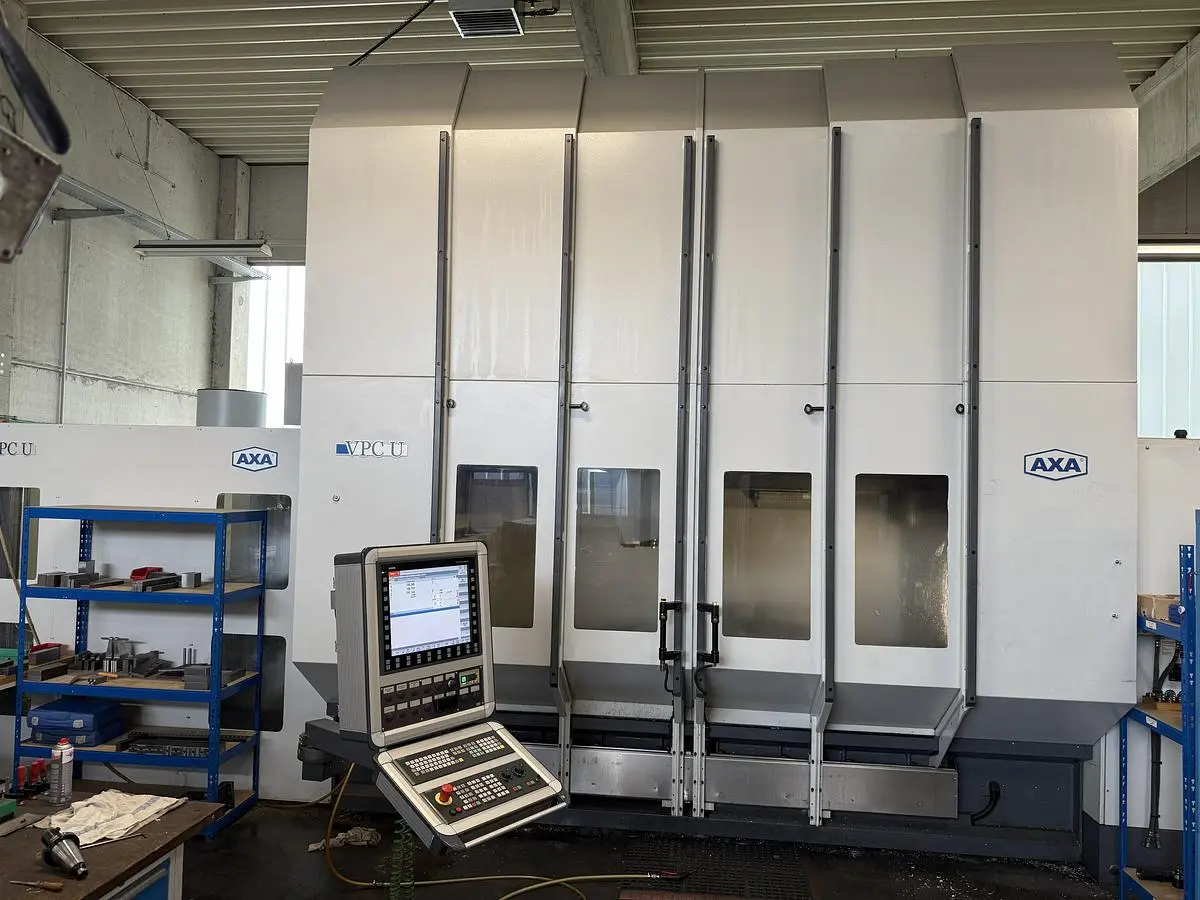

USED 2014 AXA VPC 55 UT

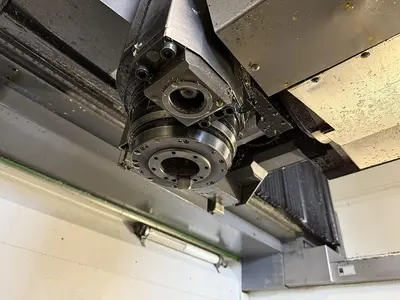

Swivel head
Type 1-axis
Swivel head infinitely variable positioning or freely interpolating
Swivel movement: Over B-axis
Swivel range B-axis: 0° to -90°
Pitch: 0.001°
Swivel radius: Pivot point - Spindle nose: 290 mm

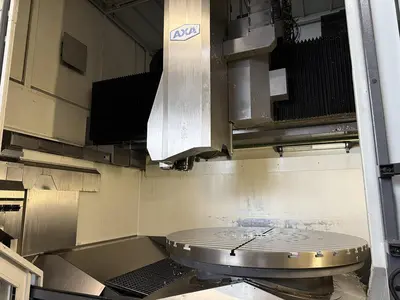

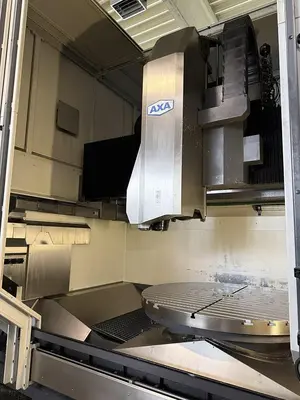

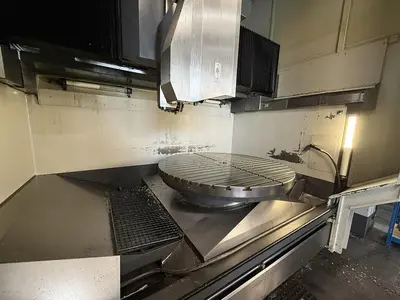

Machine table

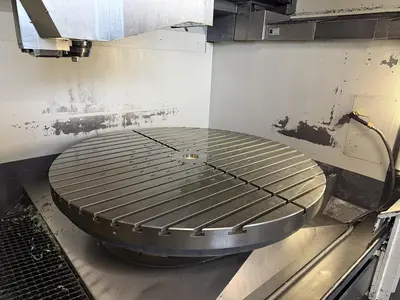

Clamping surface Rotary table: Diameter 1600 mm
NC Rotary table: AXA RTA 6D, face plate 1600 mm
T-slots: 18 mm H9, Straightening groove H7
T-slot course: Star-shaped
T-slot pitch: 80 mm
Table load - Positioning operation Max. 5000 kg at max. 10 1/min
Table load - Turning operation Up to 2500 kg
Turning operation: Up to max. 250 1/min
Measuring system: Direct measuring system, accuracy +/- 1''

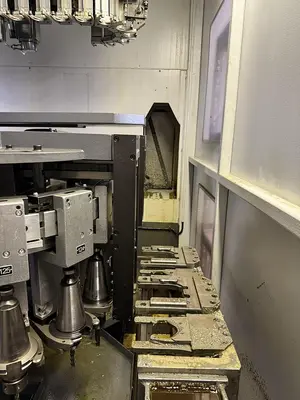

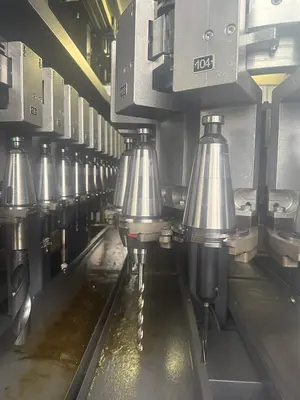

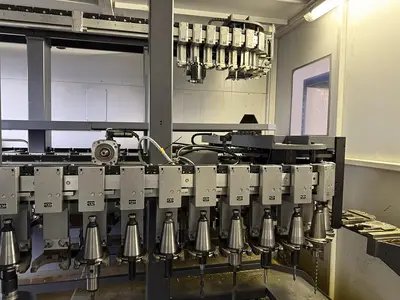

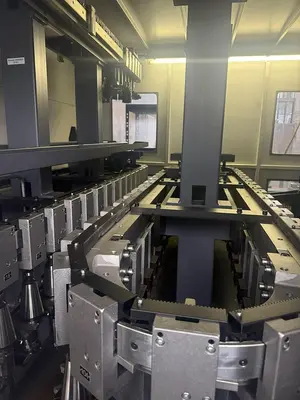

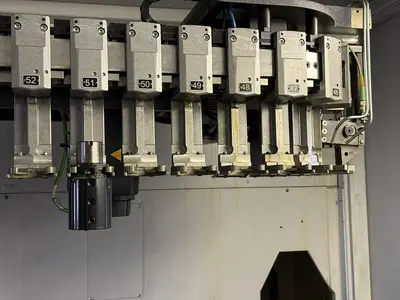

Tool changer (SK50)
Type: Side-mounted chain magazine, outside the working area
Tool holder SK 50, DIN ISO 7388-1 AD / DIN ISO 7388-3 AD
Tool places 60 (tower 1 / 1st chain = 30 places, tower 2 / 1st chain = 30 places)
Max. tool width (standard) Max. diameter 110 mm
Tool width for free adjacent spaces Max. diameter 180 mm
Tool length Max. 400 mm
Tool weight Max. 15 kg per tool
Weight in gripper Max. 15 kg

Tool changer (CAPTO C6)
Type: Second magazine chain in the XTS tower for turning tools
Tool holder CAPTO C6
Tool places Tower 1 / 2nd chain = 12 places
Max. tool width (standard) Max. diameter 85 mm
Tool width with free neighboring positions Max. diameter 135 mm
Tool length Max. 400 mm
Tool weight Max. 8 kg per tool

Spindle & drives
Feed force X/Y/Z (Feed Force) Max. 9000 N
Rapid Traverse X/Y/Z (Rapid Traverse) 30/30/25 m/min
Feed X/Y/Z (Feed Rate) Standard 1 - 9999 mm/min
Power Max. 56 kW at 40% ED
Torque Max 355 Nm at 40% ED
Speed Range Up to 9000 rpm
Critical Speed 1500 rpm
