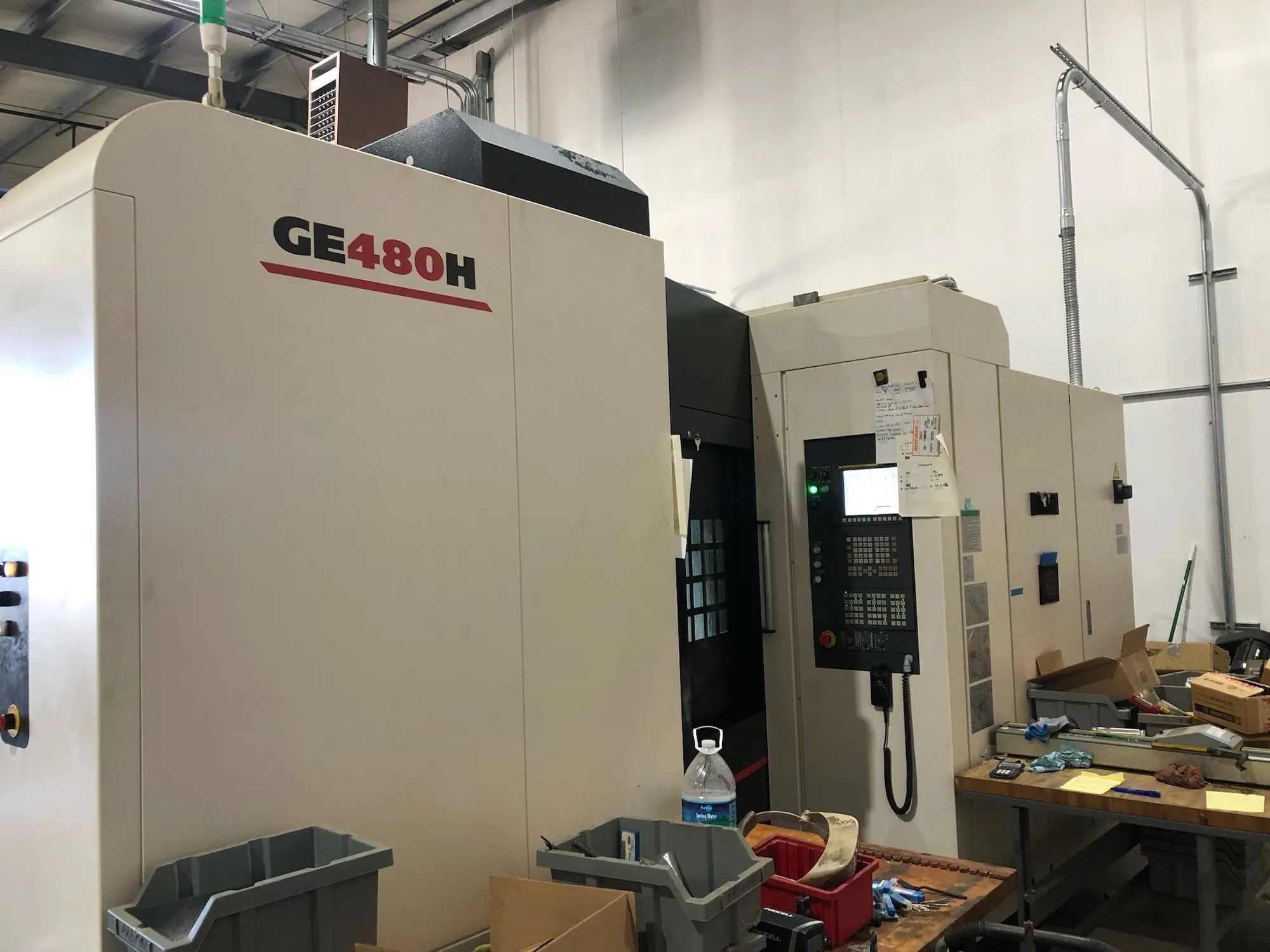

2021 Enshu GE480H Horizontal Machining Center with Fanuc 31i-B Control, Full 4th Axis, 60 Station ATC, High Pressure 256 PSI Through Spindle Coolant, Laser Probe, Renishaw Work Probe, and Chip Conveyor.
| X | 31.5" | 800.1 mm |
| Y | 31.5" | 800.1 mm |
| Z | 31.5" | 800.1 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 60 | 60 |
| Taper | #40 | #40 |
| Pallet-W | 19.7" | 500.38 mm |
| Pallet-L | 19.7" | 500.38 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc 31i-B) | CNC (Fanuc 31i-B) |
| Dimensions | 194" x 111" x 119" | 194" x 111" x 119" |
| Weight | 27,000 LBS | 27,000 LBS |
Pallets (2)..................19.7" x 19.7"
Pallet Load Capacity.........1,100 LBS
Pallet Indexing..............0.001 Degree
X-Axis Travel................31.5"
Y-Axis Travel................31.5"
Z-Axis Travel................31.5"
Spindle Motor................50 HP
Spindle Taper................CAT-40
Spindle Speed................15,000 RPM
Feed Rate....................1,574 IPM
Rapid Traverse Rates.........3,543 IPM
Tool Changer.................60 ATC
Machine Dimensions...........194" x 111" x 119"
Weight.......................27,000 LBS
Fanuc 31i-B CNC Control
Full 4th Axis
60 Station ATC
High Pressure 256 PSI Through Spindle Coolant
Laser Probe
Renishaw Work Probe
Chip Conveyor
**TWO MACHINES AVAILABLE**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
