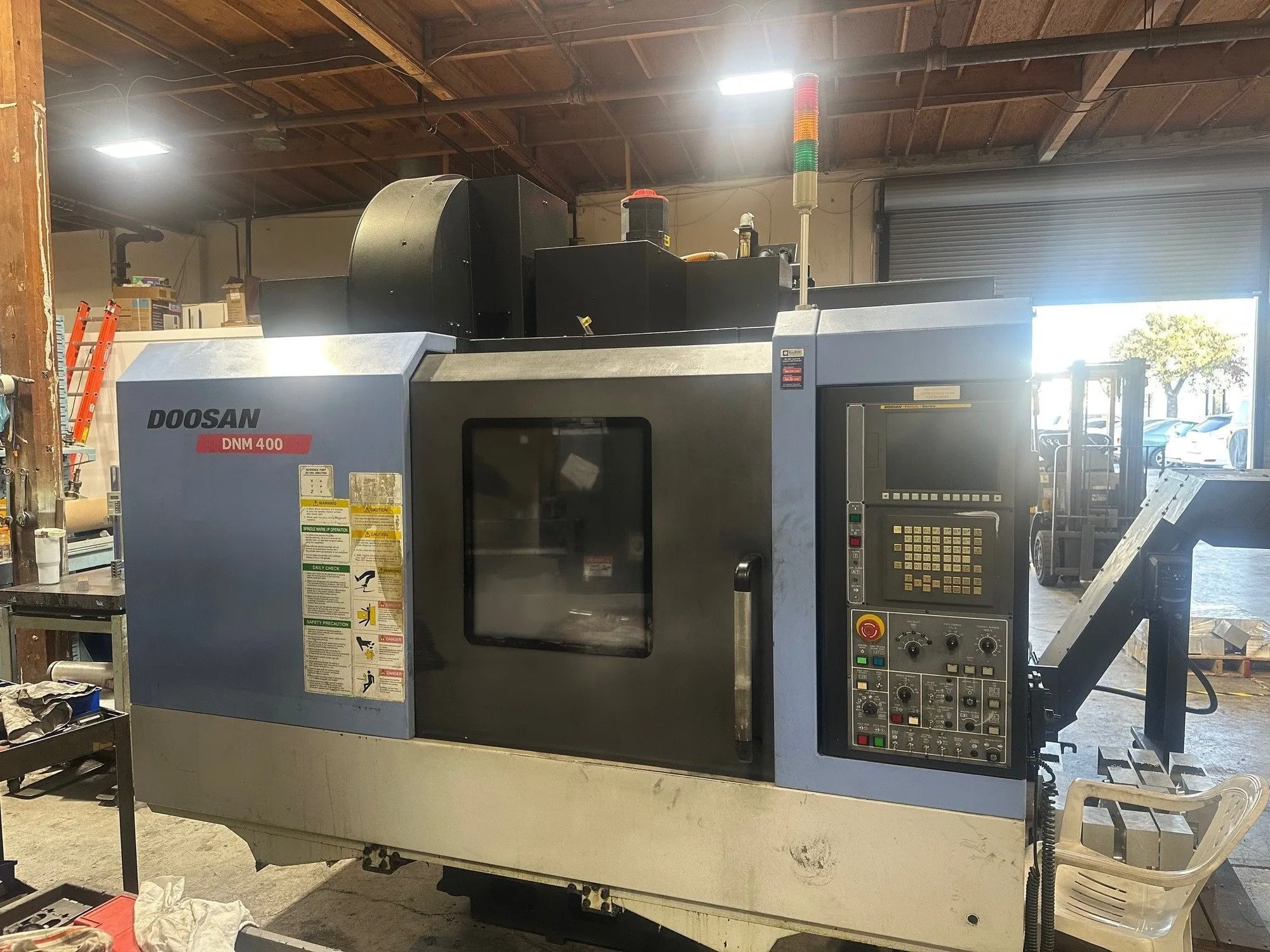

2010 Doosan DNM 400 Vertical Machining Center
| X | 30" | 762 mm |
| Y | 17.13" | 435.1 mm |
| Z | 20.08" | 510.03 mm |
| Power | 27 hp | 20.1 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 36.22 mm | 1.426" |
| Table-L | 17.13 mm | 0.6744" |
| Control | CNC (Fanuc i Series) | CNC (Fanuc i Series) |
| Dimensions | 82.4" x 113.8" x 106" | 82.4" x 113.8" x 106" |
| Weight | 12,100 Lbs | 12,100 Lbs |
TABLE SIZE........................36.22" x 17.13"
X-AXIS TRAVEL.....................30"
Y-AXIS TRAVEL.....................17.13"
Z-AXIS TRAVEL.....................20.08"
SPINDLE SPEED.....................8,000 RPM
SPINDLE MOTOR.....................27 HP
SPINDLE TAPER.....................CAT-40
TOOL CAPACITY (ATC)...............30
RAPID TRAVERSE (X,Y)..............1,417 IPM
RAPID TRAVERSE (Z)................1,181 IPM
APPROX MACHINE DIMENSIONS.........82.4" x 113.8" x 106"
APPROX MACHINE WEIGHT.............12,100 LBS
Fanuc i-Series CNC Control
Expanded Memory
Data Server
3-Color Alert Light
LNS Chip Conveyor
HOURS:
Power on Time......97,066
Cutting Time.......16,151
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
