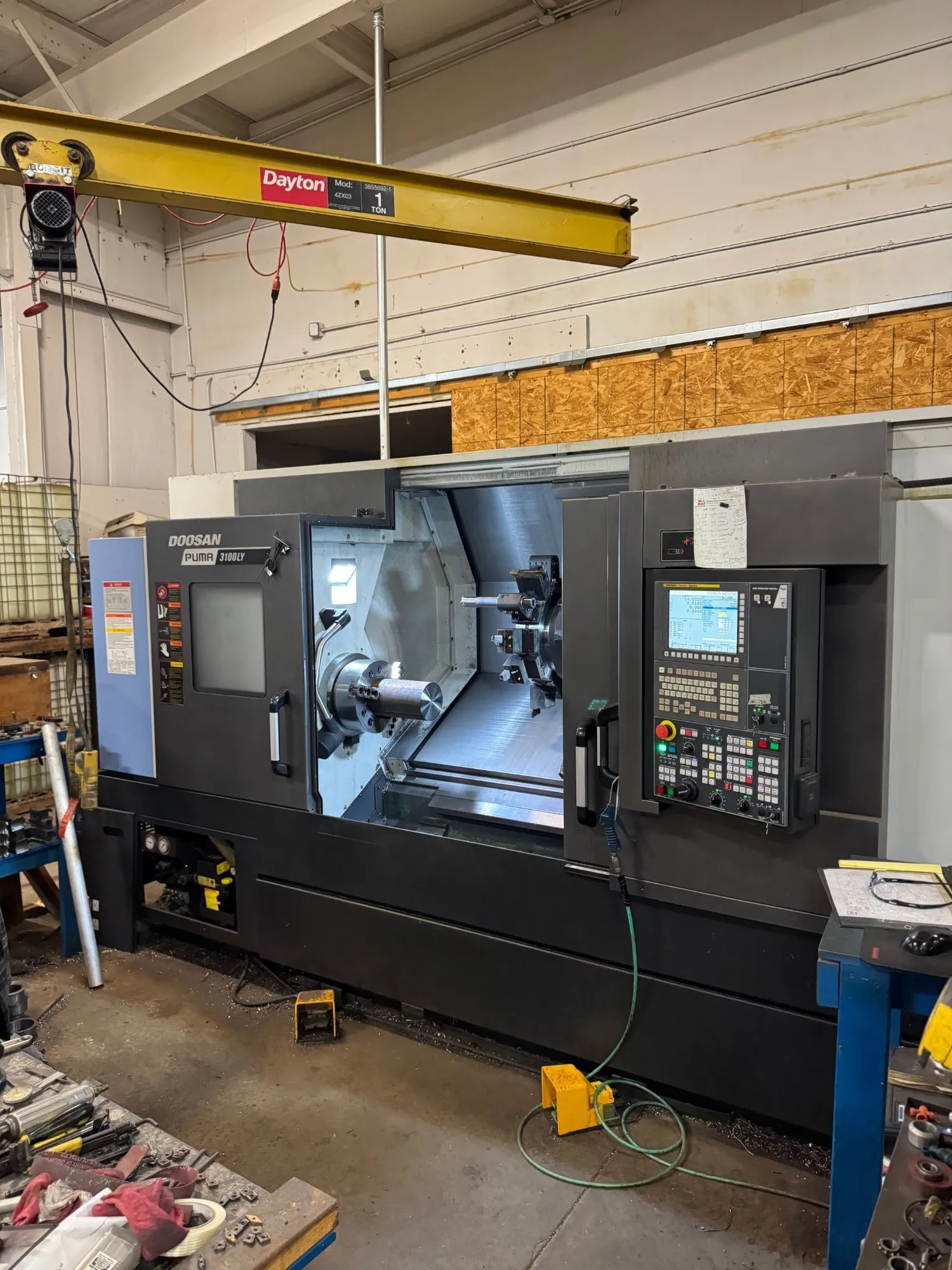

2018/2019 Doosan Puma 3100LY CNC Lathe featuring a 12" Samchully chuck, 26.38" swing, 2,800 RPM spindle speed, Fanuc i Series control, and a 12-station turret with C-Axis live tooling. Includes tool holders, LNS Turbo Chip Conveyor, and more. Ideal for precision tasks.
| Swing | 850 mm | 33.465" |
| Machining Length | 1,280 mm | 50.394" |
| Bar Capacity | 102 mm | 4.0158" |
| Max RPM | 2,800 RPM | 2,800 RPM |
| Turning Dia | 420 mm | 16.535" |
Chuck Size
12"
Bar Capacity
4"
Swing
26.38"
Turning Diameter
16.5"
Spindle Speed
2,800 RPM
Control
Fanuc Series 1
Distance Between Centers
50.6"
Turret
12 Station
Live Tooling
C-Axis Live Tooling, Y-Axis
Chip Removal
Chip Conveyor
Power Requirement
220/3/60
Turret Rotary Tool Speeds
5,000 RPM
Turret Rotary Tool Horsepower
10 HP
Tailstock Quill Diameter
3.9"
Fanuc i Series Control
12" Samchully Chuck
Tool Holders
2 Live Tools (1 Straight. 1 Right Angle)
Steady Rest Included (keeping clamps)
LNS Turbo Chip Conveyor
12/2018 and Del 2019
