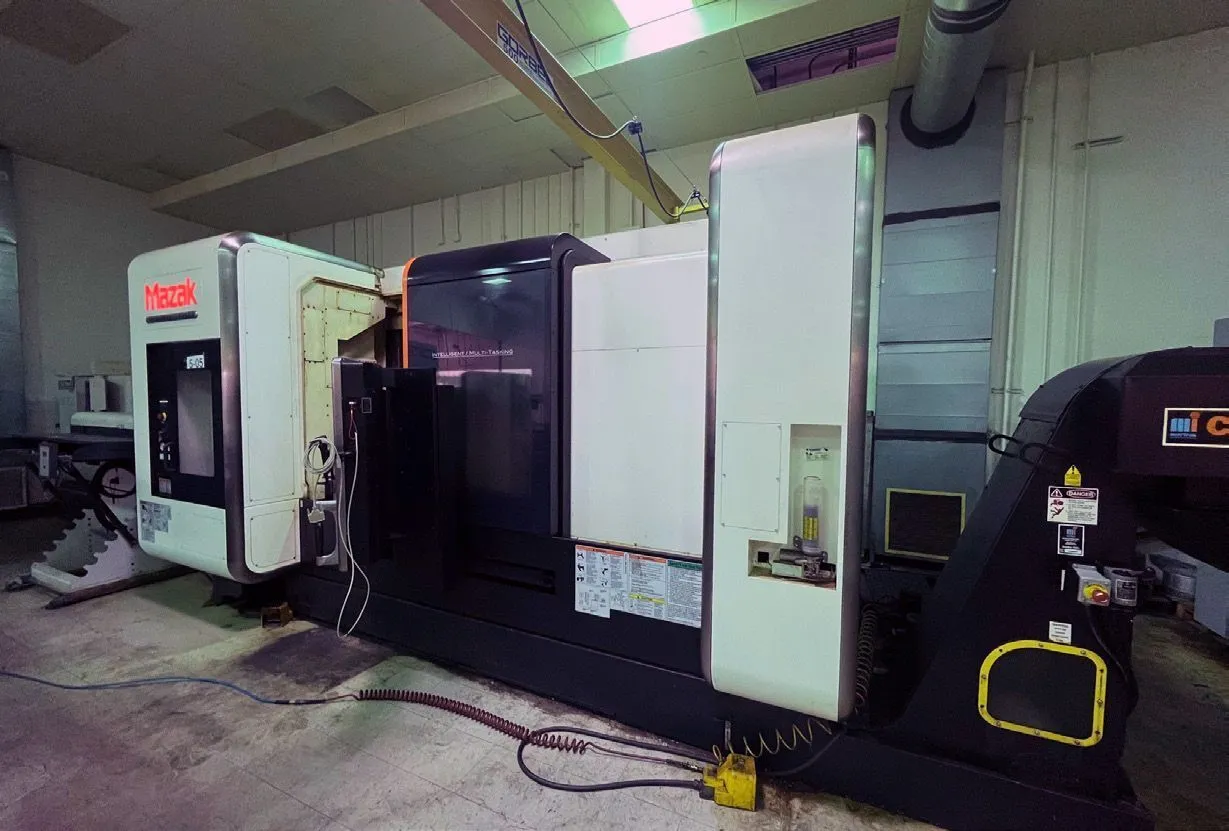

USED 2012 MAZAK INTEGREX I-300-1500U
Overview
2012 Mazak Integrex i-300S Intelligent /Multi-Tasking Twin Spindle CNC Turning Center w/ Mazatrol Matrix 2 Controls, 36-ATC, “Y” Axis, “B” Axis Live Tooling, 4000 Main and Sub Spindle RPM, 12,000 Milling RPM
Specs
Specifications (subject to buyer verification):
Maximum Swing 25.9"
Maximum Swing over Cross Slide33 25.9"
Maximum Cutting Diameter: Chucking 25.9"
Maximum Cutting Length 59.8"
MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose A2-8
Spindle Bore 3.58"
Maximum Bar Work 3.0"
Spindle Speed 35-4,000 RPM
Spindle Index (Programmable). 0.0001 Deg.
3,600,000 Positions
Spindle Horsepower (Cont./30 Mins) 30/40 HP (AC)
Spindle Torque (25% ED) 534 ft-lbs.
SECOND SPINDLE SPECIFICATIONS (R):
Spindle Nose A2-8
Spindle Bore 3.58"
Maximum Bar Work Optional-depends on current chuck package
Spindle Speed 35-4,000 RPM
Spindle Index (Programmable) (0.0001 Deg. C-Axis Optional)
Spindle Horsepower (Cont./30 Mins) 30/35 HP (AC)
Spindle Torque (30 min.) 369 ft-lbs.
TURRET AND TOOLING SPECIFICATIONS:
Type of Turret 1 position w/ATC
Magazine Capacity 36
Tool Selection Method Random Shortest Path
Tool to Tool ATC Time 1.3 sec.
Max. Tool Dia. w/All Pockets Full 3.54"
Max. Tool Dia. w/Adjacent Pockets Empty. 4.92"
Max. Tool Length (From Gage-Line) 15.75"
Maximum Tool Weight 26.5 lbs.
ATC Tool Shank. CAPTO
Rotary Tool Spindle Speed 15-12,000 RPM
Rotary Tool Spindle Horsepower (20% ED). 30 HP (AC)
Rotary Tool Torque (20% ED) 88.5 ft-lbs
AXIS TRAVELS:
B-Axis 240 Degrees
(-30 deg. to +210 deg. 0.0001 degree increments)
Y-Axis 9.84"
X-Axis 24.21"
Z-Axis 62.4"
Second Headstock W-Axis 61.96"
AXIS RAPID RATES:
X & Z-Axis 1969 IPM
Y-Axis 1575 IPM
Second Headstock W-Axis 1181 IPM
B-Axis 40 RPM
C-Axis 555 RPM
GENERAL SPECIFICATIONS:
Floor Space (WxL) 110.2" x 193.3"
Machine Height 107.1"
Total Power Required (Machine Only) 81.95 KVA
NOTE: Actual Machine Main Transformer
KVA Rating Will be Greater.
Air Requirements 71 PSI/12.7 CFM
Machine Weight (36t) 34,172 lbs.
Equipped With
2012 MAZAK I-300 1500
KEN OKUYAMA DESIGN
MAZATROL MATRIX 2 CONTROL
19" COLOR LCD
EIA/ISO CODE INPUT FUNCTION (STANDARD)
ADDITIONAL EIA/ISO FUNCTIONS (REQUIRES EIA/ISO)
3-D COORDINATE CONVERSION
GOO SLOPE CONSTANT
SHAPE COMPENSATION FOR ROTARY AXES (G61.1)
CYLINDRICAL (G07) & POLAR COORDINATE (G12) (EIA)
MILLING-SPINDLE SYNCHRONOUS TAPPING
EIA 1ST SPINDLE & MILL SPINDLE SIMULTANEOUS ROTATION
INCH/METRIC CONVERSION
CARDBUS I/F (2-SLOT)
LAN PORT
USB I/F
M0575A12CJO
ROLLER GUIDES
Y-AXIS CONTROL
ABSOLUTE POSITIONING SYSTEM (LINEAR AXES)
SF205A12CJO
X, Y, Z PITCH ERROR COMPENSATION INPUT
COOLANT THROUGH MILLING HEAD
15KG/213 PSI THRU COOLANT/FLOOD SIMUL-FLOWABLE $9300.00
1ST SPINDLE BORE DIA.91MM (3.58")
1ST SPINDLE MOTOR AC 30KW (40HP)
1ST SPINDLE SPEED 4000 RPM
2 C-AXIS 0.0001 DEGREE INCREMENT (1ST SPINDLE)
2 SECOND SPINDLE MOTOR AC26KW (35HP)
2 SECOND SPINDLE SPEED 4000 RPM
2ND SPINDLE C-AXIS WITH C1-C2 0.0001 DEGREE INCREMENTS $3400.00
CHUCK AIR BLAST (SECOND SPINDLE)
**15" THRU-HOLE CHUCK
B15A08 (MAIN SPINDLE ONLY)** $6700.00
10" THRU-HOLE CHUCK
B210A0815X (1ST SPINDLE)
10" THRU-HOLE CHUCK
B210A0815 (2ND SPINDLE)
36 KM-TOOL MAGAZINE $4200.00
ROTARY-TOOL SPINDLE SPEED 12000 RPM
B-AXIS 0.0001 DEG/CONTOURING (REQUIRES EIA/ISO)
TOOL EYE (AUTOMATIC)
2 AUTO CHUCK JAWS OPEN/CLOSE (1&2 SPINDLE)
2 CHUCK OPEN/CLOSE CONFIRMATION (1ST & 2ND SPINDLE)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
COOLERS FOR BALL SCREW (X-AXIS)
POWER TRANSFORMER FOR NORTH AMERICAN MKT
RELOCATION DEVICE
MT CONNECT PREPARATION
WINDOWS 7 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
HAND GREASE PUMP (LG-400) (TO REFILL CENTRAL LUBE RES.) $50.00
GREASE CARTRIDGE EP-1 (2 SETS) (FOR CENTRAL LUBE RESERVOIR) F) $20.00
TOOL RADIUS COMPENSATION /5-AXIS $1500.00
5-AXIS MACHINING PACKAGE $7400.00
MAXIMUM PROGRAM SIZE :8MB $1500.00
ETHERNET OPERATION FUNCTION $1400.00
$5000.00 TOOLING CERTIFICATE FOR KENNAMETAL KM TOOLING $2900.00
CHIP CONVEYOR SIDE DISPOSAL (CONSEP WS) USE FOR 60" $30700.00
AUTO PARTS CATCHER $2000.00
CERTIFIED FOUNDATION DRAWING (WILL CHECK IF AVAIL)
LNS QUICK LOAD SERVO 80-S2 SHORT MAGAZINE BARFEED $23200.00
BAR-FEEDER ONE STANDARD LINER (SIZETBD)
RETROFIT PARTS FOR AUTO PARTS CATCHER MAX PART SIZE IS DIA. 80MM X L=150MM X 5KG $13900.00
PREPARATION FOR CHIP CONVEYOR
(SIDE/CONSEP OR HINGE) US
