NEW 1982 KURAKI LC-403
Overview
Description

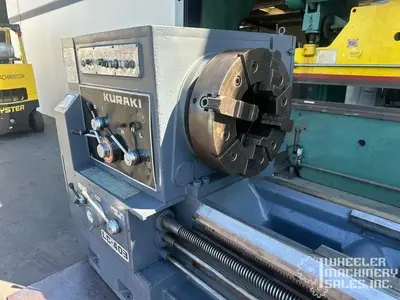

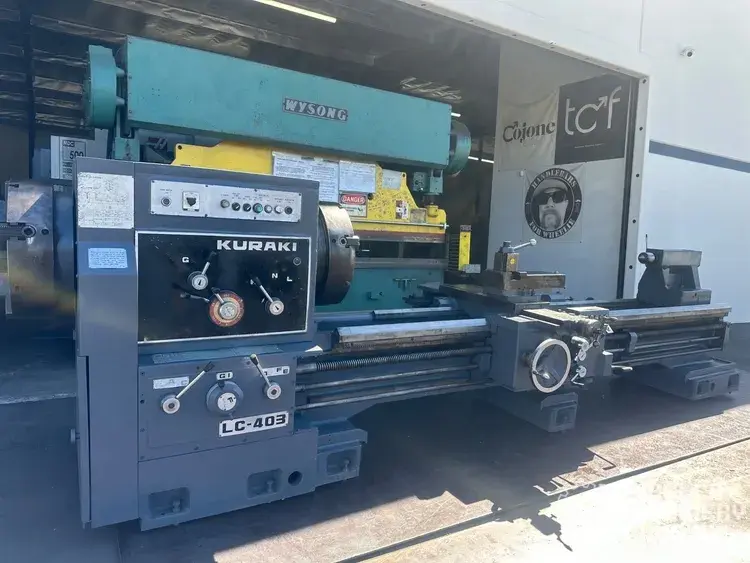

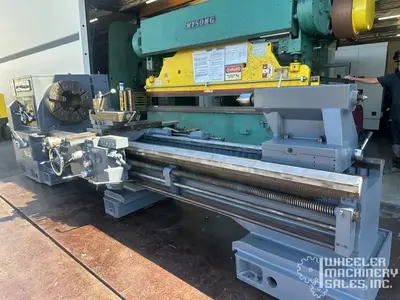

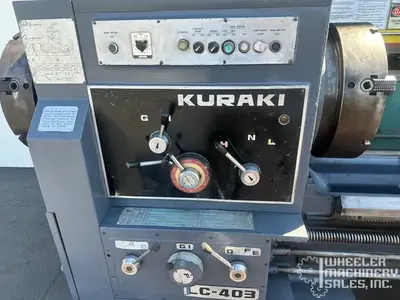

1982 KURAKI Model LC 403 Hollow Spindle Lathe, 12.5" Hole Through
1982 KURAKI LC-403 Hollow Spindle Lathe, used. Features: 33" swing, 130" centers, 12.5" spindle bore. Ideal for oil field applications. Reliable KURAKI performance ready to meet your machining needs.
The horizontal boring machines from DMG MORI Precision Boring are designed for the precision machining of large, heavy workpieces.
Kuraki Co, Ltd, was founded in 1938 in Nagaoka, Niigata, Japan, by Kurabo Industries Ltd. In the late 1970s, we began exporting from Japan to the U.S. and established Kuraki America Corp. in 1981. We have been dedicated to manufacturing horizontal boring and milling machines (HBM) from the beginning. To date, we have delivered about 7,000 HBMs worldwide. We currently have 3 overseas offices in the USA, China and Taiwan.
Kuraki America Corp. was founded in 1981 as a subsidiary of Kuraki Co, Ltd. in the USA. It is responsible for the import, sales and service of our products in the USA, Canada and Mexico. Since 2024, we have been operating under the name DMG MORI Precision Boring Co., Ltd.
Specifications
| Swing | 33" | 838.2 mm |
|---|---|---|
| Centers | 130" | 3,302 mm |
| Spindle Bore | 12.5" | 317.5 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 350 RPM | 350 RPM |
| Dimensions | 244″ X 72″ X 73″ High | 244″ X 72″ X 73″ High |
| Weight | 21,000 | 21,000 |
SPECIFICATIONS:
Swing Over Bed: 33″
Swing Over Cross Slide: 20.75″
Distance Between Centers: 120″
Bed Width: 23.5″
Spindle Speeds: (12) 6 – 350 RPM
Spindle Motor: 30 HP
Spindle Bore: 12.5″
Spindle Nose: A2-20

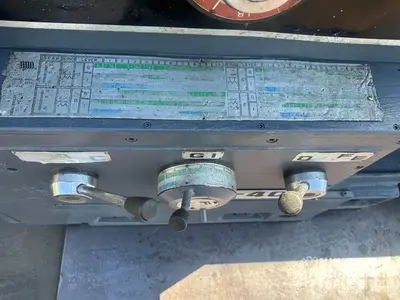

Inch Threads: (41) 1.75 – 56 tpi
Metric Threads: (41) 0.75 – 28 mm
Dimensions (approximate): 244″ X 72″ X 73″ High
Weight (approximate): 21,000 Lbs.
Equipped With
EQUIPPED WITH:

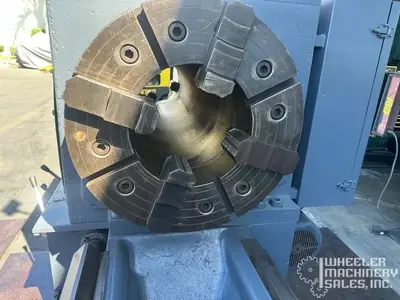

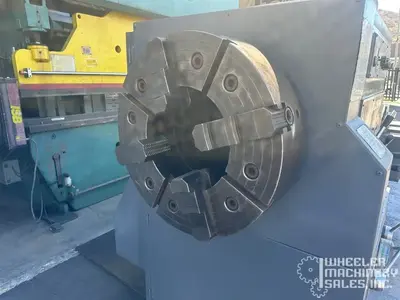

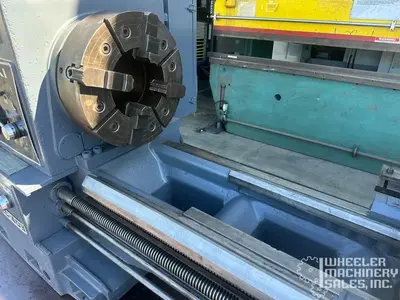

24″ Front & Rear 4-Jaw Chucks
Tailstock

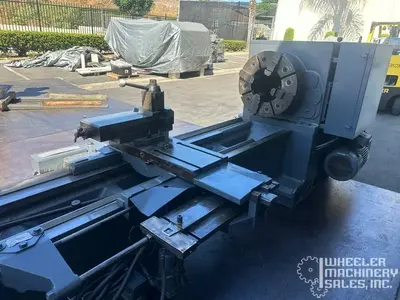

Swiveling Compound
Tool Post
Taper Attachment
Thread Dial
Coolant
Rapid Traverse
