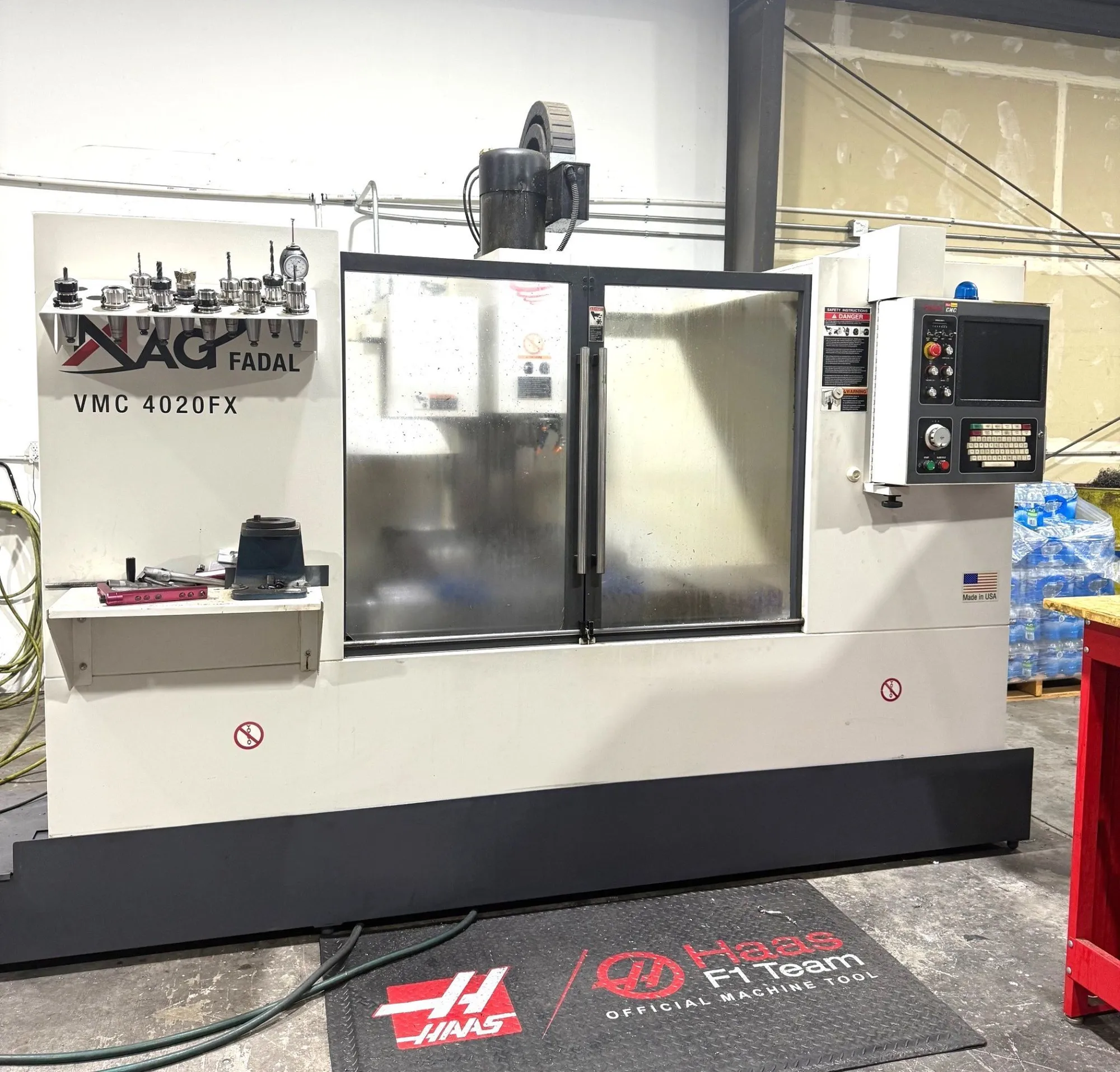

10,000 RPM, CAT 40. This high torque 2008 Fadal VMC-4020 FXMP-HT CNC vertical machining center is in plant, under power, and ready for immediate inspection and purchase.
| TABLE LENGTH | 48" | 1,219.2 mm |
| TABLE WIDTH | 20" | 508 mm |
| TABLE CAPACITY | 3,600 lb | 1,632.9 kg |
| X-AXIS TRAVEL | 40" | 1,016 mm |
| Y-AXIS TRAVEL | 20" | 508 mm |
| Z-AXIS TRAVEL | 20" | 508 mm |
| SPINDLE SPEED | 10,000 RPM | 10,000 RPM |
| SPINDLE MOTOR | 15 hp | 11.2 kW |
| SPINDLE TAPER | CAT 40 | CAT 40 |
| TOOL CAPACITY (ATC) | 21 | 21 |
| RAPID TRAVERSE - X AXIS | 1,000 in/min. | 25.4 m/min. |
| RAPID TRAVERSE - Y AXIS | 1,000 in/min. | 25.4 m/min. |
| RAPID TRAVERSE - Z-AXIS | 900 in/min. | 22.9 m/min. |
| Dimensions | 132″L x 100″W x 108″H | 132″L x 100″W x 108″H |
| Weight | 13,000 lbs | 13,000 lbs |
FADAL CNC MULTIPROCESSOR CONTROL
HIGH TORQUE
COOLANT SYSTEM
RIGID TAPPING
208V
PULL STUDS INCLUDED
** ORIGINAL OWNER
** AS OF OCTOBER, 2025 - POWER-ON TIME: 11,300 HOURS
** TOOL HOLDERS & VISES AS PICTURED AVAILALBE AT ADDITIONAL COST
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
