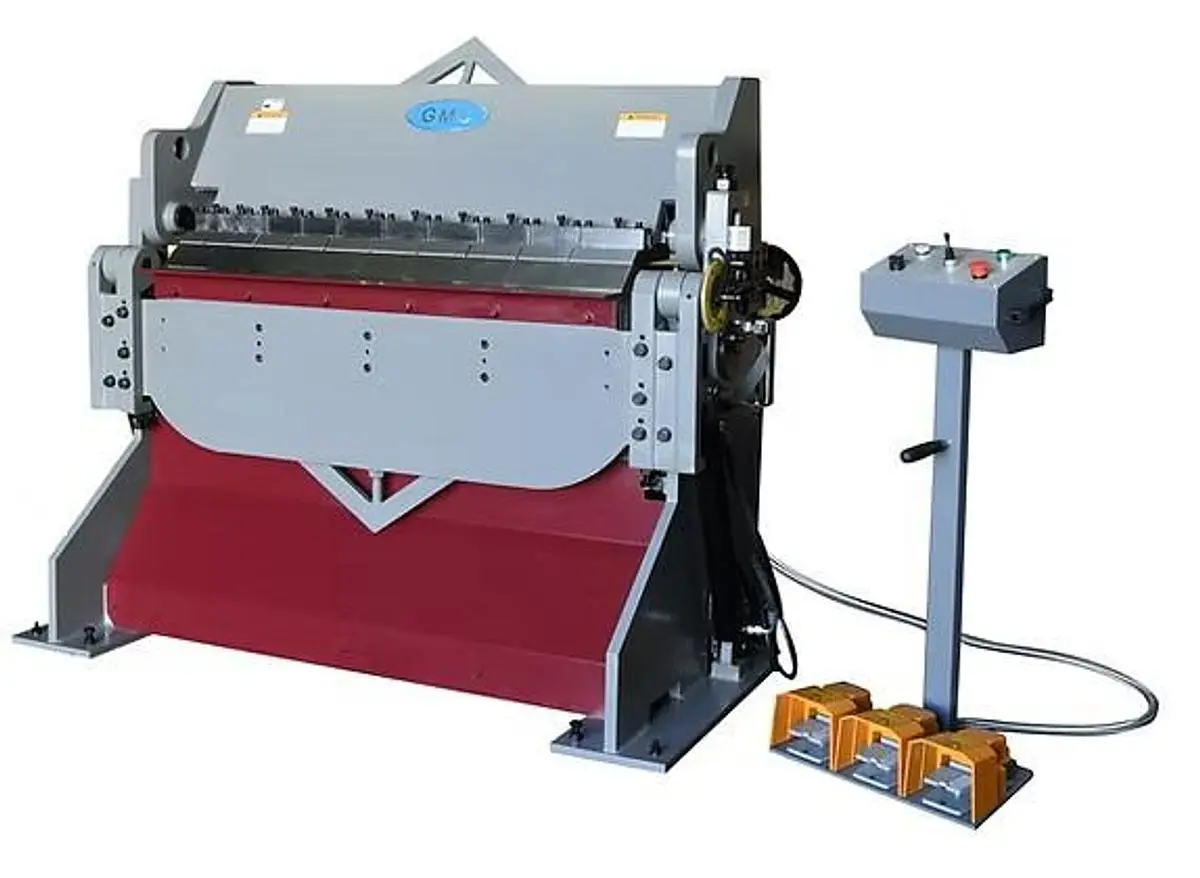

NEW GMC MACHINE TOOLS HBB-0410
Specs
Max Bending Length: 48"
Bending Capacity - HRS: 10 Ga.
Bending Capacity - Stainless Steel: 12 Ga.
Bending Capacity - Soft Aluminum: 1/4"
Min Material Thickness: 26 Ga.
Opening hem max thickness: 16 Ga x 48"
Closing hem max thickness: 26 Ga x 48"
Max Box & Pan Depth: 6.02" (153mm)
Large Beam Opening: 3"
Manual Go-To Back Gauge: 26"
Oil Tank Capacity: 10 Gal.
Main Motor: 5 HP, 3 Phase, 220V/15A (optional 440V/10A)
Machine Dimensions: 67 x 46 x 67"
Machine Weight: 4050 lbs.
Equipped With
Standard Features:
Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Germany Rexroth Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement
Total pieces fingers assortment:3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts
Standard Equipment:
Assorted fingers
26” manual back gauge with one side handwheel operation
Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
