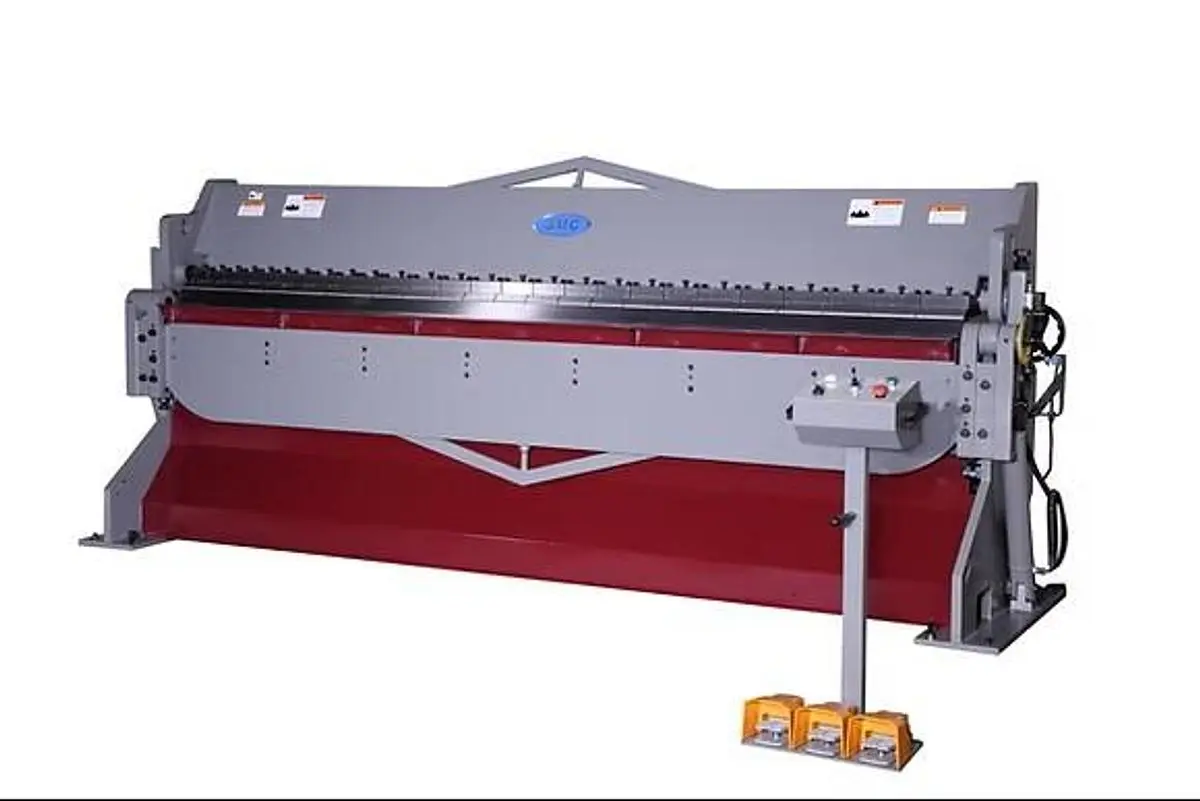

NEW GMC MACHINE TOOLS HBB-0610

Max Bending Length: 72"
Bending Capacity - HRS: 10 Ga.
Bending Capacity - Stainless Steel: 12 Ga.
Bending Capacity - Soft Aluminum: 1/4"
Min Material Thickness: 26 Ga.
Opening hem max thickness: 16 Ga x 72"
Closing hem max thickness: 26 Ga x 72"
Max Box & Pan Depth: 6.02" (153mm)
Large Beam Opening: 3"
Manual Go-To Back Gauge: 26"
Oil Tank Capacity: 12 Gal.
Main Motor: 5 HP, 3 Phase, 220V/15A (optional 440V/10A)
Machine Dimensions: 91 x 4 x 67"
Machine Weight: 5,000 lbs.

Standard Features:
Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Germany Rexroth Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement
Total pieces fingers assortment:3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs

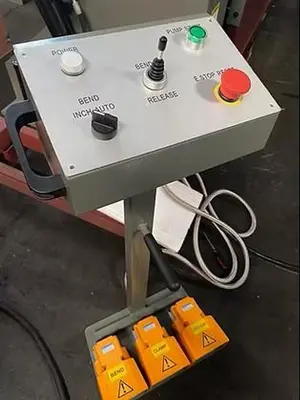

Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts

Standard Equipment:

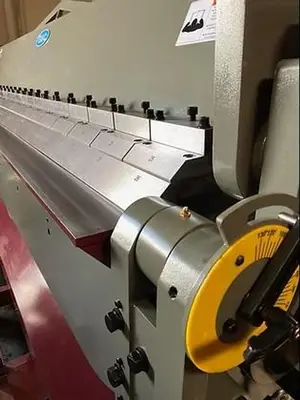

Assorted fingers
26” manual back gauge with one side handwheel operation

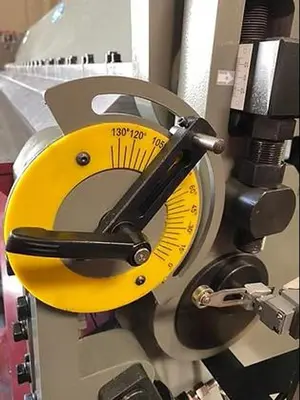

Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
