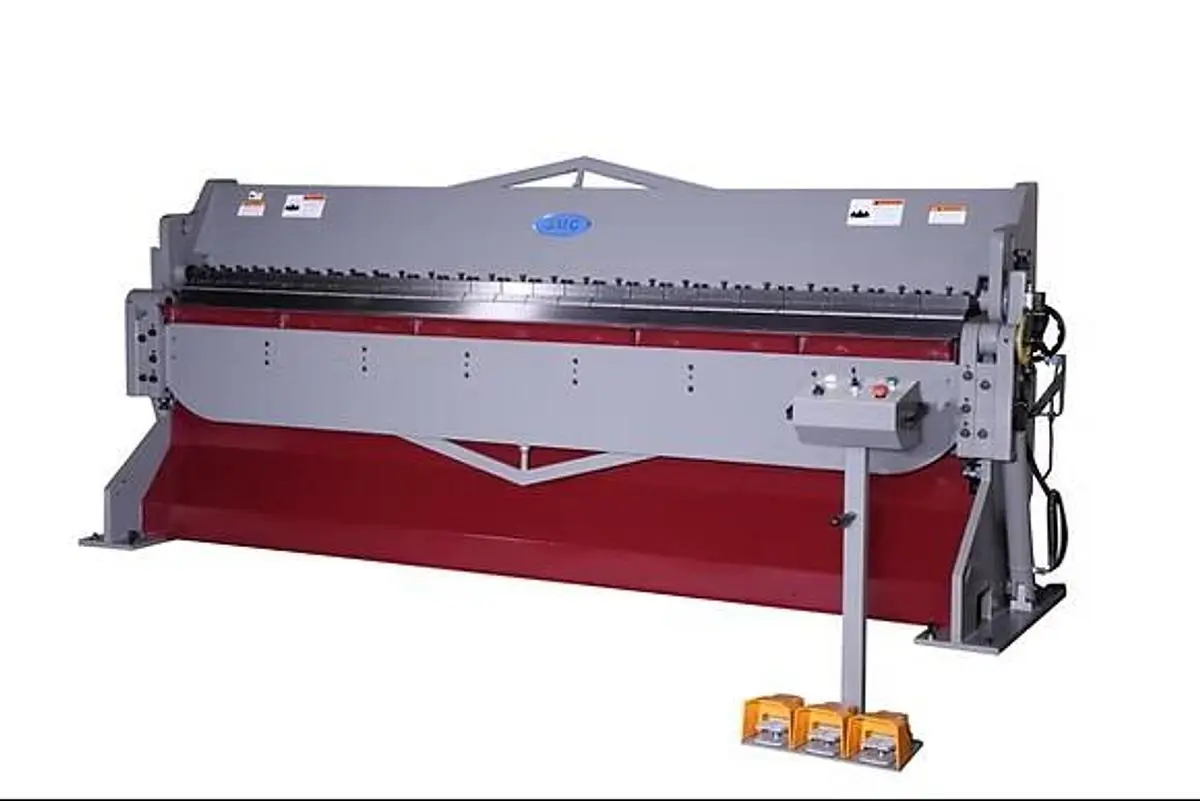

NEW GMC MACHINE TOOLS HBB-1010

Max Bending Length: 120"
Bending Capacity - HRS: 10 Ga.
Bending Capacity - Stainless Steel: 14Ga.
Bending Capacity - Soft Aluminum: 1/4"
Min Material Thickness: 26 Ga.
Opening hem max thickness: 20 Ga x 120"
Closing hem max thickness: 24 Ga x 120"
Max Box & Pan Depth: 6.02" (153mm)
Large Beam Opening: 3"
Manual Go-To Back Gauge: 26"
Finger Length: 10'1"
Bending Degree: 135 degree
Oil Tank Capacity: 32 Gal.
Main Motor: 10 HP, 3 Phase, 220V/15A (optional 440V/10A)
Machine Dimensions: 142 x 46 x 66"
Machine Weight: 8,050 lbs.

Standard Features:
Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Germany Rexroth Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement
Total pieces fingers assortment:
HBB-0410 & 0412: 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
HBB-0610 & 0612: 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
HBB-0810 & 0812: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/2pcs
HBB-1010 & 1014: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
HBB-10316: 4”/3pcs, 5”/5pcs, 6”/5pcs, 7”/3pcs, 8”/ 4pcs
HBB-1214: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/10pcs

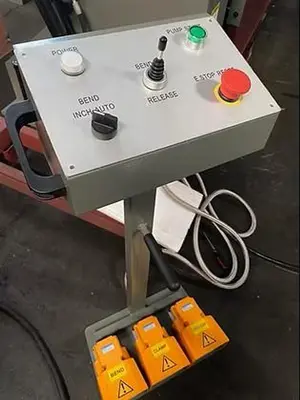

Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts

Standard Equipment:
Assorted fingers
26” manual back gauge with one side handwheel operation

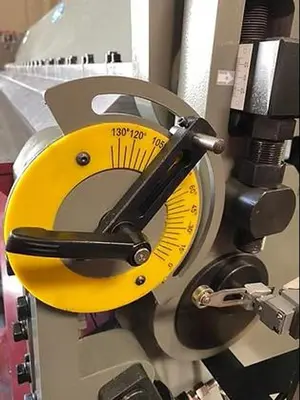

Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
