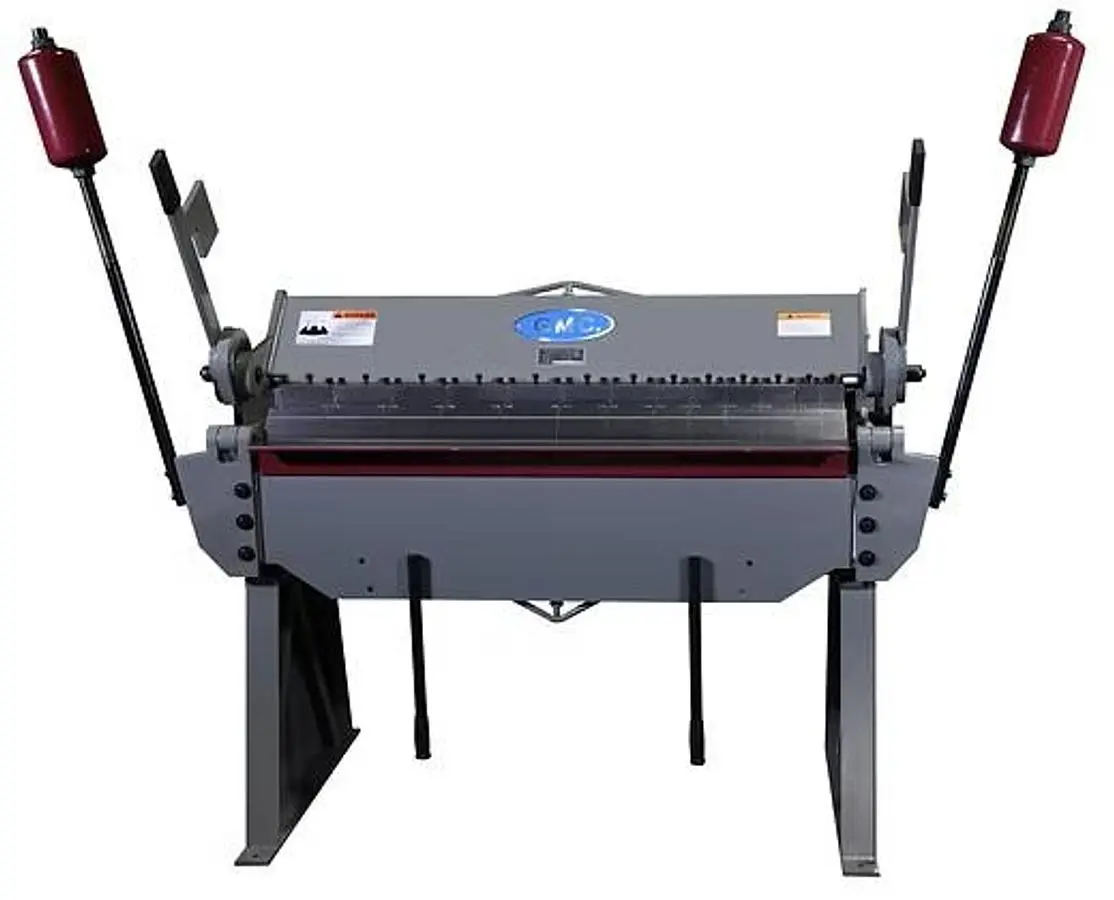

NEW GMC MACHINE TOOLS BB-412-6HD
Specs
Bending Capacity: 12GA (mild steel); 16GA (stainless steel); 3/16" (soft aluminum)
Max. Hemming Thickness: 26 GA (mild steel)
Max. Box Depth: 6"
Bending Length Capacity: 48"
Bending angle: 0 - 135 degrees
Beam Adjustment, Front and Back: 1"
Min. Reverse Bend: 1/2"
Manual Clamping: Standard
Beam Opening: 1 9/16"
Approx. Machine Weight: 1,150 lbs.
Overall Dimensions (approx.): 82 x 32 x 69"H
Equipped With
Standard Features:
ISO 9002 certified
1-year parts only warranty
Large 1-9/16” beam opening, adjustable

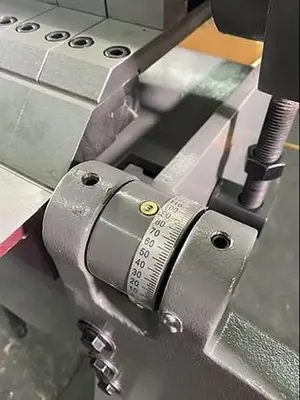

135 degree bend angle capacity with built in scale
2 - handwheels on the rear to ajust the gap
1” beam adjustment (front and back)
Hem light gauge material 26 Ga. or thinner
2 - 30 lbs. adjustable counterweights
May require 2 or more people
Includes 9 fingers total: (measures 49")
2 - 2"
4 - 3"
2 - 4"
1 - 25"
1 - Simple stop rod is included to make repeat bends
All steel heavy body construction with extra heavy tie rod for minimum deflection
