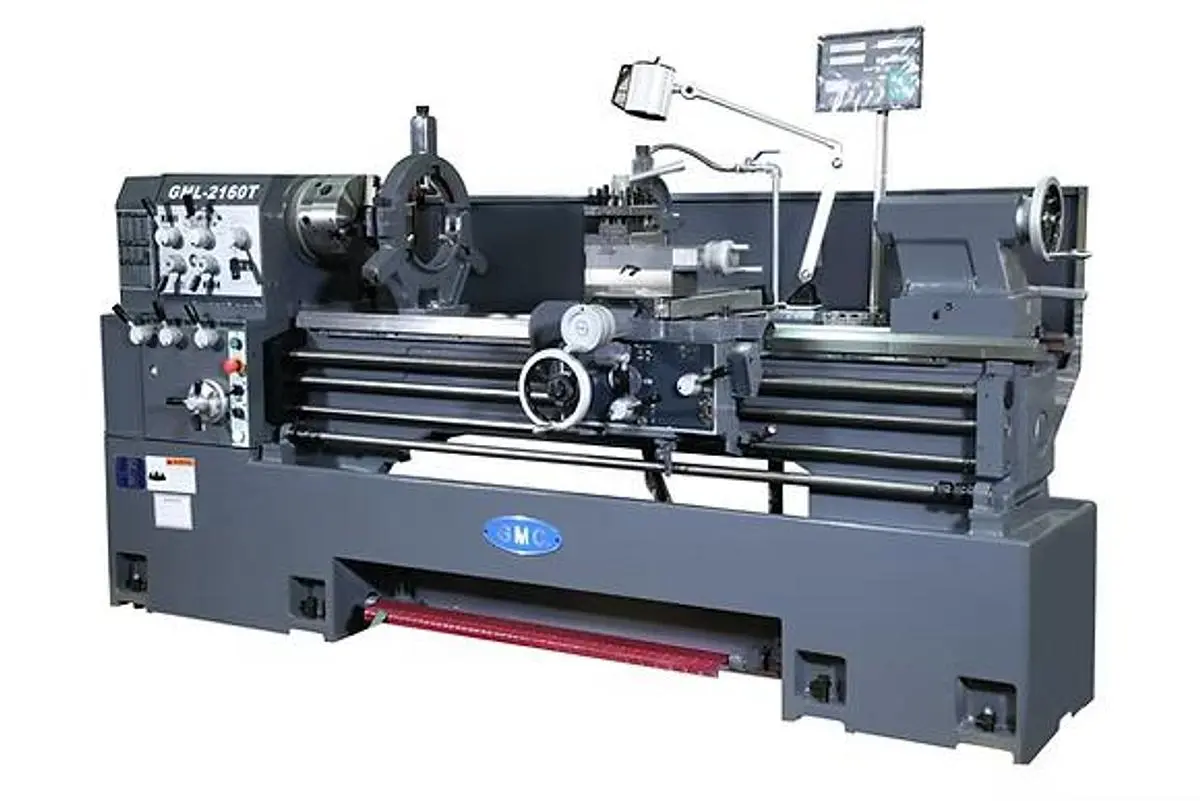

Product: Lathes
Max Swing Over Bed: 20 1/2"
Max Workpiece Length: 60"
Max Swing Over Cross Slide: 13"
Max. Swing in Gap: 29 1/8"
Bed Width: 12"
Effective Length in Gap to Spindle: 6"
Effective Length in Gap to Chuck Jaws: 3 1/2"
Spindle Bore: 3 1/8", D1-8
Spindle Speed: 40-2,000 RPM / 12 STEPS
Main Motor: 7 1/2 HP, 220V or 440V, 3 Phase
Coolant Pump: 1/8 HP, 220V or 440V, 3 phase, 2 Gal Coolant
Overall Dimensions (approx.): 105 x 41 x 59"
Weight (approx): 4,150 lbs.
Made in Taiwan-100% made in Taiwan, by top manufacturer with very high level of quality
One piece solid casting base, Meehanite high performance cast iron
Machine bed is made of Meehanite casting – high performance cast iron
Equipped with:

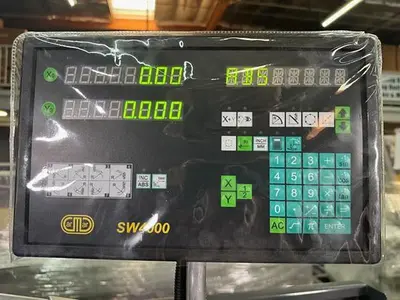

Free CARMAR DRO, installed
Automatic kick-out longitudinal carriage stop system
10” 3-jaw chuck with top reversible jaws, direct mount
16” Face plate

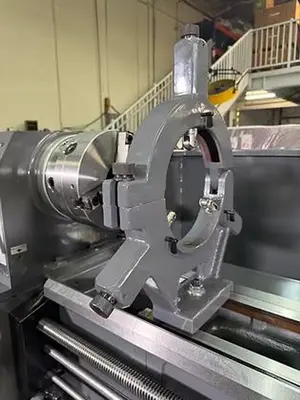

9” steady rest with roller jaws
4” follow rest with roller jaws
Removeable gap
4-way tools post
Foot brake
LED Work light
coolant system

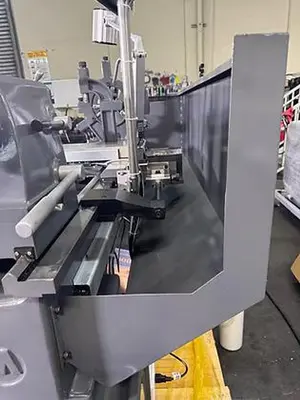

full length rear splash guard
Dead centers
Thread chasing dial
Reducing sleeve MT6/MT5 for spindle
Tool box and leveling pads
1 Year Warranty on Parts
Standard Features:
ISO 9001 certified
Large spindle bore 3-1/8”
Heavy Duty spindle D1-8
Heavy Duty guideway width 12”

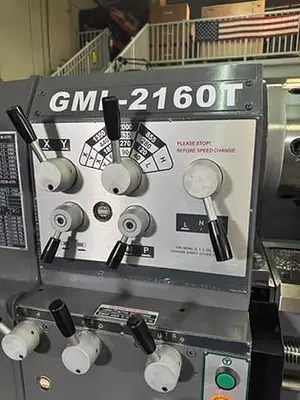

Spindle speeds from 40-2,000 rpm, 12 speeds
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
*Disclaimer*
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
