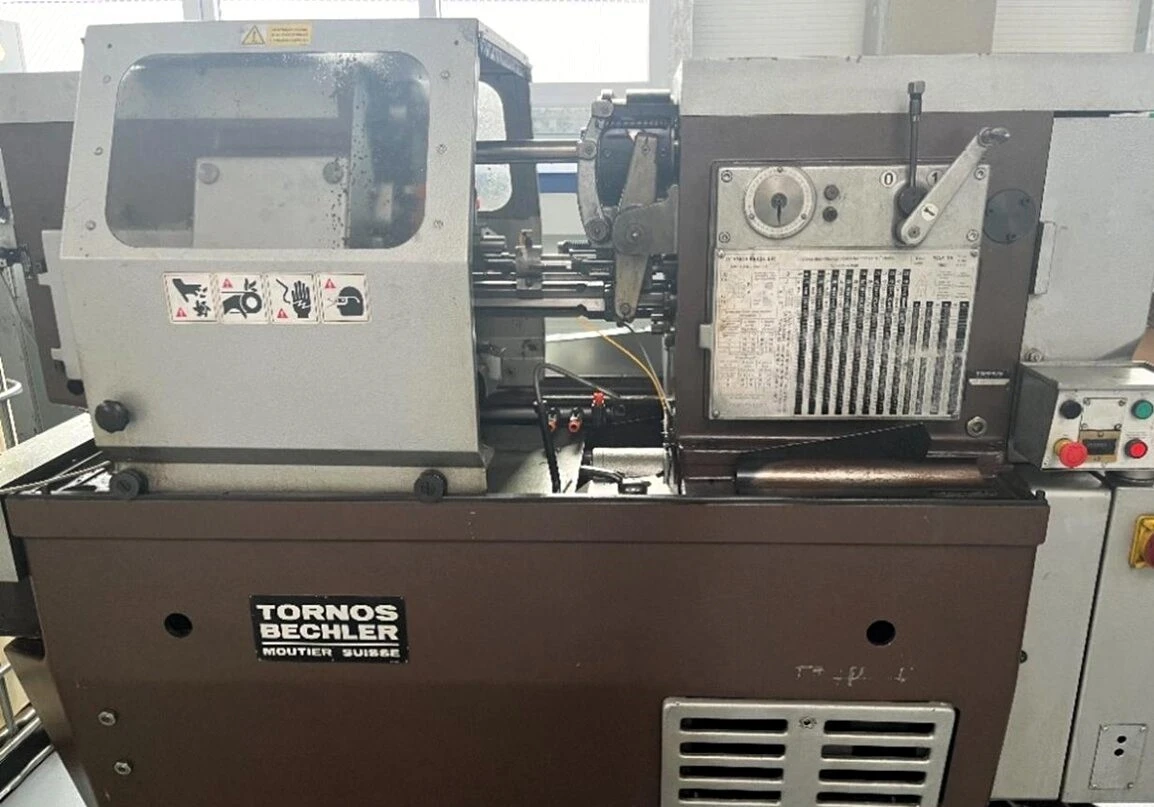

NEW TORNOS-BECHLER SAS16

TECHNICAL CHARACTERISTICS
Number of spindles 6
Max. capacity : Round (diameter) mm 16 (17) .630” (.670’’)
Hex (on fl at) mm 13 .512”
Square mm 11 .433”
Spindle speed (3 ranges) rpm 800 to 8’000
Range 1 - Ratio 1 rpm 800 to 2’000
Range 2 - Ratio 2 rpm 800 to 4’000
Range 3 - Ratio 3 rpm 800 to 8’000
Production Speed p / min. 3 to 80
Max. length of feed stroke with standard cam mm 63 2.480”
Max. part length with standard cam mm 52 2.047”
Max. length of feed stroke with cam for long part mm* 85 3.346”
Max. part length with long part cam mm* 75 2.953”
Number of cross-slides 6
Travel of the cross-slides mm 20 .787”
Number of independent advances 4
Travel of the independent slide mm 45 1.772”
Travel of the central slide mm 50 1.968”
Amount of working degree ° 205
Spindle motor
Max. torque Nm 70 52 ft. lbs.
Camshaft motor
Nominal torque Nm 5,9 4.35 ft. lbs.
Max. speed rpm 3’000
Coolant pump motor (50 Hz)
Speed rpm 1’500
Power kW 2,2 3 HP
Pump capacity (at 60 Hz) l / min. 95 (30 gallons / min.)
Manufacturing standards In accordance with current EEC Specifi cations
Indexing of spindle carrier Manifold
Locking of spindle carrier Hirth Toothed Coupling
