For sale: Brand new SHIMADA KITAKO VT4-350 Vertical CNC lathe from Blackout Equipment, LLC. This high-quality CNC lathe features a 16" swing, 10.6" machining length, and 4-axis capability. With a powerful 30hp motor and a max RPM of 3,200, it offers precision and efficiency. The X and Z-axis strokes of 12" and 18" respectively provide ample space for your machining needs. Equipped with a 15" chuck, this lathe offers superior versatility. Trust Blackout Equipment, LLC for all your equipment needs.
| Swing | 16" | 406.4 mm |
| Machining Length | 10.6" | 269.24 mm |
| # Axis | 4 | 4 |
| Chuck Size | 15" | 381 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,200 RPM | 3,200 RPM |
| Turning Dia | 13.8" | 350.52 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (FANUC 0i TD) | CNC (FANUC 0i TD) |
| Dimensions | 119" x 117" | 119" x 117" |
| Weight | 26,620 lbs. | 26,620 lbs. |
Model VT4-350
Max. Turning Diameter 13.8"
Max. Turning Length 7.9"
X-Axis Stroke 12"
Z-Axis Stroke 18"
X-Axis Rapid Feed 788"/min.
Z-Axis Rapid Feed 788"/min.
Spindle Speed Range 3200 rpm

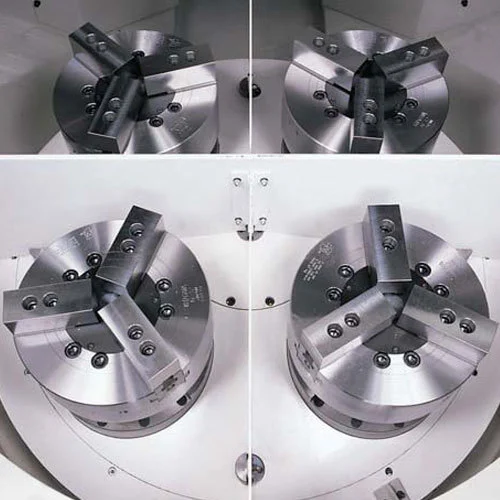

Number of Spindles 4
Spindle Nose ASA A2-8
Carrier Index Time 180° / 6.0sec. 90°/ 5.0sec.
Turret Tool Capacity 8 (OD:4, ID:4)
As a FM-cell, the machine facilitates automation of a manufacturing line, and because of its vertical type, enables handling of heavy workpieces
While machining on No.1 & No.2 spindle , part loading and unloading is done on No.3 & No.4 spindle 5 seconds for carrier indexing time which is the only time needed for part loading / unloading
Various machining method
1.Part reversing--Front and back side operation machining simultaneously
or 2.Two parts at one cycle (w workpieces at a time )--Twin single operation leads to 1/2 cycle time or 3.Two different parts simultaneously on one machine--Part A and Part B machining simultaneously
