USED 2014 SEYI SM2-400
Overview

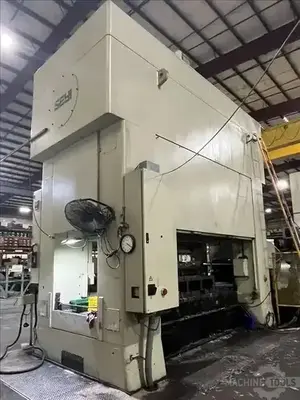

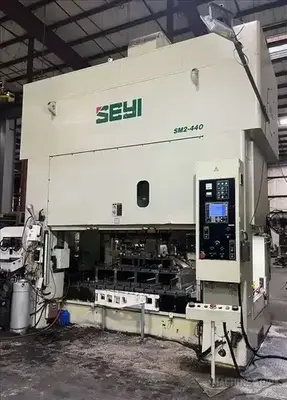

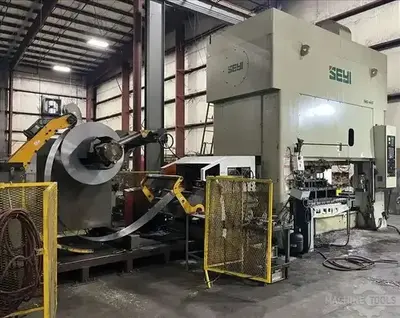

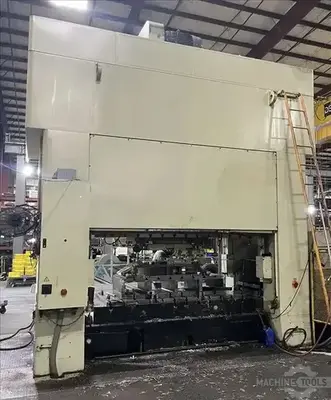

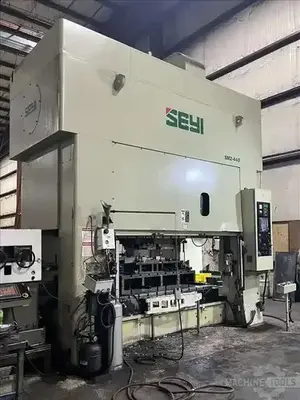

Seyi SM2-400 440 Ton Progressive Stamping Link-Motion Press
Specs
Tonnage Capacity (US Ton): 440 Ton @ 0.25" ABDC
Stroke Length: 7.87"
Stroke Speed: 30 - 80 SPM
Die Height Over Bolster: 33.5"
Bolster Area (L-R x F-B): 106" x 47"
Slide Area (L-R x F-B): 106" x 43"
Bolster Thickness: 9.8"
Slide Adjustment: 3.9"
Window Width: 35.4"
Main Motor: 60 HP

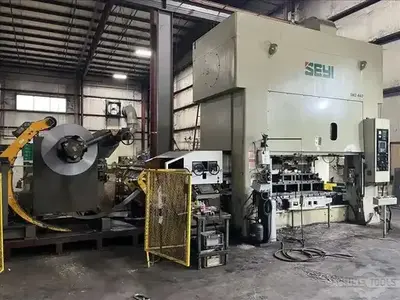

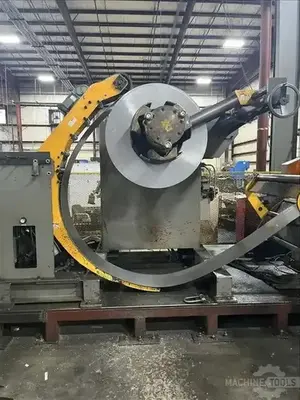

Servo Coil Line
Max. Coil Weight Capacity: 15,000 lb.
Max. Coil Thickness @ 39" Width: 0.098" Mild Steel
Max. Coil Thickness @ 17.9" Width: 0.157" Mild Steel
Max. Coil Thickness @ 7.9" Width: 0.236" Mild Steel
Max. Line Speed: 72 FPM

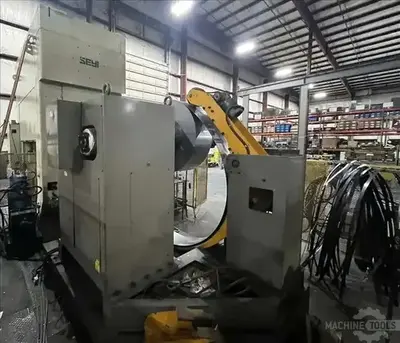

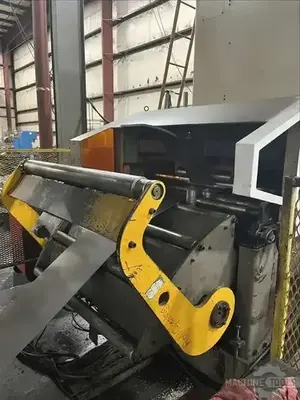

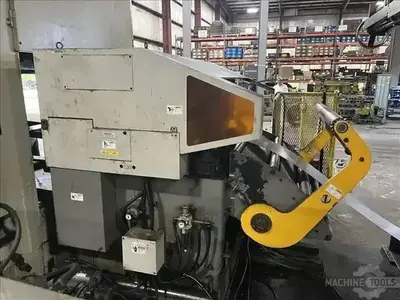

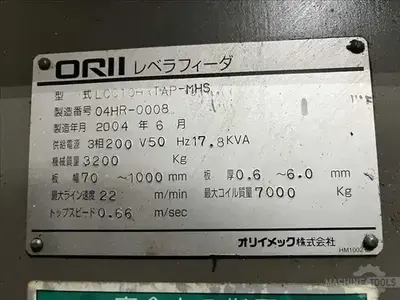

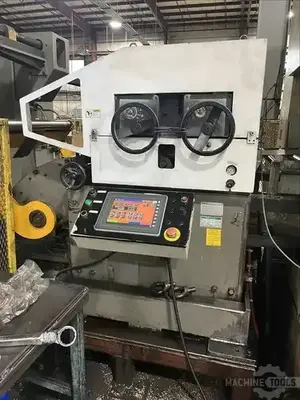

Orii LCC10HR-TAP-MHS Spacesaver Servo Coil Line

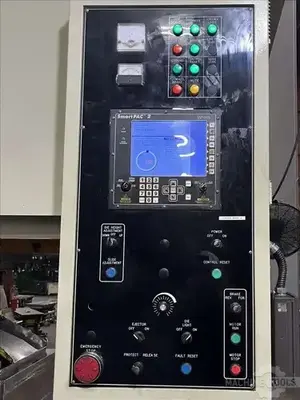

SmartPac2 Control
Operator T-Stand w/ Dual Palm Buttons
Link Drive
Wet Combination Clutch & Brake
Hydraulic Overload Protection
Micro Inching
Recirculating Oil Lube
