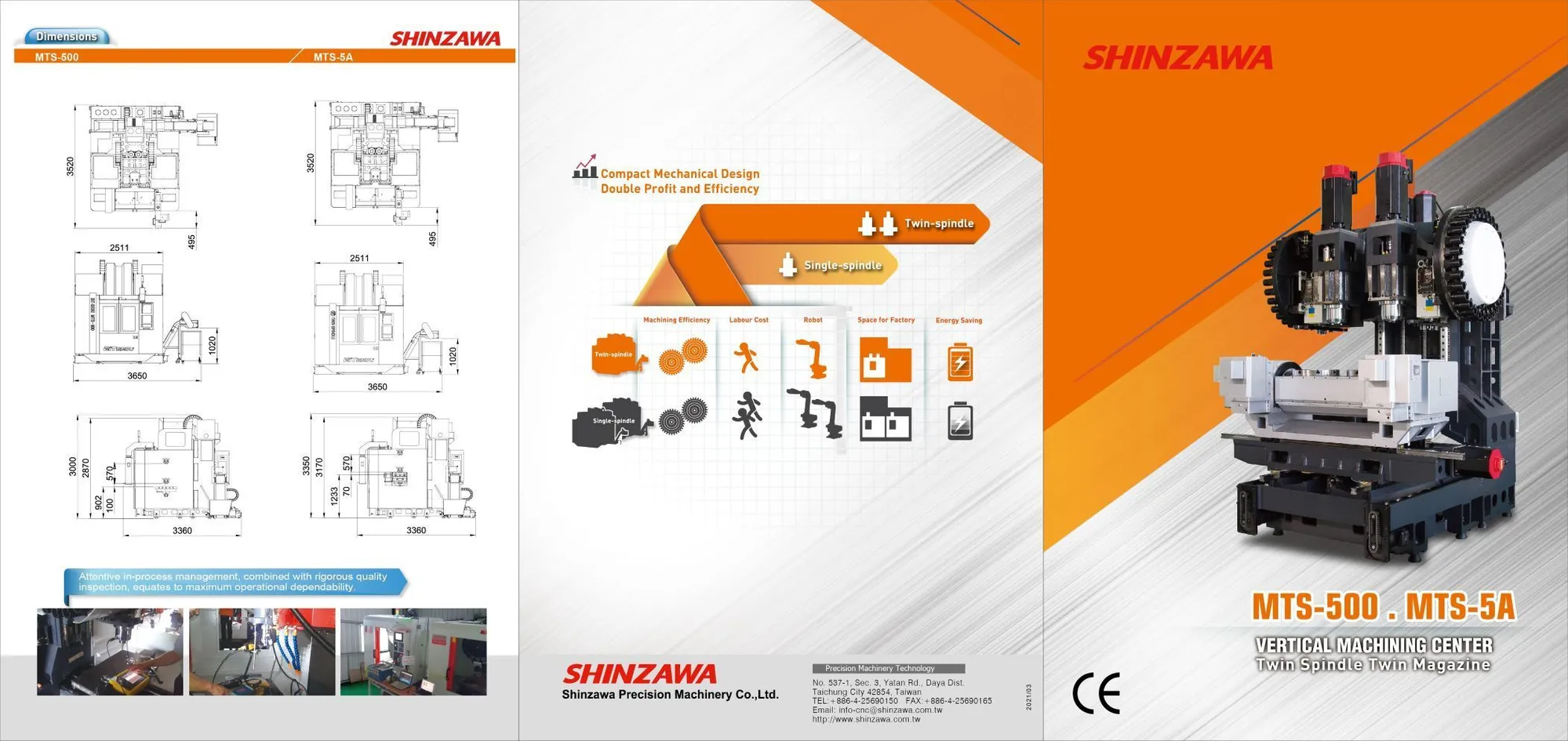

NEW 2023 SHINZAWA MTS-500

SHINZAWA Model MTS-500 Twin Spindle, Twin ATC Vertical Machining Center
Double efficiency with patented dual-spindle design, the twin spindle can perform tool offset, which not only improves processing efficiency and doubles production capacity, but also greatly saves the floor space of the factory plant.

X / Y / Z axes travel 19.69" x 23.62" x 22.44"
Table size 59.06" x 23.62"
Distance Between Spindles 19.69
Spindle Nose to Table Surface 3.94" to 26.38"
Max. loading capacity 1,540 lbs
Spindle speed 10,000 RPM
Spindle motor 15 HP
Spindle taper - BT-40
Tool capacity Pcs 24T (Option-30T)
Tool Weight 15.4 lbs.
Max Tool Size 2.95"
Max Tool Length 11.81"
Tool Change Time 1.5 sec.
X / Y / Z Rapid Feedrate 36 / 36 / 30 m/min
L x W x H Measurements 143.7" x 138.58" x 118.11"
Net weight 18,480 lbs.
