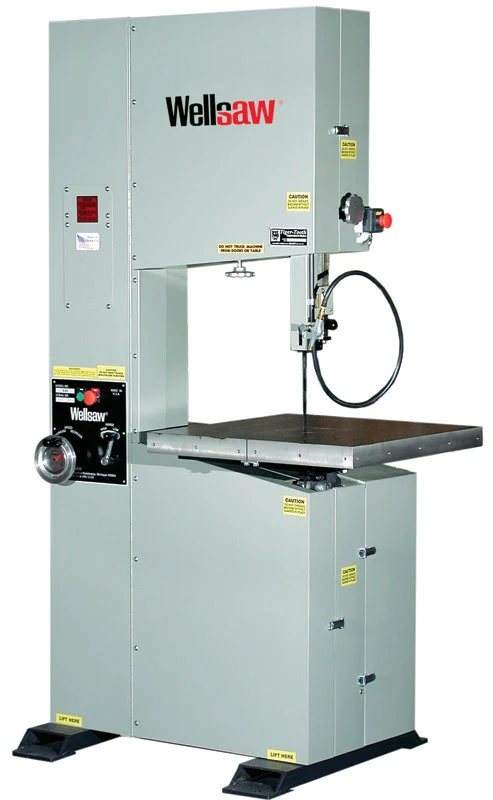

NEW 2025 WELLSAW V20F

WELLSAW Vertical Bandsaw Model V20F 20" Deep Throat, 16" High Table to Guide
Wellsaw manufactures a full line of high quality metal cutting bandsaws with features and construction that ensure accurate cutting, ease of operation and long service life.
Wellsaws are built to the highest standards from domestic components to ensure peak performance for many years. Wellsaw is famous for building machines that cut straight and last for ages.

All Wellsaws are made at our factory in Southwest Michigan. This means that you get immediate support, both with service parts and technical assistance. Wellsaw carries a full inventory of parts for models built since 1933 and most orders ship the same day that they are received. When you call our factory you will not enter a voice mail system but speak directly with one of our Customer Support people. They know band sawing and know how to help! When you buy a Wellsaw you’ll enjoy years of trouble free, accurate cutting.

Voltage and Phase (motor type) Wellsaw Part Number

115/60/1 (2HP) DL V20F-731
208/60/1 (2HP) DL V20F-776
230/60/1 (2HP) DL V20F-748
208/60/3 (3HP) DL V20F-749
230/60/3 (3HP) DL V20F-750
460/60/3 (3HP) DL V20F-751

Choose only one part number when ordering
Please select one voltage and phase at time of order. Machine is not multi-voltage.

Specifications:
Capacity:
Throat 20" Deep
Table to Guide: 16" High
Blade Size
Standard Width 3/16" through 3/4"
Optional Width 1/2" through 1"
Length: 14’-9"
Wheel Travel 3-1/2"
Band Wheels 21" Cast Aluminum with replaceable rubber tires
Blade Guides Six Sealed Roller Bearings w/ 90° Rotation Feature
Table Size 26" x 26" Cast Iron
Tilt 5° Inside and 45° Outside
Table Height 37-1/2"
Drive Motor
208/230/460 Volt Three Phase 3 HP
208/230 Volt Single Phase 2 HP
115 Volt Single Phase 1.5 HP
Blade Speed SFPM (Infinitely Variable)
Low Range 45-400
High Range 325-3000
Gear Transmission Two Speed Oil Bath
Chip Blower Valve and Regulator Uses Shop Air
Dimensions
Length: 48”
Width: 32”
Height: 83”
Shipping Weight 915 lbs.

Features Include:
Heavy Tube Steel Frame
Precision Ground Cast Iron Table with replaceable throat plate
Unique Heavy Duty Rollers Guides
Blade Guides Rotate 90° to accommodate long materials
not used with 1” blade option
Baldor® High Efficiency Motor
115 Volt at Controls
Powered rotary blade brush

VFD Variable Blade Speed Motor Controller
Two Speed Oil Bath Gearbox with Helical Gears for Quiet Operation
Blade Speed Indicator
Blade Tension Indicator
Flexible Arm Work light
Under Voltage and Overload protection
Chip Blower / Removable Chip Tray
1/2" Bi Metal Blade standard

Options for Consideration:

2

Combination Rip Fence & Miter Gauge DL V20F-802 1,106.00
Rip Fence only 26” DL V20F-803 561.00
Miter Gauge only DL V20F-804 705.00
1" blade Option, includes wider guide rollers and blade DL V20F-552 101.00
Worklight STD
Sealed Electrical System for Sawing Graphite or Aluminum DL V20F-735 1,888.00
Vacuum Nozzle DL V20F-872.00 165.00
Maximum Speed Option, 4,000SFPM DL V20F-858 201.00
Blade Welder, Grinder and Shear (made in Germany) DL V20F-729 3,860.00
Vibration Mounts / set of four 098041-004 91.00
Table Extension, side, 26” x 26” w/ leg DL V20F-890 415.00
Table Extension (shelf), front, 26” x 12” * DL V20F-891 305.00
* Not used with Rip Fence/Miter Gauge Option
Spare Parts Kit npn 431.72
Spare Parts Kit, with 1″ Blade npn 628.80
Tiger-Tooth ® Spare Blades, Bi-Metal, package of six, ½″ 098003-065W 558.81
Lubrication
Spray Mist Lubricant System (water based) DL V20F-601 887.00
Tiger-Tooth® Lubricant for Spray Mist

(one gallon, water soluble) 100318-027 42.50
Micro Lubricant System (MQL) DL V20F-902 1,086.00
Tiger-Tooth® Oil for Micro System, (MQL) 1 gallon 1003318-028 71.00
XTRA-Foamy®, aerosol, 17 oz 100318-300 28.30
WAXX® Stick Lubricant, 13 oz. 100318-400 26.55
Disconnect Options
Fused Disconnect/ Lever Type/ NEMA 1 DL V20F-912 893.00

OR

Fused Disconnect/ Rotary Type/ NEMA 12 DL V20F-732 861.00
Material Handling
Gravity Roller Conveyor, 18” x 5 ft 098050-013 855.00
Gravity Roller Conveyor, 18” x 10 ft 098050-014 1,429.00
Stock Stand, single roller 18” 098047-002 217.00
Consult Factory for Additional Options
Prices subject to change without notice.
