| Mandrel Dia. (min) | 0.06" | 1.524 mm |
| Mandrel Dia. (max) | 4" | 101.6 mm |
| Stroke (min) | 0.236" | 5.9944 mm |
| Stroke (max) | 6.7" | 0.2 m |
| Horz/Vert | Horz | Horz |

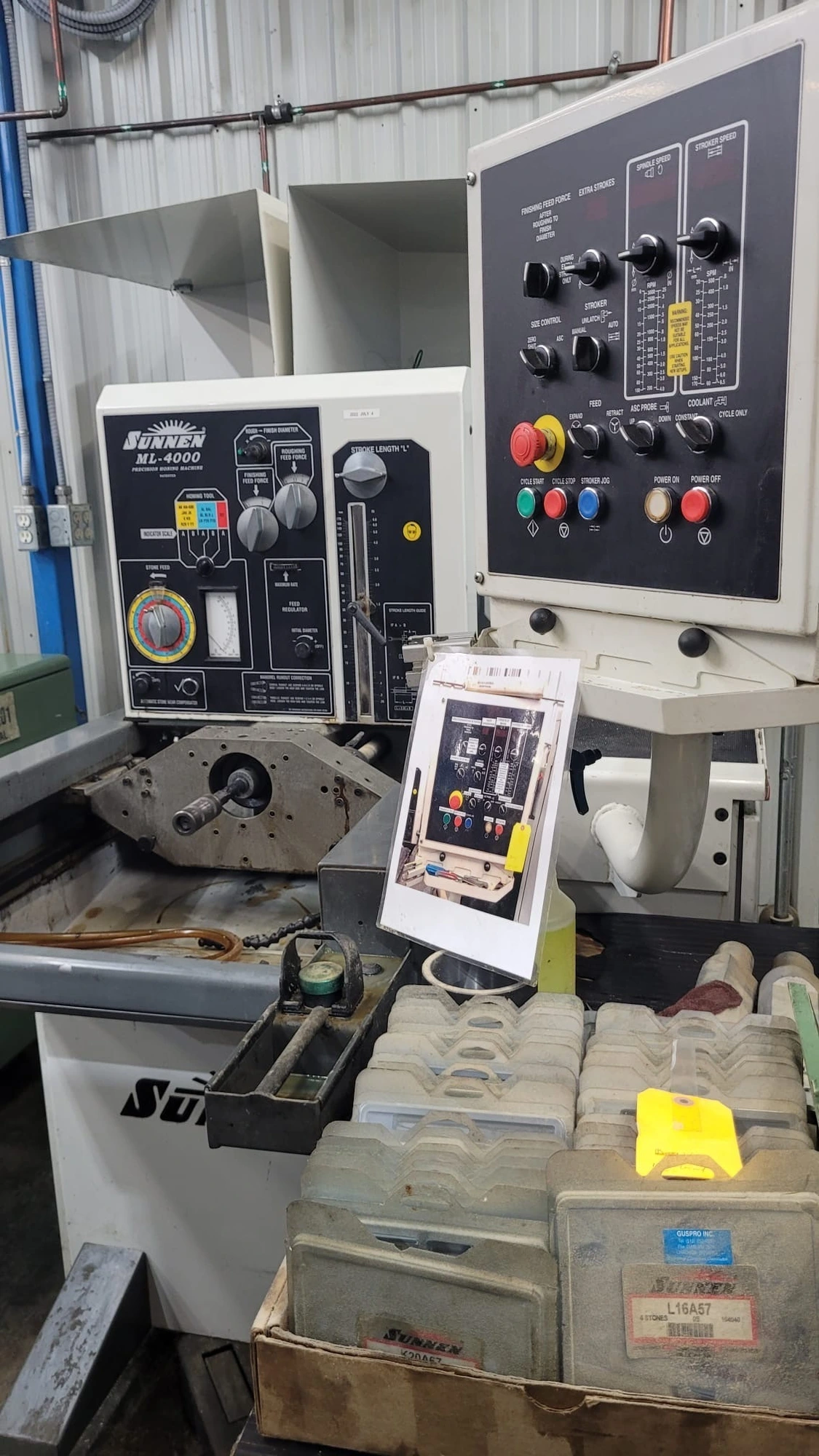

Sunnen ML-4000 Horizontal Honing Machine (2007)
SPECIFICATIONS:
Diameter Range (ID) – Manual Stroking……………………..0.060″ – 6.50″
Diameter Range (ID) – Power Stroking………………………0.060″ – 4.00″
Automatic Sizing…………………………………………1.25″ – 2.00″
Stroke Length…………………………………………..0.236″ – 6.70″
Spindle Speeds………………………………………….200 – 3000 RPM
Stroke Rate………………………………………………60 – 500 SPM
Spindle Motor………………………………………………….5.5 HP
Stroker Motor………………………………………………….1.5 HP
Pump Motor…………………………………………………….1/2 HP
Coolant Flow………………………………………….3 Gallons/Minute
Coolant Capacity……………………………………………32 Gallons
Electrical………………………………………..230V/3Phase/50/60 Hz
Pneumatic Requirements………………………………………….80 PSI
Approximate Dimensions……………………………..64″ L x 48″ W x 75″H
Approximate Weight………………………………………….1,875 Lbs.
