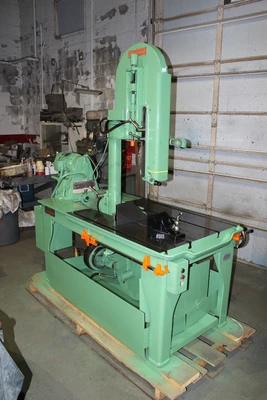

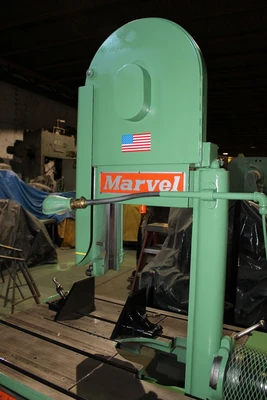

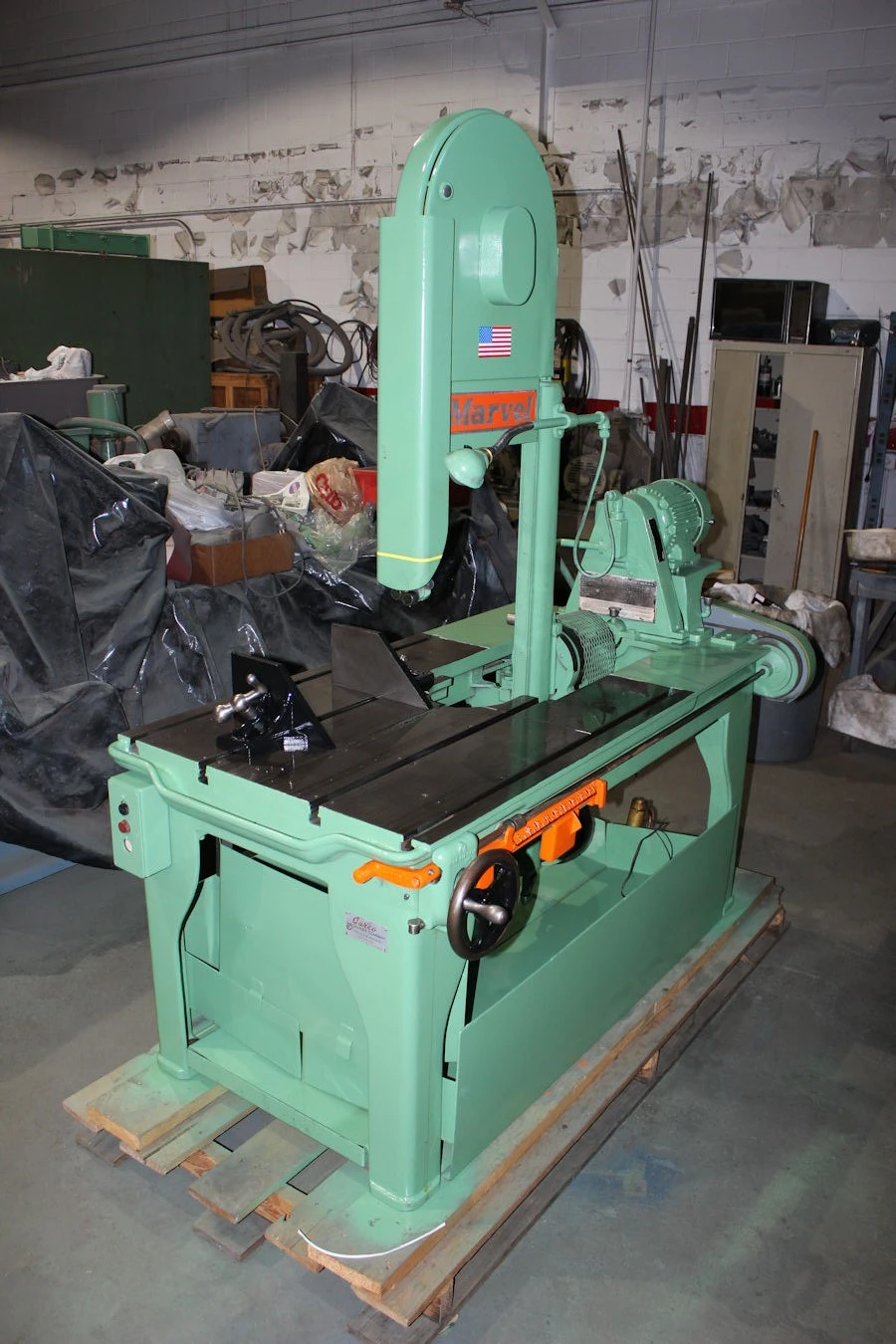

USED MARVEL NO. 8/M3/M4/E1

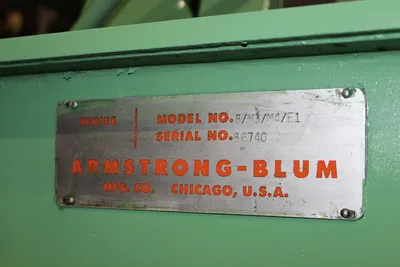

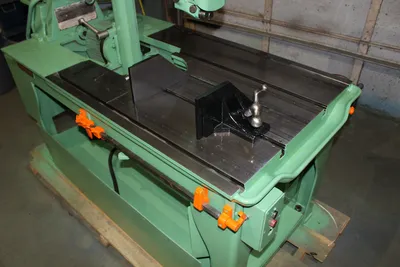

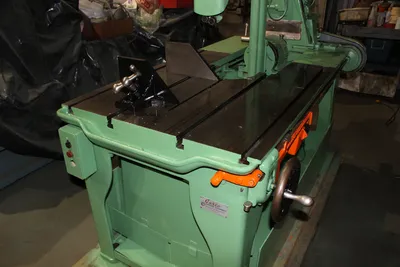

Series 8, Model No. 8/M3/M4/E1, S# 86740, 32.75" x 25.5" Table, High column, Capacity:
24" x 18", 45° Capacity: 20.75" x 18", Blade capacity 3/4" x 15' 8"

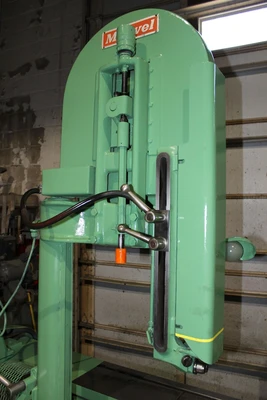

x .032 (no blade on machine), Manually adjusted built in protractor, Vertical column tilts 45° L/R,
Hand wheel in feed, Has direct reading feed scale balance beam, Feed pressure on blade 0 to 8 settings,

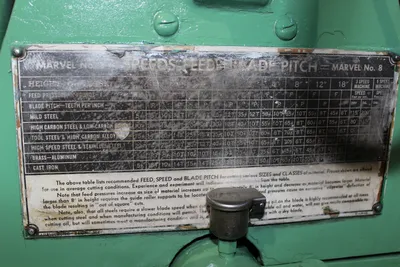

Follow feed chart attached to machine, Auto stop dogs, Stop carriage in both forward and return travel,

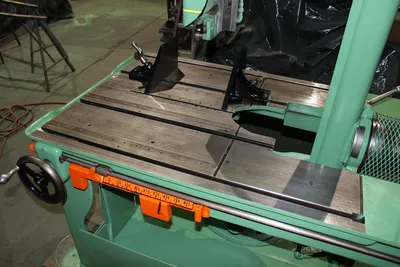

Manual vise 11"L x 6"H, 21" Max opening, Oil cup lube system, Coolant chip catch tray,

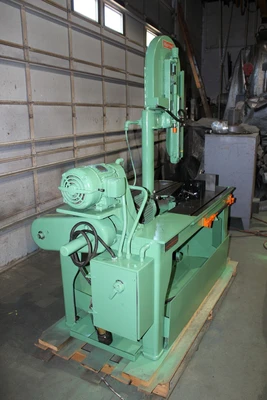

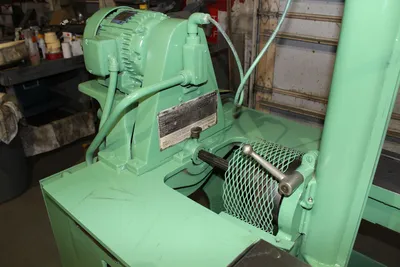

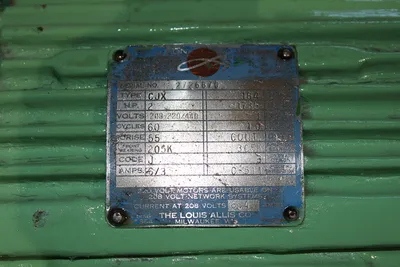

Work light, 3 Way flat belt drive system, Drive motor 2hp 208-220/440v 3ph, Overall Dim. 7' 5"L
x 42"W x 7' 11"H, Est. Wt. 2,750 lbs.
