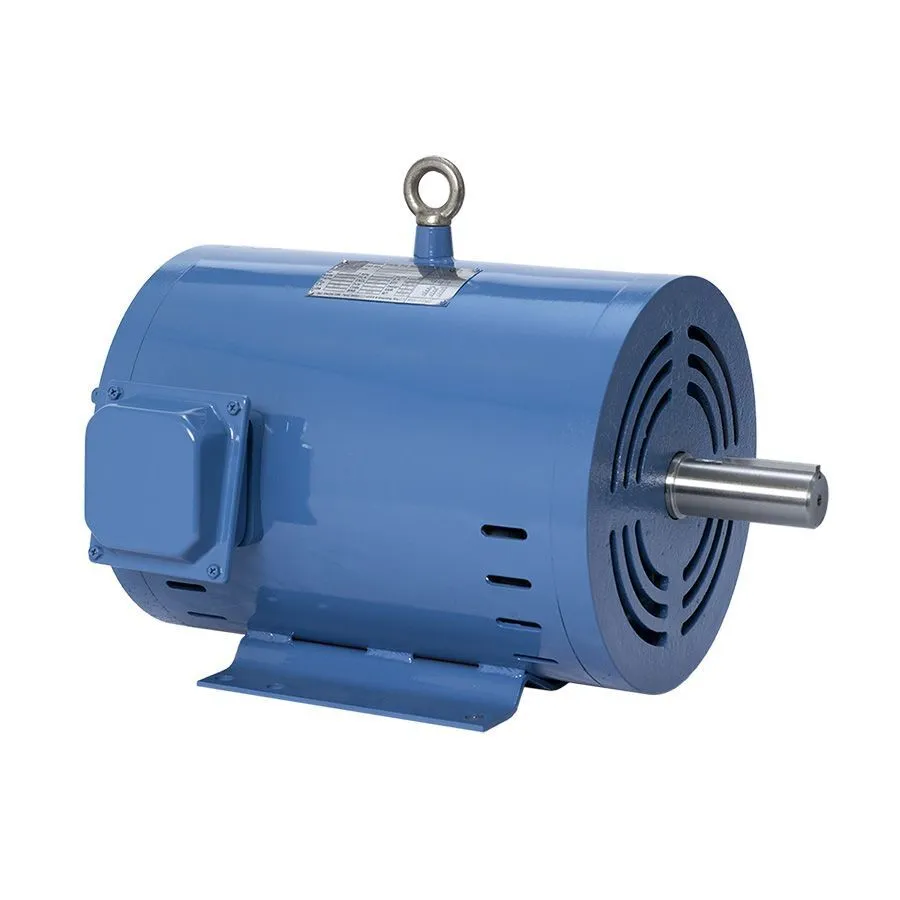

NEW Galt Electric GDP0400-4-324T-K
Overview
Description
GDP0400-4-324T-K - 40HP, 1800RPM, 3-Phase, 208/230/460V, 60Hz, 324T, open drip proof AC motor. Our motors will keep your operations up and running, with a precision balanced aluminum rotor, oversized bearing, inverter duty Class F insulation, better fit and finish, and many other features all backed by a 3 year warranty. Our engineering prepares for the unexpected, so you don't have to.
Specifications
| Power | 40 hp | 29.8 kW |
|---|
Model: GDP0400-4-324T-K
Brand: GALT ELECTRIC
Product Condition: New
Warranty: 3 Years
Full Load Torque: 118.8
Phase: Three Phase
Service Factor: 1.25
Insulation Class: F
Duty Cycle: Continuous
Power Factor: 0.83
Efficiency: 94.1%
C Dimension: 27.1
Horsepower Rating: 40 HP
Synchronous RPM: 1800 RPM
Frame Size: 324T
Motor Enclosure Type: Open Drip Proof (ODP)
Rated Voltage: 208 V, 230 V, 460 V
Construction: Cast Iron
Rated Input Frequency: 60 Hz
Rated Amps: 48 A, 96 A, 106 A
Series: GDP
