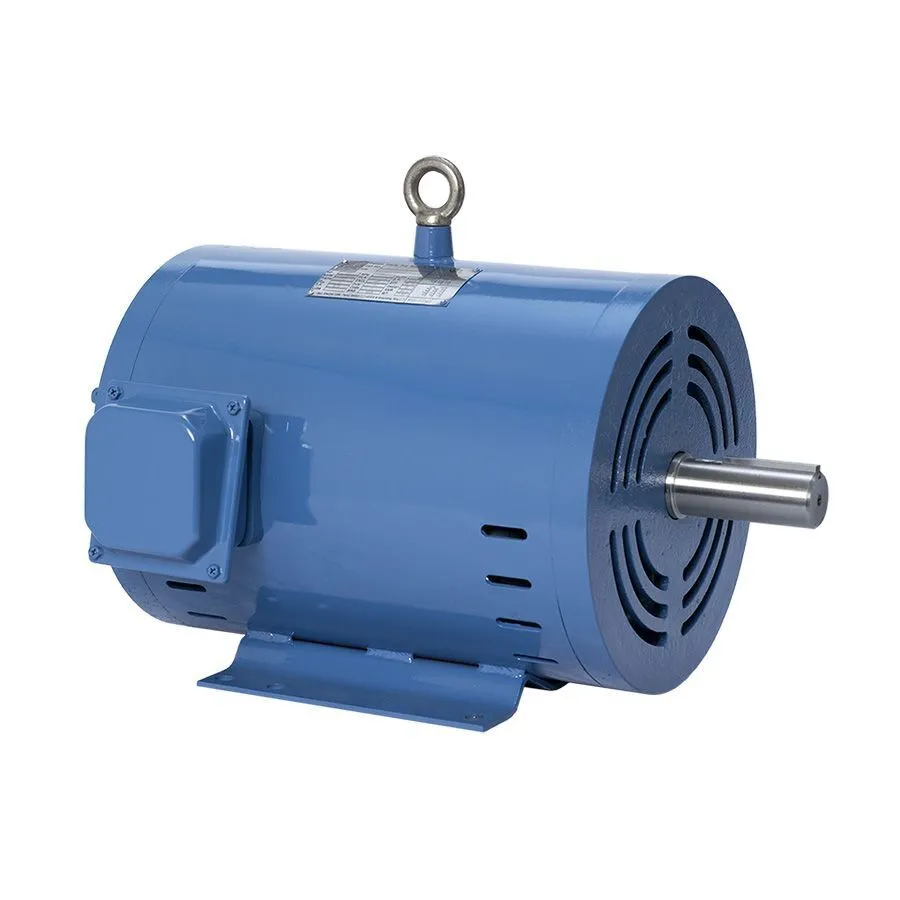

NEW galt elec GDP0250-4-284T-K

NEW galt elec GDP0250-4-284T-K

USD $1,558.46
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
A.C. Motors
Manufacturer:
galt elec
Model:
GDP0250-4-284T-K
Stock #:
GDP0250-4-284T-K
Description

GDP0250-4-284T-K - 25HP, 1800RPM, 3-Phase, 208/230/460V, 60Hz, 284T, open drip proof AC motor. Our motors will keep your operations up and running, with a precision balanced aluminum rotor, oversized bearing, inverter duty Class F insulation, better fit and finish, and many other features all backed by a 3 year warranty. Our engineering prepares for the unexpected, so you don't have to.

Specifications
Power25 hp18.6 kW

Model: GDP0250-4-284T-K
Brand: GALT ELECTRIC
Product Condition: New
Warranty: 3 Years
Full Load Torque: 74.3
Phase: Three Phase
Service Factor: 1.25
Insulation Class: F
Duty Cycle: Continuous
Power Factor: 0.85
Efficiency: 93.6%
C Dimension: 24.8
Horsepower Rating: 25 HP
Synchronous RPM: 1800 RPM
Frame Size: 284T
Motor Enclosure Type: Open Drip Proof (ODP)
Rated Voltage: 208 V, 230 V, 460 V
Construction: Cast Iron
Rated Input Frequency: 60Hz
Rated Amps: 30A, 60A, 66A
Series: GDP
