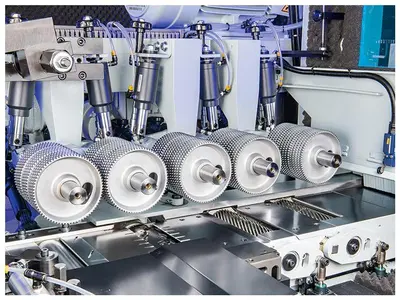

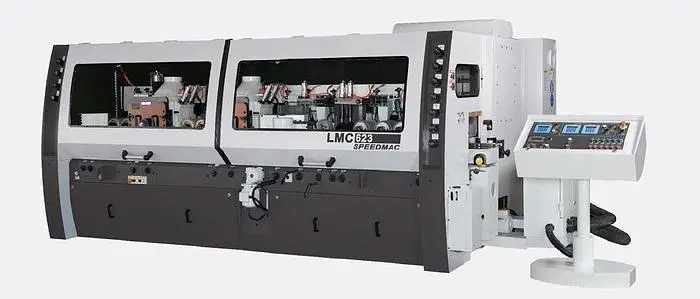

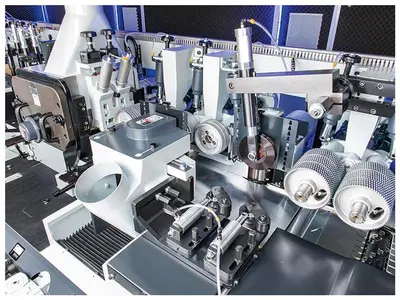

NEW LEADERMAC LMC623 9" 6-HEAD HEAVY-DUTY JOINTED MOULDER

Leadermac LMC623 9", 6-Head Heavy-Duty Jointed Moulder, 33 to 300FPM Feed Rate, 25HP Heads

All spindles have variable frequency drives 4500 - 8000 RPM that act as fully electronic spindle brakes

1 13/16” diameter spindles

Stand-alone operators console that includes 15 ft. of connection cable to main panel

Wired to 460 volts

25HP 1st Bottom Head

20HP Right Side Head

25HP Left Side Head

25HP 1st Top Head

25 HP 2nd Top Head

25HP 2nd Bottom Head

300'/minue feed speed

Optional accessories and equipment included:

Smartset-100 touch screen control system including 250 profile memory and radial setworks on the near side head and top heads

Electronic digital position readouts

Precision hydro-loc outboards for horizontal (top / bottom) heads

Highest precision straight jointers including stem extensions equipped on all 4 horizontal heads

Pneumatically operated in-place cartridge type profi le jointers equipped on

2 side heads, 2nd top head and 2nd bottom head

*Contact us for up-to-date information on availability and a price quote
