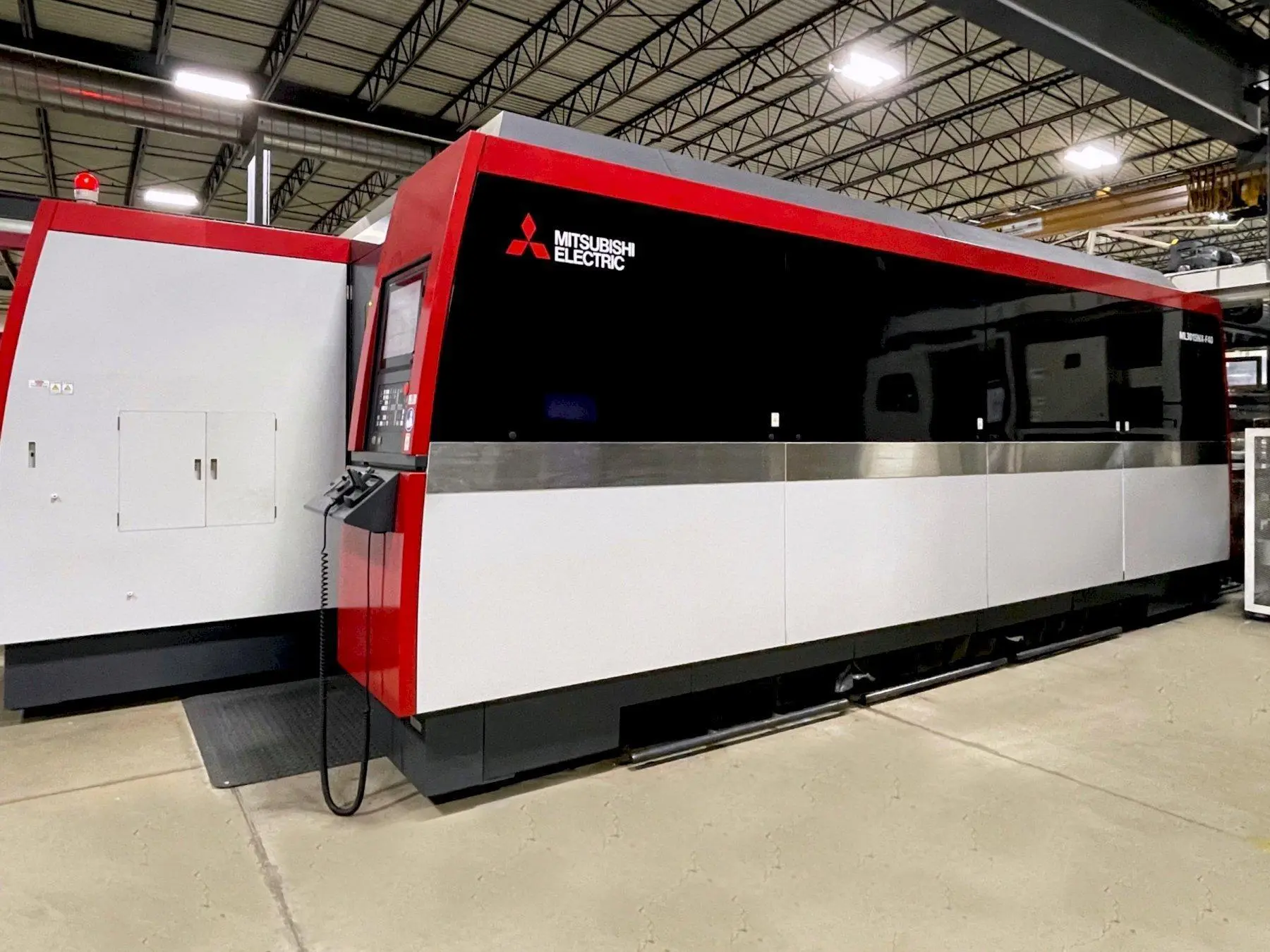

NEW 2015 MITSUBISHI LASER ML3015 NX F-40(S)
Overview
Description
MITSUBISHI ML3015 NX F-40(S) Fiber Laser
Type of CNC Control: Mitsubishi 700 Series
Resonator: IPG YLS-4000 Fiber
Resonator Type: Fiber
Power: 4,000 Watts
Rapid Travel Speed (X,Y): 4724 IPM (Single)
Rapid Travel Speed (X, Y): 6680 IPM (Sim.)
Max Processing Feedrate: 2360 IPM
Output Power Adjustable Range (%): 0-100
Machine Structure X/Y: Precision Rack & Pinion
Machine Structure Z: Precision Ball Screw
Travel Drive Method X-Y-Z: Sim. 3 Axes
Max Workpiece: 120.1" X 60.0"
Positioning Precision: .0019/20
Drive Motor Type: Intelligent AC Servo
Sheet-W: 60 inches
Sheet-L: 120 inches
Wattage: 4000 watts
Max Cut Mild Steel: 1.0"
Max Cut Stainless Steel: .50"
Max Cut Aluminum: .50"
Specifications
| Sheet-W | 60" | 1,524 mm |
|---|---|---|
| Sheet-L | 120" | 3,048 mm |
| Wattage | 4000 w | 4,000 W |
| X-Travel | 3,100 mm | 122.05" |
| Y-Travel | 1,550 mm | 61.024" |
| Z-Travel | 120 mm | 4.7244" |
| Control | CNC (Mitsubishi 700 Series) | CNC (Mitsubishi 700 Series) |
Equipped With
Mitsubishi 700 Series
IPG YLS 4000 Watt Fiber Source
Magnetic Breakaway Head
Two High Pressure Assist Gas Ports
5" x 10" Dual Pallet Shuttle Tables
Eco Mode
Power Control System
ThermalCare AccuChiller Unit
