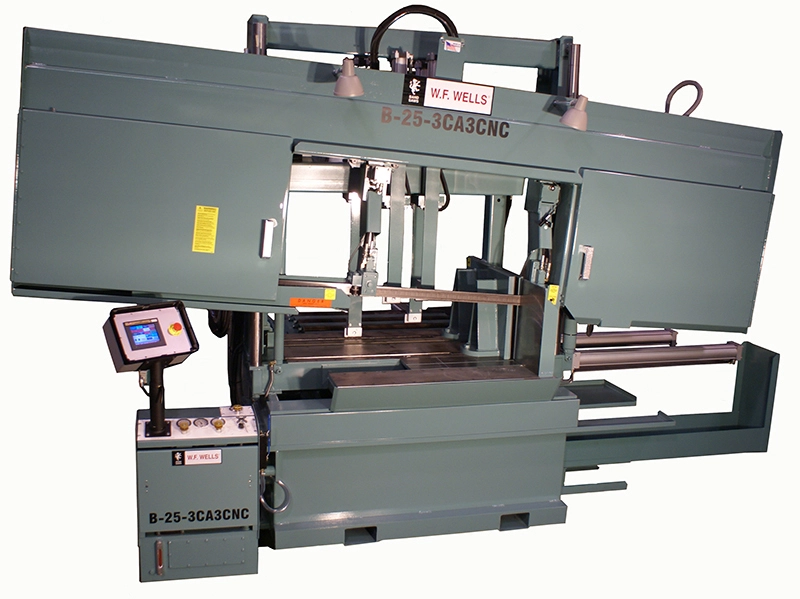

NEW 2026 W.F. WELLS B-25-3CA3-CNC

W.F. WELLS Model B-25-3CA3 CNC, (6 degree Cant) 45° 22″ High X 40″ Wide
Mr. William F. Wells (Bill) moved to Three Rivers, Michigan in 1925 and formed Wells Manufacturing, a manufacturer of vertical meat cutting saws. In 1928, Wells Manufacturing developed the horizontal metal cutting bandsaw branded the Wells Model #4. He later introduced the Wells Model #8, which is still in production today, known as the Wellsaw Model #1016. Bill Wells sold his interest in Wells Manufacturing (now recognized as Wellsaw) and in 1948 formed W.F. Wells & Sons. The first saw model, M-9, was produced in 1949 and the company continued to produce, expand and refine their product line for the next 42 years.

In May of 1991, Mr. Robert F. Boyle, the owner of Wellsaw, purchased W.F. Wells & Sons from the Wells family. The company was renamed W.F. Wells, Inc. and has continued to grow and add to its ever expanding product line.

Capacity: 22″ High x 40″ Wide (25″ Round, 24″ Square)
Weight Capacity: 15,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 2″ X .063″ X 26′-6″
Blade Guide: Spring Tensioned Carbide Blocks with Idle Roller Backup
Blade Tension: Hydraulic
Bandwheel Size: 26″
Vise: Hydraulic
Blade Drive: 15 HP, AC Vector Drive
Sawing Force: 0-1,000 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 5 HP Motor
Work Height: 34″
Outfeed Table: 12″ X 41″
Vise Jaw Height: 17″
Barfeed Projection: 0 – 36″ CNC Controlled
Projection Accuracy: +/- .002″
Shuttle Indexes: Unlimited
Remnant End: 14″
Electrics: Wired to NFPA 79 Machine Tool Standards
Includes:
Hydraulic Positioned Guide Arm
Powered Blade Brush,
Blade Break/Stall Switch
CNC Programmable Controlled with Color Touch Screen
500+ Job Selection
Automatic Kerf Compensation
Shipping Weight: 11,400
Shipping Dimensions: 170”L x 102”W x 105”H
Voltage 460-60-3

OPTIONAL FACTORY INSTALLED ACCESSORIES
Description
Additional Options for Your Saw:

Remote Console (distance from saw - 20’),,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,.............$ 4,075.00
Hydraulic Chip Conveyor, auger style..............................................................$ 6,725.00
Mist coolant, with flood also..............................................................................$ 3,225.00
Electric Powered Conveyor, 40” W x 20’ L, Output Side..................................$27,950.00
Electric Powered Conveyor, 40” W x 40’ L, Infeed synced with barfeed.......$47,150.00
Infeed Lift Roller..................................................................................................$ 7,950.00
Hydraulic Hold-down Saw Bed/Vise..................................................................$ 5,750.00

Subtotal Options..................................................................................................$102,825.00

*Prices and specifications subject to change without notice

Machine Price .......................................................................................................$147,500.00

Total Cost...............................................................................................................$250,325.00

All above prices valid for 30 days. Prices FOB Three Rivers, Michigan.
Terms: 50% with order:.........................................................................................$125,162.50
40% before shipment:..........................................................................................$100,130.00
Balance due net 30 days.......................................................................................$ 25,032.50

Current estimated delivery for complete saw is 12-16 weeks from PO placement.

CONSTRUCTION CRITERIA
The W.F. Wells Model B-25-3C is a rugged heavy duty double column machine constructed of unitized steel frame construction and featuring full servo control of the force applied to the blade, resulting in increased production rates and extended blade life. This machine is designed and built for increased production rates, utilizing the latest improvements in band saw blade technology. Hydraulic features such as vise control and automatic blade tension control provides optimum sawing rates with minimum effort by the operator. The double column construction provides extremely stable saw frame guidance and stability.

All operator controls are conveniently located for maximum visibility and ease of operation. Controls are clearly and logically marked for easy identification.

Heavy duty spring loaded carbide guides designed with optimum blade control in mind and maintain rigid control for close tolerance.

Hydraulics are used to maintain constant blade tension as well as powering the rotary blade brush and controlling the movement of the idle guide arm.

The double column machine has a tremendous advantage over "pivot type" or "hinged type" machines, because sawing pressure is precisely controlled at the same amount of pressure throughout the entire range of travel.

Due to well conceived machine construction, all hydraulic and electrical components are easily accessible for ease of maintenance.

SAFETY
The Model B-25-3C is constructed to meet all applicable requirements of the Occupational Safety and Health Act (OSHA) requirements currently in effect, as interpreted by W.F. Wells.

The Model B-25-3C is also constructed to meet all criteria of American National Standard Institute, Standard ANSI B11.10, safety requirements for the construction, care and use of metal sawing machines.

MACHINE OPERATION
The Model B-25-3C is designed with operator convenience in mind, with all controls and adjustments in a convenient location. All controls are also conveniently identified for simple operation and minimal training. Saw vises are controlled by long stroke hydraulic cylinders for quick and easy set up. Work charts are located conveniently to assist the saw operator in set up.

ELECTRICAL CONTROLS
Magnetic motor starters have overload and low-volt protection. Control circuit transformer provides low volt control. NEMA 12 enclosure, oil tight pushbuttons, and wired to NFPA 79 standards, and includes fused disconnect.

Operator manual includes JIC electrical schematic, plus full documentation on all components.
All components are carried in stock by W.F. Wells; and in addition are commonly found in stock in most electrical supply houses all around the USA.

HYDRAULIC CONTROLS
The hydraulic circuit is designed to the finest standards and installed with future maintenance and servicing in mind. The components are standard off-the-shelf items and readily available from most hydraulic supply houses. The operator manual is supplied with a JIC hydraulic schematic.

OPERATOR & PARTS MANUAL
Operator manual include the following information:
Complete specification
Floor layout and elevations drawings
Installation instructions
Safety precautions
Operator control explanations
Operating instructions
Sawing applications information
Blade selection information
Servicing and maintenance information
Spare parts drawings
Electrical schematic
Hydraulic schematic

WARRANTY
All machines manufactured by W.F. Wells are guaranteed to be free of defects in materials and workmanship under normal conditions of operation and maintenance for a period of twelve (12) months from the date of original purchase. Final determination as to whether a product is actually defective rests with W.F. Wells. Liability will be limited to the repair or replacement, at its option, of machinery or parts which prove defective within the above guarantee period and at our discretion must be returned for proper evaluation and determination of credit/replacement. Labor and freight is not included in warranty, but may be provided at the discretion of W.F. Wells.

W.F. Wells expressly excludes from this warranty any liability whatsoever for loss of use, or any indirect or consequential damages.

CANCELLATION
Any order for any special item once placed with us may be cancelled with our consent, and may be subject to a fee equal to our liquidated costs resulting from the cancellation.

DELIVERY
Delivery estimate is based on prevailing conditions and best available information on the date of this proposal.

SET UP/TRAINING
Customer is responsible for set up of saw, i.e., power, leveling, conveyors attached, and adding coolant to tank. Factory representative is responsible for training of personnel if requested by customer.

We wish to thank you for your interest in the W.F. Wells Model B-25-3C. We sincerely appreciate your business, and your order will receive our full attention.
