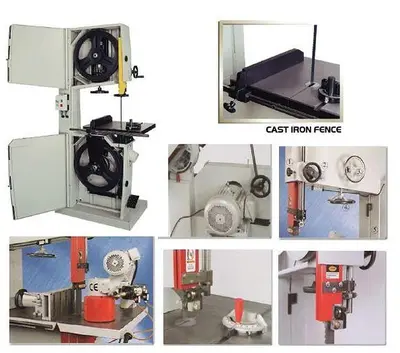

Safety foot brake. Sealed long life ball bearings. Precision ground cast iron rip fence.
Large precision ground cast iron table. Magnetic control for overload protection.
Excellent cutting power for wood or similar materials.
Turning wheels are equipped with vulcanized rubber tires and are precisely balanced for smooth and accurate cutting.
STANDARD EQUIPMENT: TEFC Motor, Magnetic Switch, One Saw Blade, Bottom Wheel Cleaning Brushes, High Precision Fence, Extension Rail, Foot Brake.
SPECIFICATIONS BS-0202
Cutting Capacity (H x W) 11-3/4" x 19-1 /4"
Table Dimensions 20-1/2" x 25"
Table Tilting 10 L / 45 R
Wheel Diameter 20"
Blade Speed 2000, 2800 RPM
Motor (230 V) 3 HP 1 PH
Saw Blade Size L x (W) 155"x( 1/4"~1-3/4")
N.W. 620 LBS
G.W. 750 LBS
