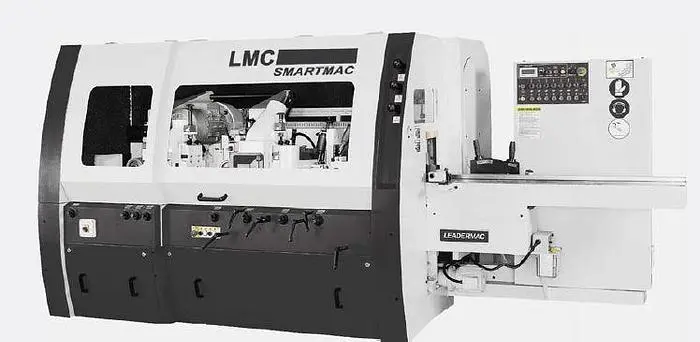

NEW LEADERMAC LMC 418 SMARTMAC 8" 4-HEAD MOULDER

Leadermac LMC 418 Smartmac 8" 4-Head Moulder

Features:

• Width material .6” to 8”

• Thickness material ¼” to 5”

• Min. length of material 8” (butt fed)

• Axial adjust. side heads: 1.6” (40 mm)

• Axial adjust. top and bottom heads: .8” (20 mm)

• Weight: 7,400 lbs

• Total amerpage 93 amps (based on 230 volt installation)

• 6000 RPM spindles each with (4) ABEC 6 precision bearings per spindle which provide
smooth surface finish results

• 78” (2m) long adjustable straightening infeed table and fence (each adjust .4”)

• Powered rise and fall to extra heavy feed support beam by 1 HP / .75 kW motor

• 5 HP variable frequency drive to 20-85 FPM

• 40 mm diameter spindles

Bottom head 10HP

Right side head 10HP

Left side head 10HP

Top head 10HP
