NEW CASTALY BS-1212BEE

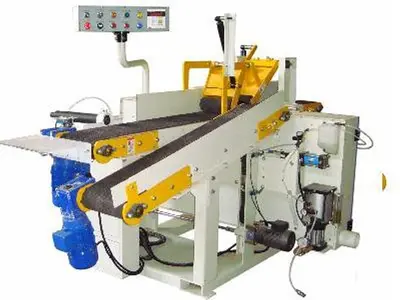

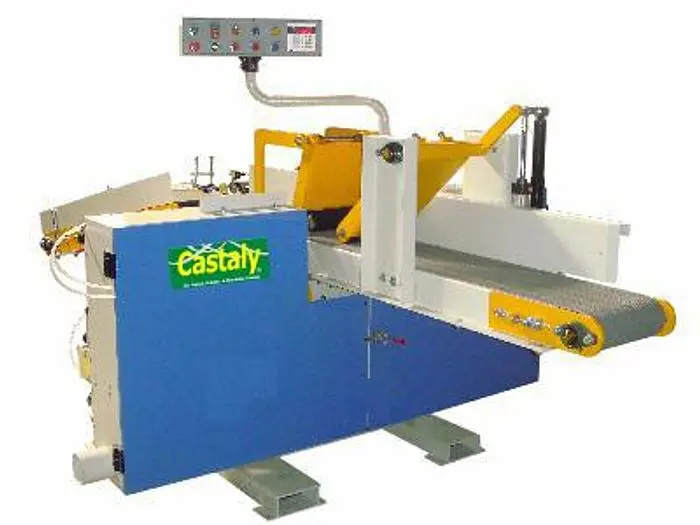

Castaly BS-1212BEE 12" X 12" Horizontal Band Resaw

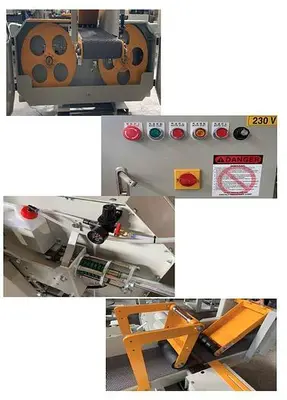

Single saw head configuration.

Manual saw wheel elevation.

Variable feed speed by electric motor drive.

Manual blade tension adjustment by a handle.

Rubber pressure roller.

Specifications BS-1212BEE

Max. Working Width 300 mm

Max. Working Height(under Pressure Roller) 300 mm

Distance From Blade to Conveyor Table 5 to 130 mm

Conveyor Belt Sizes 285 x 5470 mm

Saw Wheel Diameter 28" x 1" (W)

Feed Speed 5 - 25 m/min

Saw Blade Size 168" x 1"

Saw Wheel Motor 20 HP

Conveyor Motor 2 HP

Dust Hood Diameter 4 x 3

Conveyor 2870 x 640 x 700 mm

N. W. 1000 kgs

Packing Dimensions-Frame 2180 x 1140 x 1140 mm
