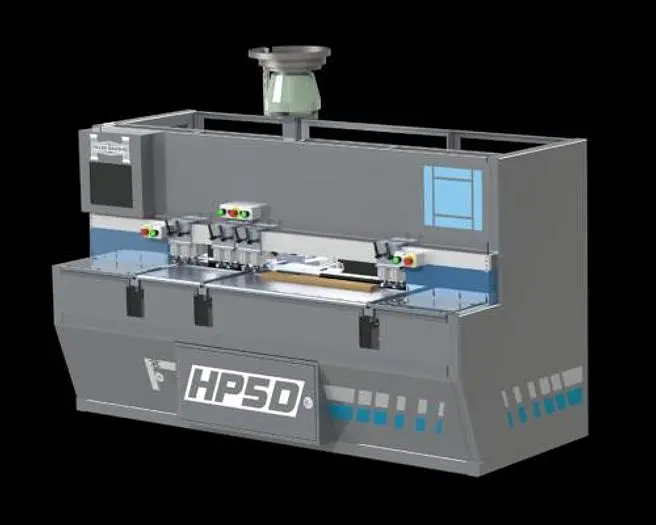

Pillar HP5D Horizontal Bore, Dowel, and Panel Groove Door Machine, 7HP, 3HP, 3 Phase
New machine!
The HP5D is designed to machine parts used in TFL (thermally fused laminate), TFM (thermally fused melamine), paper wrapped, vinyl wrapped or thermofoil doors.
The HP5D performs the following functions:
Horizontal boring
Panel grooving
Glue insertion
Dowel insertion
Standard features:
3 HP high frequency 18,000 RPM direct drive routing spindle for horizontal boring
7 HP high frequency 18,000 RPM direct drive routing spindle mounted vertically for panel grooving
X Axis CNC control for positioning
15″ industrial color touchscreen for creating and selecting programs
4 zones
4 clamp units
Panel Grooving Tooling
Digital mechanical readouts for height and depth
60″ work zone
Heavy duty 2000 lb. frame
1″ thick machined aluminum work surface covered with a 3M maintenance free non-slip surface
Standard sealed glue injecting system injects glue or water with little to no maintenance.
Small footprint to conserve floor space
“Protrusionator” dowel inserter allows for adjustment of dowel protrusion.
