NEW only
John G Weber Co. Service Area for Biesse is Wisconsin only

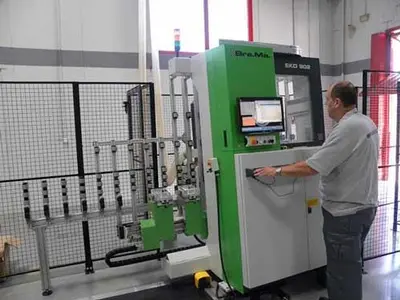

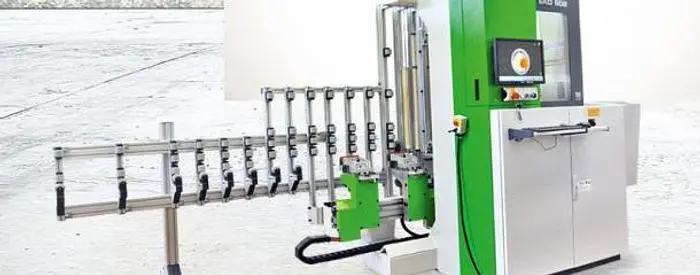

The Biesse EKO combines flexibility with high performance in a reduced space. Allows real-time management of different panel types and delicate surfaces. Features a modular concept and is able to execute all boring, routing, glue and dowel insertion operations.
CNC-controlled vertical drilling dowel inserting machine
Equipment features
Clamping device measure the thickness, in order to adjust to the drilling depth
Laser-based measuring system for recognizing the front and back edge
Compensation length tolerant through correcting the panel length in X
Tool changer with 5 positions

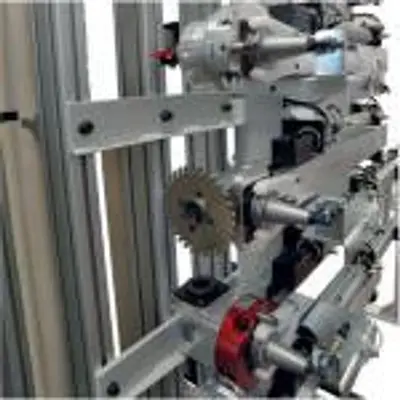

Drilling head with spindles and grooves able to be called up individually
Diameter: 120 mm
Options
Electro spindle with 4,5 kW; rotational speed 18.000 U/min
Special drilling unit for cup hinges
Technical data
Panel length: 160 - 3200 mm
Panel width: 35 - 900 mm
Panel thickness: 8 - 80 mm
Axis speed X/Y/Z: 100 / 60 / 30 m/min
