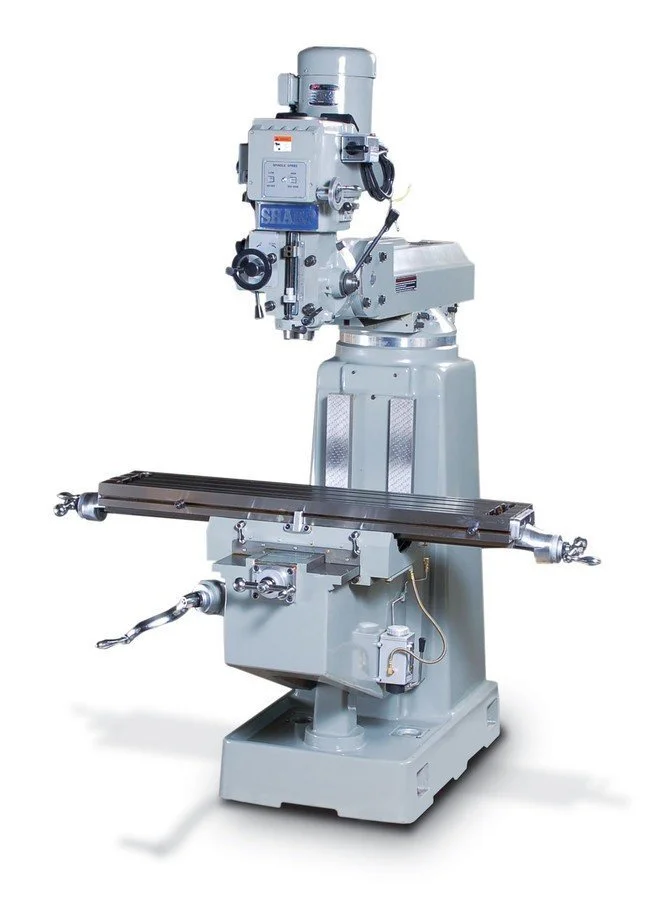

SHARP TMV Vertical Knee Mill with Vari-Speed Head, Vertical Knee Mill
Features, Function, & Benefits:
ISO 9002 Certified: Quality Up To World Industry Standards.
Meehanite Casting: Highest Grade Of Casting Possible.
A Pair Of High Out-Put Fans: Keeps Head And 3 HP Motor Cool, To Run Jobs For Extended Periods Without Damaging
The Motor, Belts And Bearing.
A Pair Of Precision Abec-7 Angular Contact Bearings To Support Spindle. The Quill Is Ground and Chromed To Fit The Housing:
This Insures A Spindle Runout Of .0002” T.I.R.
Motor Shaft And Vari drive Pulleys Are Dynamically Balanced, Then Chromed For A Flawless Fit, Ground Ribs On Inside Diameter: For Smooth Speed Changes.
Motor Shaft Has An Oil Channel In The Center That Is Fed By A Grease Fitting On The Lower End: To Keep Vari-Drive Pulley Moving Smoothly On The Shaft.
The Mill Uses A Roller Bearing For The Lower Support Of The Shaft: It Ensures Proper Loading, Support And Alignment It Also Prevents The Shaft From Being Distorted By The Tension Of The Belt: For Quiet, Accurate Operation At Any Speed For Years And Years.
One Shot Lubrication System: For Lubrication Of Ways And Lead Screws. (X,Y And Z Axis)
Hand Scraped Saddle And Knee: For Better Oil Retention. It Avoids Having Chips And Dirt Embed In The Knee And Damage The Sliding Surface.
Oil Groove Are Milled: For Maximum Lubrication On All Wear Areas.
Table And Saddle Backlash Is Controlled By Double Nut Design: Keeps Lead Screw In Contact With Bronze Nuts A All Times To Keep Backlash At .0008” Within 20”.
Table And Saddle Are Mounted With Thrust Bearings That Are Pre-Loaded:
Eliminating End Play For Precisely Controlled Lateral Movement.
Patented Knuckle Design Uses 6 T-Bolts, 3 Per Side, Securing Them From The Outside: This Method Locks The Head Securely Resulting In Better Accuracy And Performance.

SPECIFICATIONS:

✓ Table

• Working Surface 10” x 54”
• T-Slots Number and Size 3 Slots, 5/8”
• 26” Wide Saddle

✓ Capacity
• Travels (X & Y) 39” x 16.3”
• Quill Travel 5”
• Ram Travel 18.5”
• Knee Travel 15.3”
• Throat Distance 9.8” - 28.3”
• Spindle Gageline to Table Top 5.375”-16.9”

✓ Spindle
• Spindle Motor 3 HP
• Wiring Voltage 220V/440V
• Spindle Nose Taper R-8
• Spindle Variable Speed Drive 60-4,500 Rpm
• Quill diameter 3-3/8”
• Quill Feed 3 Speed (IPR) 0.0015, 0.003, 0.005
• Accuracy 0.0002” TIR
• Head Tilt (Rt. To Left) 90°
• Head Tilt (Up And Down) 45°

✓ Dimensions and Weight
• Floor Area (W x D x H) 70”x 75” x 91.78”
• Weight 3,000 Lbs.
✓
Total Power Consumptions
• 220V 3 KVA/8 amps
• 440V 3 KVA/4 amps

STANDARD EQUIPMENT:

• Manual Draw Bar
• Hard-Chromed Ways
• Front & Rear Rubber Way Covers
• One-shot Lube System
• Wired 220V or 440V. Please Specify
• Tool Kit:
Machine Manual, Half-Nut Wrench, Wrench 17m, 19m, Set of 6 Allen Wrenches, Philip
Screw Driver, Flat Head, Screw Driver, Oil Can, Grease Gun, Rear Way Cover Bracket, Pin for Indicator, and Can of Paint.

FEATURES:

• Hardened & Ground Box ways on Column & Saddle for Maximum Rigidity
• 3 HP Motor
• R-8 Spindle
• Knuckle joint using bolts & circular T-slot design; allowing head to swivel left & right, up & down
• Dual fan head cooling System
• Double-Nut Backlash Eliminator
• Internal Lubricated Vari-Disc Design
• Motor shaft end supported by bearing

OPTIONAL ACCESSORIES:
 6” “Kurt” Vise with Swivel Base (DX6 vise & D50-4-SA swivel base) 5000-2126 A $ 1,558.00
 Auto lube pump Auto Lube2 $ 1,028.00
 Right Angle Milling Attachment with Arbor ACC-10TMV-NT30 $ 2,936.00
 Right Angle Milling Attachment with Arbor ACC-10TMV-R8 $ 2,406.00
 “Sharp” Power Table Feed with Safety Handle (X-Axis) * SP-250A (see notes) $ 981.00
 X Axis Installation $ 185.00 NET
 “Sharp” Power Cross Feed with Safety Handle (Y-Axis) SP-250B $ 981.00
 Y Y-Axis installation $ 300.00 NET
 “Sharp” Power Knee Feed with Safety Handle (Z-Axis) SP-250D $ 981.00
Z Axis Installation $ 450.00 NET
* NOTES: SP-250A installation may reduce X-axis travel.
 Drill Chuck & Drill Arbor TMV-D/A $ 594.00
 6” Riser Block ACC-06 $ 1,325.00
Riser Block Installation $ 210.00 Net
 Coolant System with Chip Pan at Base (pump included) C311/TMV $ 1,028.00
 “Maxi Torque Rite” Power Draw Bar TR-100 $ 1,102.00
Factory Installation $ 215.00 Net
 R-8 Collet (Set of 11) - 1/8”-3/4” BY 1/16” ACC-R8 $ 297.00
 Clamping Kit (52 pcs/Steel Rack) CK-104 $ 286.00
 Halogen Work light WL-110V55W-L $ 297.00
 CE mark net $ 1,839.00
 380V and 575 V transformer 440T4 $ 1,230.00 Net
 UL (to meet the state of California)
components upgrade with electrical box (factory order) LMV-UL $ 4,282.00 NET
 UL compliance certificate under the State of California $ 5,008.00 NET
