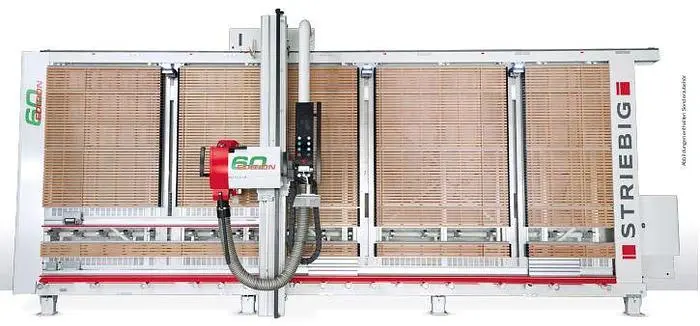

Striebig Edition 60 Panel Saw, 7.5HP, 3PH, 17' x 7' Capacity, 3" Cut Depth, X / Y Digital Measuring
7.5HP
220/18FLAmp
440/9FLAmp
3 Ph
Brake, electric soft start and insulation to 77dB
Cut Capacities: 17'4" L x 7'-5/8" H crosscut, 6' 10-5/8" Hi trim, 3-1/8" depth overall, 2-3/8" using panel lifters
Dust collection: 1000CFM min, 140mm dia. connection
Machine dimensions: 17' 10" x 8' 3" x 5' (depth free standing, 4' 5" wall-mounted)
Weight 1,650 lbs.
Very stable, all welded steel frame suitable for free-standing or wall-mount installation
Two panel lifters on right side of saw to suspend multiple panels up to 7’ x 10’ x 60mm (2-3/8”)
thick and up to 350 lbs.; allows strips to be cut and processed from bottom of panel with no
need to flip panel! Two-handed control assures safety in use. Third lifter available (see below).
Heavy-duty panel support rollers with automatic locking system
Automatic, mechanically shifting, full-wood support grid for extra dust control and support of thin, flimsy materials
Laser cut line indicator for horizontal cuts
Convenient, sturdy, center shelf with aluminum fingers, topped with reinforced plastic
DMS-Y digital measuring system for horizontal cuts with motorized fine adjustment
DMS-X digital measuring system for vertical cuts with fine adjustment and five station reference; either above the center shelf (typical) or on full-length measuring channel described below
Additional measuring channel above rollers with inch/metric scales and one standard flip stop
One pair of snap-in aluminum small parts supports for use above the rollers or above center shelf
Vertical cutting stations 40 inches on center (1 meter optional for all-metric shops)
TRK dust collection system with cable chain hose take-up; note: requires connection to a collector
300 mm (11-7/8”) HFG (hollow face) carbide saw blade
Template bar with six stops and automatic mode for setting typical horizontal cut dimensions
Operating time counter
Document holder conveniently located under control panel for cut lists, etc.
Installation and training available for this machine.
Contact us for a quotation with a list of options available.
