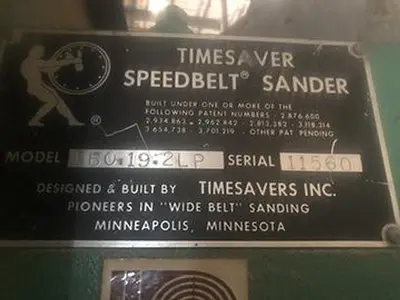

Timesaver TBO 19 2LP, 19" Capacity Abrasive Planer, (2) 50HP Motors, 3 Phase
Mfg 1982
50HP, 50HP
230V, 3PH
(2) sets of 6" infeed rolls
(2) sets of 6" outfeed rolls
Contact drums 8" smooth steel
6" dia. idler roll
Dual "Posi-Trak" sensing with manual trimming
Air pressure limits for feed system
10-40 FPM feed speed, hydraulic compensation 7.5HP
19" x 60" belt
Anti-kickback finger assembly
Top and bottom infeed rolls air-loaded
Bottom rolls driven
Rolls grooved to allow for thick and thin parts to run side by side
Max. thickness 6"
Machine footprint 6' x 10'
FBO WI
Buyer must remove
Per the owner: Machine was in good working order when removed from service. Owner downsized, put into storage. Machine set inline with Timesaver 25" machine. The TBO19.2LP was first and would rough the board to a nominal thickness with a 24 grit sanding belt, then the board would go directly into the 25 inch sander which had a 60 grit sanding belt on it to make it a finished product coming out the other end. These were very well built machines, and we had very little problems with them over the years.
