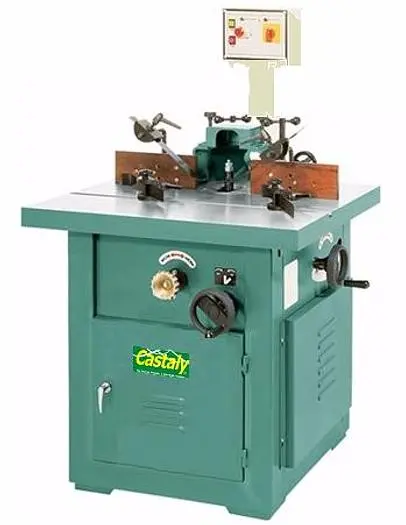

NEW CASTALY SP-202S

Castaly SP-202S 1" Sliding Table Shaper

Sliding Table for linear shape production.
Precision ground cast iron table and T-slot miter gauge slot.
Perfect alignment, rigid spindle support a power transfer system for accuracy.
Individual micro adjustments fence on both sides of spindle by hand wheels.
Large hand wheel for fast movement and lock protection.
Magnetic switch for overload protection.
Spindle travel operated by a rack and scroll gear.
Two spindle speeds for versatile cutting.
Forward and reverse switch for cutting directions.
Heavy gauge metal cabinet base.
Alloy steel spindle for durability usage.
Sealed long-life ball bearings.

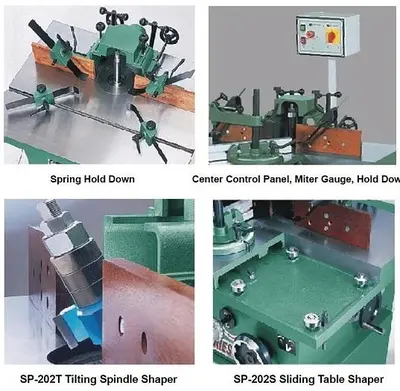

Standard equipment: full power motor, dust chute, table inset, spring hold-downs, miter gauge.

SPECIFICATION SP-202S/T
Table Dimensions 35 ½ X 28"
Spindle Speed (RPM) 3600 ~10000
Standard Spindle Dia. 1" & 3/4"
Spindle Travel 3 ½"
Spindle Under Nut (1") 5"
Spindle Tilt -5° ~ +45°
Table Insert 7"
Motor 5 HP, 3 PH
N.W. 660 LBS
G.W. 790 LBS
