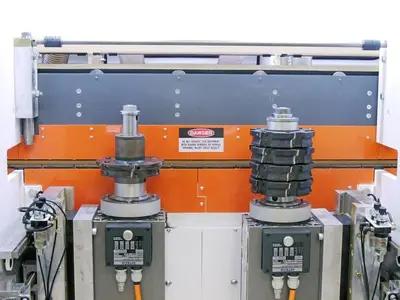

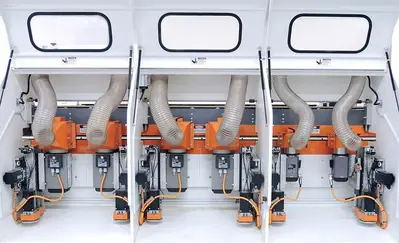

NEW VOORWOOD A2517

Voorwood A2517 Double End Tenoner, Quick Change, HSK or Stacked Tooling, Part Feeding up to 5' Long

The A2517 Double-End Tenoner is fully equipped to automatically position all necessary adjustments for each profile setup. All spindles are of the reversing type and set up to rotate with or against the direction of feed, with a jump feature on the first station. The sanding stations have reversing spindles on each side. The stations can be horizontally locked for straight shape/sand or CNC controlled to shape/sand preprogrammed contours (arches).

Accommodates 5 or more shaping and sanding stations
Configured with automatic pop-up dogs that push parts into the machine up to 60″ long
Spindles can be configured with Quick Change, HSK, or stacked tooling
Auto-indexing ability to address sanding wear
