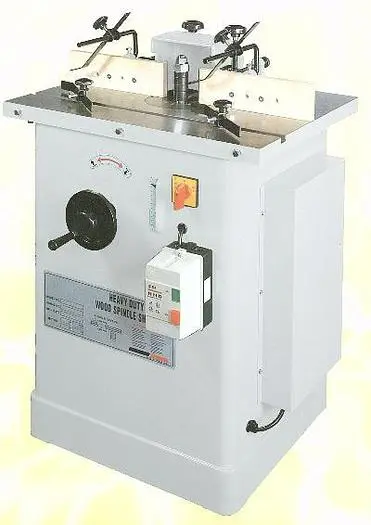

NEW LOBO / CASTALY SP-30 5HP

Lobo / Castaly SP-30 Shaper, 5HP, Three Phase, 3/4" and 1" Spindles included, 8000/10000 RPM

Precision ground cast iron table and T-slot miter gauge slot.

Perfect alignment, rigid spindle supports a power transfer system for accuracy.

Individual micro-adjustment fence on both sides of spindle with hand wheels.

Large hand wheel for fast movement and lock protection.

Magnetic switch for overload protection.

Spindle travel operated by a rack and scroll gear.

Two spindle speeds for versatile cutting.

Forward and reverse switch to change cutting directions.

Heavy gauge metal cabinet base.

Alloy steel spindle for durability during usage.

Sealed long-life ball bearings.

Standard equipment: full power motor, dust chute, table inset, spring hold-downs, miter gauge.

SPECIFICATIONS for the SP-30 5HP

Table Dimensions 28" x 30"

Spindle Speed (RPM) 8000 / 10000

Standard Spindle Dia. 1" & 3/4"

Spindle Travel 3¼"

Spindle Under Nut (1") 4"

Table Inserts 7" & 3½"

Motor 5 HP, 3 PH

N.W. 330 LBS

G.W. 460 LBS
