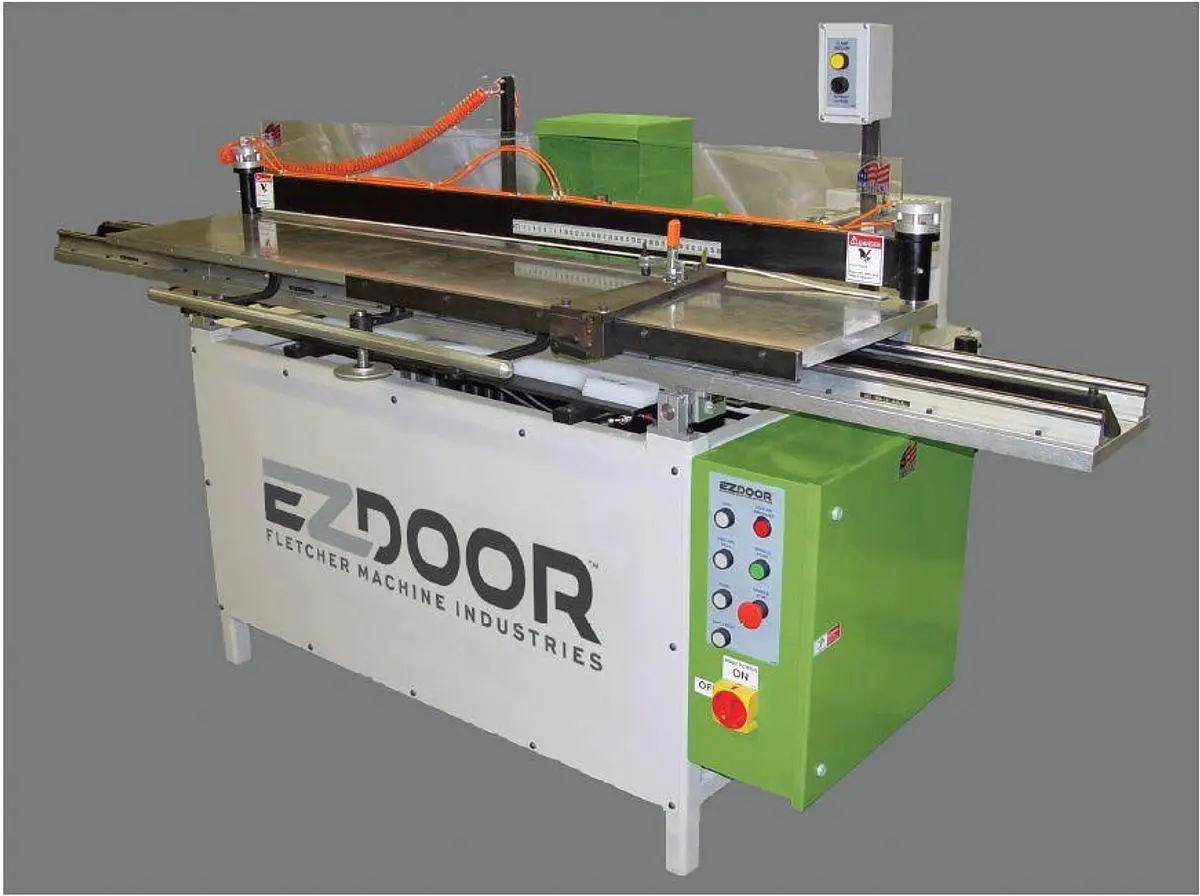

NEW FLETCHER EZDOOR

EZ Door Raised Panel Door Machine, 5 Piece Door in Minutes, 10HP, 3PH, 1 1/4" Arbor, 62" Travel Length of Table

This freestanding machine can produce an entire 5-piece door in a matter of minutes. Easy to operate, the E-Z Door has a 4-position configuration to produce raised panels, cope/stile profiles and mullions for glass doors. Cathedral doors are produced by using a quick change template system.

·      Single button selection for rail/stile, cope, panel and door edge
·      Simple and efficient 4-position spindle design
·      All key functions PLC controlled
·      Rigid lubricated spindle assembly
·      Re-circulating ball bearing slides
·      10 HP 230/460V/60HZ spindle motor
·      Pneumatic clamping fence
·      62 inch travel length standard with circulating ball bearing slides, cut rails to 59” and panels to 55”
·      Includes 4 standard cutters (shapes to be decided), others optional
·      Standard arch template set included (7/8” to 2” arches)
·      Cut mullions for glass doors
·      1 ¼” Arbor
·      CFM requirement is 392

Pricing is for the bare machine with only tooling mentioned above no other tooling / cutters or templates.
