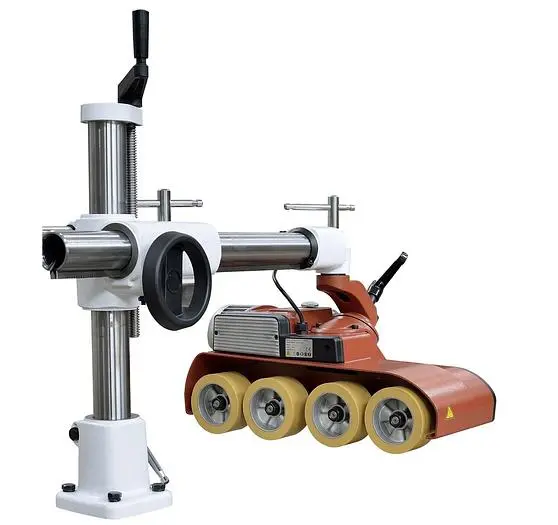

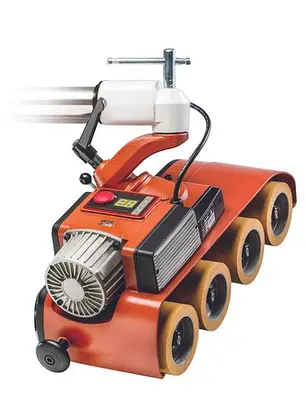

Comatic DC40 4 Wheel Power Feeder W/stand, 1 or 3 Phase, 110 to 220
Type 4 Wheel Variable Speed
Horse Power & Rotation 2/3HP (1HP AC Equivalent), 1-3 Phase, 110-220V;
Forward/Reverse - Range of Speeds 5 - 72 FPM
Roller Size ∅120 x 60 mm (∅4-3/4″ x 2-3/8″) & ∅120 x 25 mm (∅4-3/4″ x 1″)
Roller Suspension 18 mm (3/4″)
Warranty Period 2 years
Base Bolt Pattern 108 x 90mm Center to Center
DC40 Drawing
Available in 1PH 110V, 1PH 220V, and 3PH 220V.
Performance is the same so we recommend whichever setup is easiest to hook up and run.
110V draws about 4.5 amps and 220V draws about 2.25 amps.
These feeders are equipped with wing nuts for quick and easy replacement of the rollers.
*Includes standard SG13 Stand/Mount.
*Compatible with most stand/mounts. Contact us to purchase without the stand.
Shipping is included to most US locations for this item.
