Semi-automatic, fast cutting.
Auto. cutting cycle simply operated by foot switch.
Sealed long-life ball bearings.
Full 10 HP motor for powerful cutting capacity.
Precision ground cast iron table with heavy metal cabinet stands.
Easy operation for furniture, lumber, door, pallet or other manufacturing.
Clamp and guard automatically hold the lumber within cutting period and release it after cutting.
Saw blade rises from under the table and returns right after cutting for safety operation.
Magnetic control with overload protection.

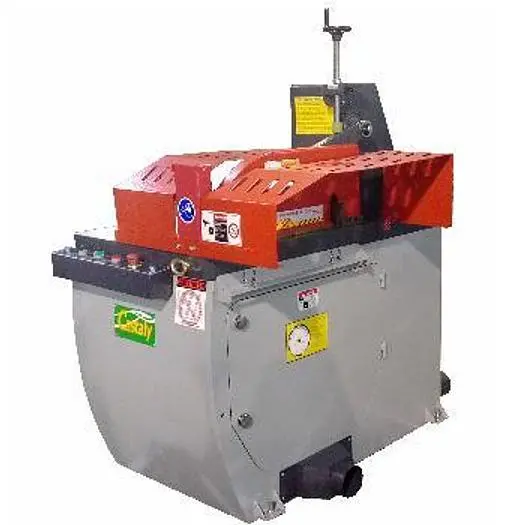

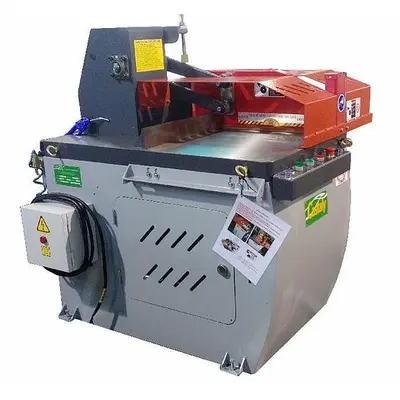

SPECIFICATIONS CS-24L
Cutting Capacity 8" x 11"
6" x 14"
4 x 16"
2" x 17"
Designed Cutting (Cycles/Min) 35
Saw Blade Diameter 18" ~ 24"
Saw Arbor 1"
Saw Blade Speed (RPM) 2400
Air Pressure 90 PSI
Dust Hood 4"
Motor 10 HP 3 PH 230V
Machine Size (W x L) 51" x 43"
N.W. 1360 LBS
G.W. 1570 LBS
