NEW CANTEK SR37DA

A sander that is not only capable but thrives in multiple-shift environments.

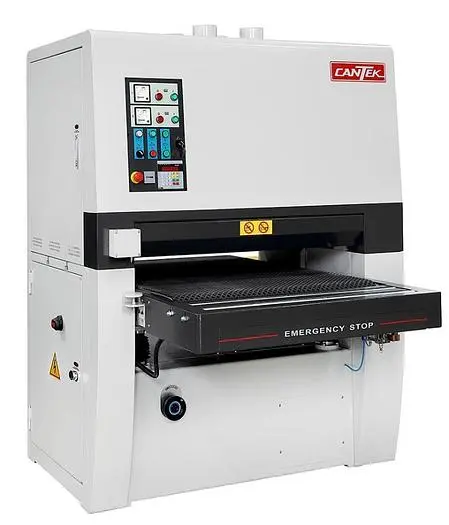

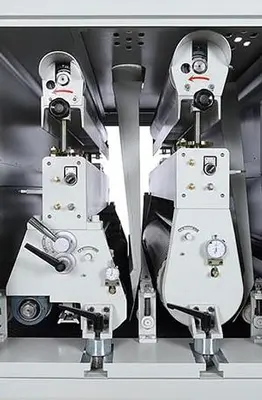

The Cantek SR37DA 37″ Two Head Widebelt Sander combines a solid machine frame with unparalleled machine features resulting in superior sanding quality & reliability. The dual sanding heads result in less passes through the sander resulting in increased efficiency and throughput. The first sanding head is a steel contact drum with superior calibration capacities and durability. The second head consists of a versatile combination head with rubber contact drum and adjustable sanding platen to perform further calibration or finish sanding with finer sanding grits. The 75″ long belts allow for longer runs between belt changes. The quick setting digital thickness control allows for accurate, automatic table adjustment for precise sanding results

Why Cantek SR37DA 37″ Widebelt Sander?

Heavy-duty construction with upgraded horsepower for production use.
Dual sanding heads for increased productivity.
The first sanding head is hard rubber for calibration results, while the second head is a combination unit with adjustable platen for calibration and finish sanding capabilities.
Accurate digital thickness control to 0.001” (0.026mm) resolution.

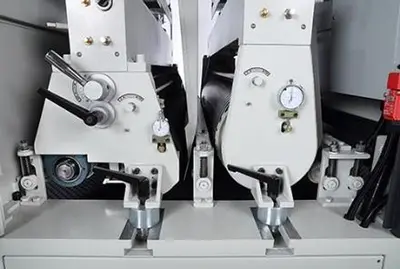

Micro sanding drum height adjustments with dial indicators.
Caliper thickness setting unit for fast setup to your workpiece.

·        Dual rubber covered pressure rollers on infeed and outfeed for consistent material hold down.

·        Automatic conveyor belt pneumatic tracking

·        Automatic caliper thickness setting option included

·        Electronic sanding belt tracking

·        Table is adjusted using four heavy duty jack screws driven by robust chain system

·        Pneumatic belt tensioning & quick release outboard support for fast belt changes

·        Extended infeed bed with two table rollers

·        Safety switches on all access doors.

·        High quality Telemecanique electrics & Comozzi pneumatics

Specifications:

37" x 75" abrasive belt

20HP main motor, first Drum head

15HP main motor, second Combination Drum and Platen head

3HP feed motor

1/2HP table raise/lower motor

36" max. sanding width

17.5" min.part length

1/8" min. material thickness

5.9" max. material thickness

12-46 FPM feed speed, variable

(4) 5" dust outlets

5kg/CM2 compressed air usage

230V, 3Ph

Included options:
·        Steel contact drum on 1st head in lieu of rubber

·        Caliper quick thickness setting device

·        CE main disconnect switch
