CANTEK | PS515 PROGRAMMABLE SHAPER
Rapid Setting with Precise Results.
The Cantek PS515 programmable shaper is designed for those looking to change profiles and setups frequently throughout the day. It is equipped with a quick change HSK spindle which allows for rapid removal and replacement of the cutting tool. The programmable control allows for rapid setting of the spindle height as the operator can simply jog to the desired height or set and recall 99 programs with 9 individual settings in each program. In addition, it comes with a quick setting fence which uses mechanical digital readouts for rapid fence position setting.
Why a Cantek PS515 Programmable Shaper?
Programmable motorized spindle height for precise setting and repeatable accuracy
Capable of storing up to 891 spindle height settings or simply jog to the desired height setting

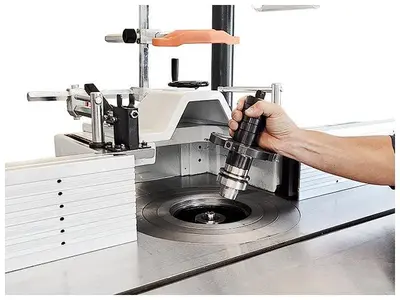

Quick change HSK spindle assembly for rapid profile changeover
Powerful 10HP spindle motor with five (5) spindle speeds

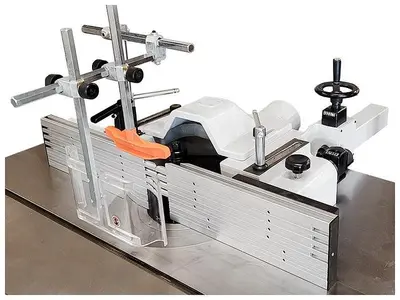

Quick setting fence assembly with mechanical digital readouts for repeatable results.
Key Advantages:
Heavy duty construction with large cast iron table which is ground and polished

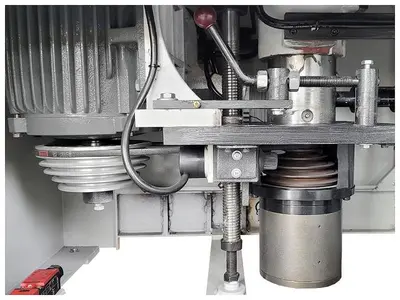

Spindle speeds of 3000/4000/6000/8000/10000 RPM which are changed through a multi-step pulley
Spindle speed is indicated by LED for safe operation
Electronic spindle brake for safer operation and quick spindle changeovers
Forward / reverse spindle direction
Comes with (1) 1 ¼” spindle assembly (additional spindles with various spindle diameters are available upon request)

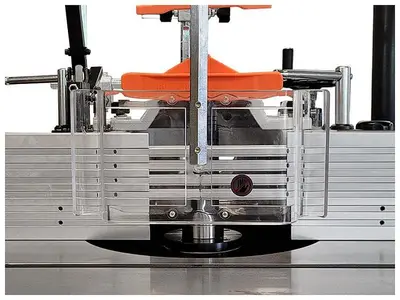

Adjustable finger type fence system to adjust around the cutterhead for optimal part support
Equipped with plug assembly for adding a CANTEK DC feeder and the table is pre-drilled to accept the feeder base
Table rings: 2 ¾” | 4 ¼” | 6” | 8” | 10” (72mm | 109mm | 154mm | 204mm | 264mm)

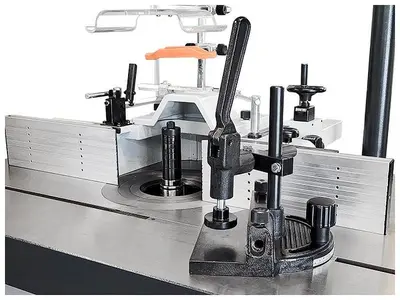

Comes with a miter gauge which runs in a guide on the table
Overhead Control Features:
Control panel is mounted on an overhead pedestal arm and is at eye level for operator convenience
Programmable Setting: 99 programs with 9 settings in each program for a total of 891 spindle settings
Manual Setting: Simply jog the spindle up and down with the height being displayed on the controller
Forward / reverse spindle direction switch
Button for releasing the spindle for changing the cutterhead
Emergency stop button
Table size 51” x 33” (1300 x 850mm)
Vertical spindle stroke 10” (250mm)
Maximum tool diameter: Below table 12.6” (320mm)
Maximum tool diameter: Above table 14.17” (360mm)
Spindle speeds (5) 3000/4000/6000/8000/10000RPM – forward/reverse
Spindle taper HSK63F
Spindle diameter 1 ¼” HSK63F with 4.72” useable spindle length (120mm)
Motor with brake 10 HP, with electrical brake system

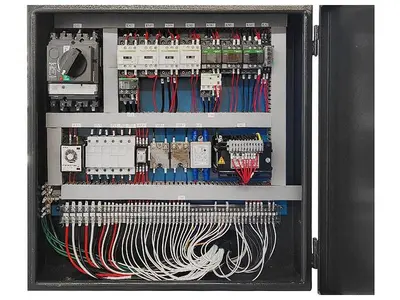

Electrics 230/3/60: 26 AMPS
Dust ports Fence: 5” | Table: 4”
Net Weight 1276 lbs.
Shipping weight 1540 lbs.
Machine dimensions 59.5” x 33.5” x 72.5”
Shipping dimensions 64” x 39” x 74”
