Cantek PCS-18M Non-Ferrous Pneumatic Cut-Off Saw, 10HP, 230V, 3PH, Blade Included, Air over Oil Speed Control
New Machine!
Cantek's newest addition to their chopsaw line-up. For cutting aluminum and other non-ferrous material.
FEATURES
Available in Right Hand & Left Hand configuration
Cutting off capacity (thickness x width): 2" x 12", 3" x 11", 4" x 10"
Powerful 10HP main motor

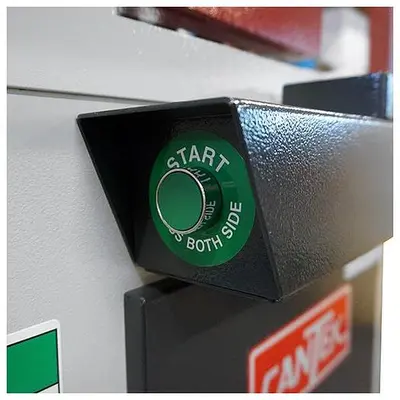

Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine
Fast cutting rate up to 45 strokes per minute.
Cast iron table surface is precision ground assuring high cutting accuracy.
Safety blade guard with adjustable fingers for added safety.
Material clamp is easily adjusted for workpiece thickness variation.
CSA magnetic switch
Door safety limit switch with 3” long screw

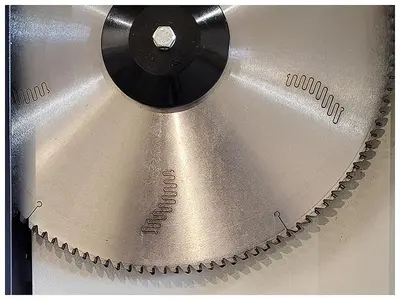

Non-ferrous cutting blade included with machine
Air over Oil for precise speed control

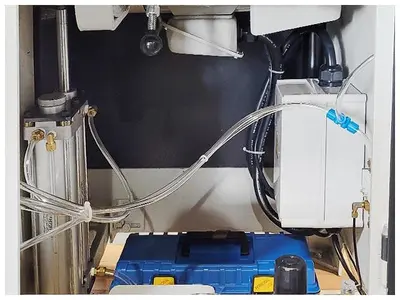

Blade misting system - applies a thin film of lubricant that prevents friction build up, maximizes saw blade productivity, and blade life
Solid chrome table - corrosion resistant

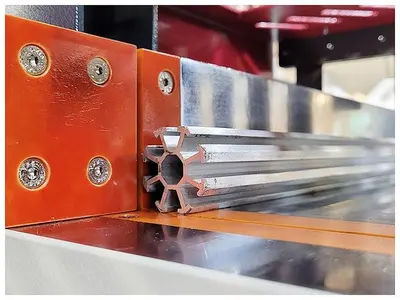

Zero cut line with T-clamp - increases precision cuts and reduces possibility of tear out
SPECIFICATIONS
Cutting capacity (thickness x width) 2" x 12", 3" x 11", 4" x 10"
Cycle speed 45 strokes/min
Cycle operation Air
Saw blade size (optional) 18"
Saw arbor diameter 1"
Saw blade speed 3600 RPM
Dust exhaust diameter Ø4" 100mm
Air consumption 9.8 CFM
Motor 10 HP
Table size 26” x 27 ½” 660 x 700 mm
Net weight 770 lbs. 350 kgs
Gross weight 902 lbs. 410 kgs
Packing dimensions (L x W x H) 37” x 33 ½” x 53.2” 940 x 850 x 1350mm
Electrics 230/3/60 = 28 Full Load amps
