NEW CANTEK CN600

Cantek CNC DOVETAILER, CN600, Variable - Dovetail Pitch, Mortise and Tenon Depth, Spindle Height, Spindle Speed, Machining Speed

Variable dovetail pitch allows for machining of any drawer height with ease
Adjustable spindle height and mortise and tenon depth
Spindle speed and machining speed is variable to ensure optimal results in a wide range of materials
Ballscrew drive on both X and Y axis

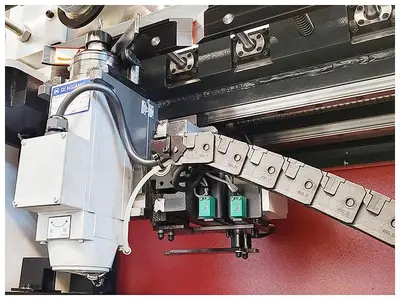

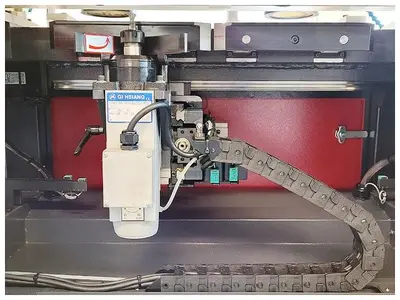

Precision linear guideways for smooth and precise movement of the spindle motor

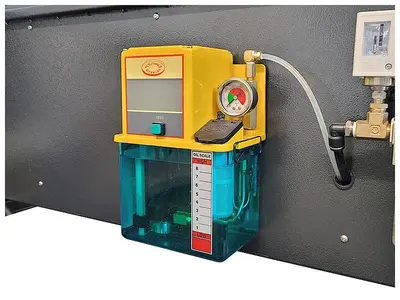

Automatic lubricator to lubricate the ballscrew and guideways

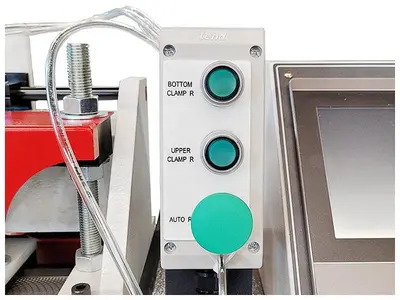

Individual pneumatic clamps capable of clamping all four pieces of the drawer at once

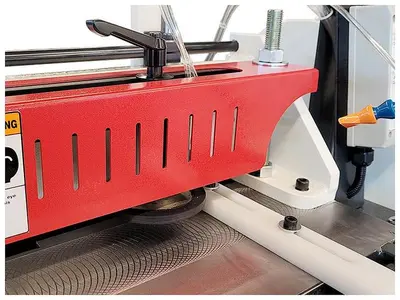

Fences are equipped with UHMW anti tear-out blocks
(3) 4” dust outlets

Maximum thickness of board: 1” (25 mm)
Minimum thickness of board: 0.315” (8 mm)
Maximum working width: 23.6” (600 mm)
Dovetail spacing: Variable
Spindle speed: 20000 R.P.M
Spindle motor: 2 HP
Total motor horsepower: 4 HP
Height of table: 33.5” (850 mm)
Dust hood outlet diameter: ø4″ x 3
Working air pressure: 80 PSI (6 kg/cm²)
Machine dimensions (LxWxH): 59” x 33” x 52” (1500x840x1300 mm)
Packing dimensions (LxWxH): 63” x 37” x 56” (1600x940x1400 mm)
Machine weight: 1540 lbs (700 kgs)
Shipping weight: 1584 lbs (720 kgs)
