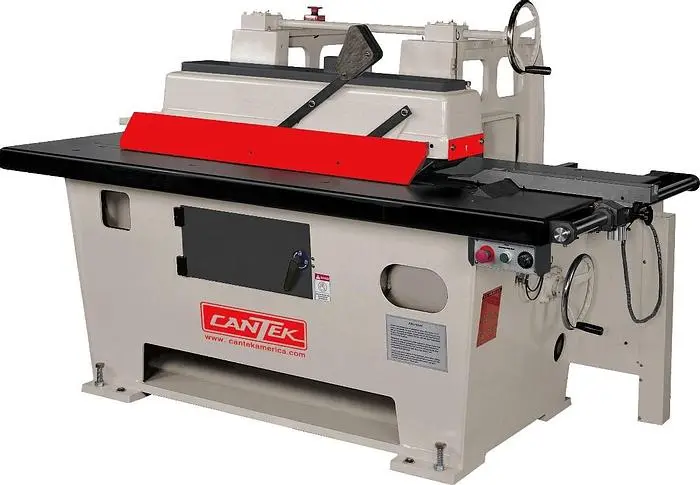

Cantek R-18 Heavy-Duty Straight Line Rip Saw, Bottom Blade, 20HP Main Motor, 12' Glue Joint Accurate
· The advantage of cutting from below on thick material is the gullet of the sawblade projects above the stock to clear the shavings halfway through the cut providing for superior finish results and extended blade life
· Bottom cutting forces the material down on to the chain surface providing for safe operation
· Extra heavy-duty machine made of thick welded steel and cast iron
· Guaranteed glue joint ripping from 1’ to 12’
· Split chain – double track with HRC60 Rockwell Hardened Guideways
· 8 hold down rolls and 41” long chain above the table ensures precision straight-line ripping
· Automatic chain and track lubrication system ensures long life of the chain & track assembly
· Saw arbor height adjustable
· Saw arbor brake included
· Safety interlock on access door
· Anti-kickback fingers top and bottom
· Stock Machine Electrics 460/3/60 to UL/CSA Standards (Other voltages available on request)
Standard Build of Machine:
· 20HP main saw motor - direct drive
· 3HP feed motor
· Outside side safety guard, rear pressure device
· Bottom row of anti-kickback fingers pneumatically activated
· Pneumatic locking floating fence system max range 24”
· 14” Blade included, 18" blade capacity
SPECIFICATIONS:
Minimum length 6” 150mm
Maximum sawblade diameter 18” 455mm
Sawblade included with machine 14” 355mm, 14mm pin holes @ 65mm centers
Sawblade bore 2” 50.8mm
Main motor 20 HP
Feed motor 3 HP
Feed speed (variable) 42~164 FPM 13-50 m/min
Saw arbor brake system Standard
Number of pressure rolls 8 rolls
Distance from saw blade to column 26” 660mm
Table dimensions 78 ¾” x 40” 2000 x 1015mm
Table height from floor 33.46” 850mm
Table width to left of blade 16.73” 425mm
Table width to right of blade 23.23” 590mm
Dust ports Top: 4”; Bottom: 6”
CFM Required 1400 CFM
Machine dimensions (LxWxH) 91” x 66” x 53” 2299x1678x1343mm
Machine weight 4400 lbs 2000 kgs
Shipping dimensions (LxWxH) 89” x 66” x 65” 2240x1670x1650mm
Shipping weight 4740 lbs 2150 kgs
Electrics 460/3/60, 32 Amps Full Load
