NEW CANTEK PC100

Cantek PC100 Pocket Cutter, 6 Degree Design, 2 Second Cycle Time, 2HP, 110V, 1PH

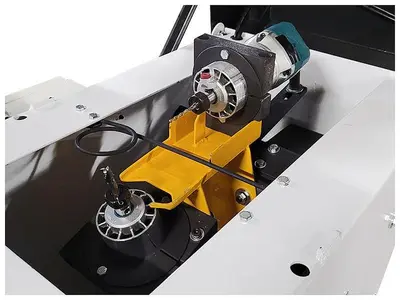

The Cantek PC100 Production Pocket Cutter allows for fast and efficient creation of strong, stable pocket joints. The machining cycle is actuated using a convenient foot pedal which actuates a pneumatic clamp to hold the material firmly in place, then mills a 6-degree low-angle pocket, and finally drills a pilot hole. All of this happens in a fast cycle time of just 1.5 to 2 seconds! The sturdy table can be easily lifted to provide access to the router and drill for fast and convenient tool changes. The robust structure & convenient design ensure the PC100 pocket cutting machine can thrive in production environment.

• Automated operation with a simple to use foot pedal
• Drills a pilot hole with a simple tap of the foot pedal in just 2 seconds
• Sturdy machine design for continuous operation
• Quick bit change feature
• 6-degree pocket hole design reduces the need for clamping
• Pneumatic clamp holds work piece firmly in place
• Built-in 4” dust port
• Adjustable clear guard for safe operation Specifications.

Total HP 1HP x 2 (710 W x 2)
Table size 15” x 31”
Electrical 110V / 1 Phase / 60 Hz | 13 Amps
Table height 35”
Machine dimensions (LxWxH) 33” x 32” x 46”
Weight 205 lbs
Shipping dimensions 33” x 24.4” x 47"
