NEW CANTEK JEN-60

Cantek JEN-60 Drawer Notcher, 3HP, 230V or 460V, 3PH, 2.25" x .5" Notching Dimensions

New machine!

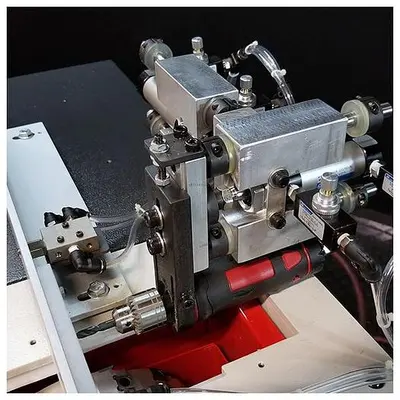

Designed to notch and drill the underside of a drawer box for mounting undermount drawer slides

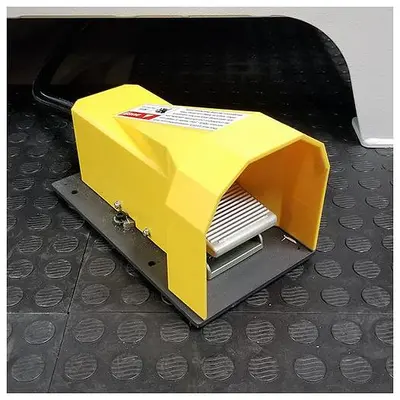

Foot pedal operates pneumatic cutter & drill stroke

Adjustable cutter stroke and drill speed

Drill positions automatically for left and right drawer notches by activating a switch in the fence

Machine will not cycle unless a drawer is against the switch

Insert knife cutter head with solid carbide inserts for optimum finish results and long tool life

Capable of notching up to 220 drawer boxes per hour (both left and right)

3HP, 230V 3PH

2-1/4" x0.5" notch dimensions

10" cutter diameter

1/4" drill diameter

Table size 49" x 22"

4" dust port (670 CFM required)

90-100 PSI compressed air required

Machine dimensions: 48" x 37-3/4" x 39-3/4"

Weight: 506lbs.

Includes 1/4" solid carbide drill bit

Also includes 10" x 2-1/4" insert cutter head with 70 inserts
