NEW CANTEK JDT75

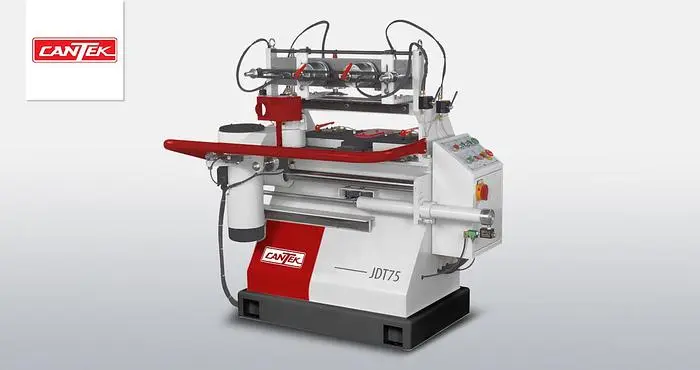

CANTEK JDT75 Automatic Dovetailer, 2HP, 230V, 3PH, 3 Feed Speeds

NEW

Working length: 7.87" - 59"

Working width: 2.36" - 16.93"

Vertical material thickness: 0.275" - 2.36"

Horizontal thickness: 0.394" - 1.18"

Fixed pitch: 1"

Spindle Speed: 21,500 RPM

Spindle diameter shank: 0.472"

Spindle motor: 2HP

Feed motor: 2HP

230V, 3PH

Feed speeds: 16, 22, 31 cycles/min

Net weight: 990 lbs.

Shipping weight: 1210 lbs.

Shipping dimensions: 55.12” x 34.65” x 55.12”

21,500 RPM spindle rotation for an extremely fine finish on dovetail joints

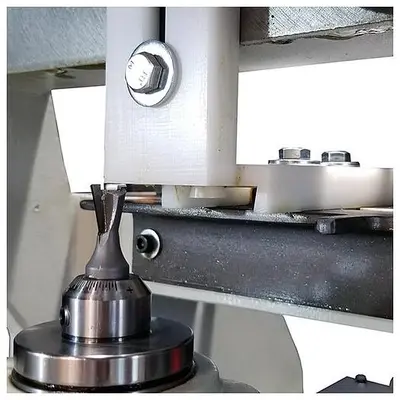

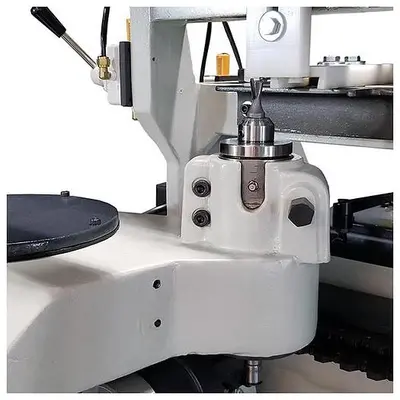

High RPM spindle allows for precision machining of plywood & solid drawer sides

Independent adjustment of both the tenon and the mortise depth for precise fitting of dovetail joints

Dust hood for milling cutter

Safety rail in front of spindle motor

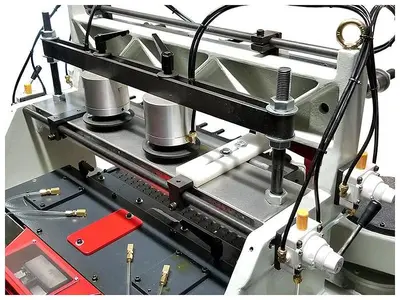

High quality pneumatics for smooth feeding, resulting in quality cutting

Cast iron base to ensure vibration free cutting

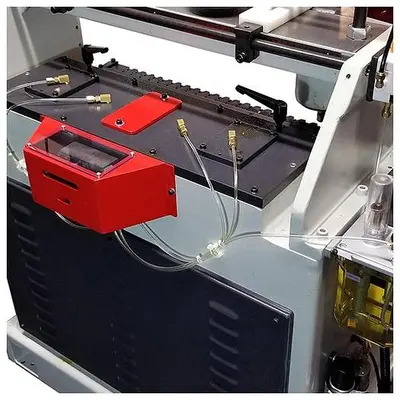

Automatic lubrication system to spindle stroke

3 cycle speeds for best finish results
